Toe Link: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the wheel and tire. Refer to: Wheel and Tire .
Raise the suspension to curb height. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

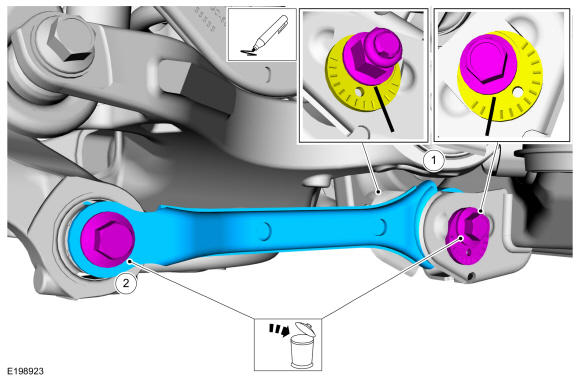

1. NOTE: Index mark the cam adjusters for reference during installation.

  Remove and discard the toe link inboard cam bolt and nut.
2. Remove and discard the toe link outboard bolt and remove the toe link.

Courtesy of FORD MOTOR COMPANY
