Rear Shock Absorber: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the wheel and tire. Refer to: Wheel and Tire .
Support the rear suspension using an axle stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

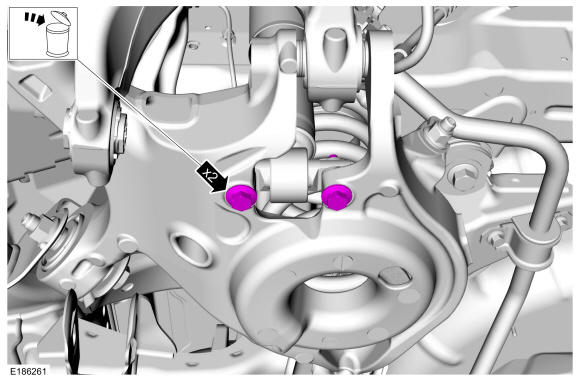

Remove and discard the rear shock absorber lower bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

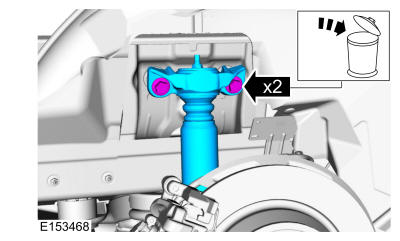

Remove and discard the rear shock absorber upper bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the rear shock absorber rod nut cap.

Courtesy of FORD MOTOR COMPANY

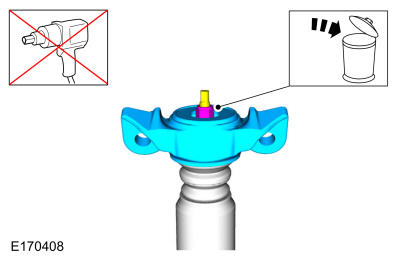

NOTE: Do not use power tools to remove the nut.

NOTE: This step is only necessary when installing a new component.

NOTE: Use the hex-holding feature to prevent the shock absorber rod from turning while removing or installing the shock absorber rod nut.

Remove and discard the rear shock absorber rod nut.

Courtesy of FORD MOTOR COMPANY
