Rear Shock Absorber: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

NOTE: Use the hex-holding feature to prevent the shock absorber rod from turning while removing or installing the shock absorber rod nut.

Install the new rear shock absorber rod nut.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: If equipped.

Install the rear shock absorber rod nut cap.

Courtesy of FORD MOTOR COMPANY

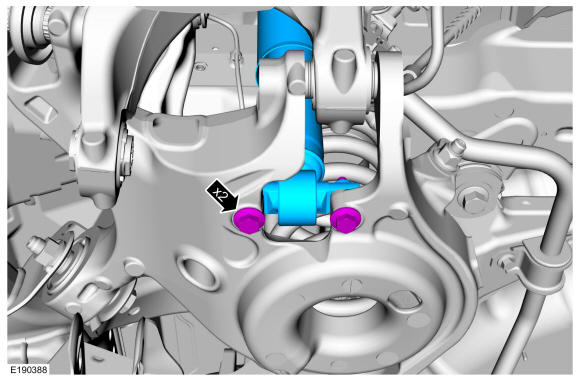

Install the rear shock absorber and install the new rear shock absorber lower bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

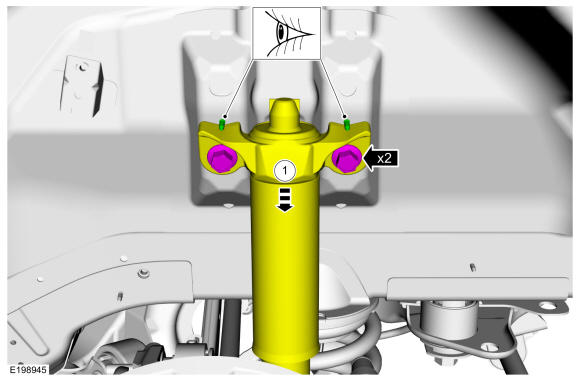

1. Compress the rear shock absorber and align the rear shock absorber upper mount under the body alignment pins.
2. Install the new rear shock absorber upper bolts.
  Torque: 76 lb.ft (103 Nm)
Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
