Lower Arm Vertical Link: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

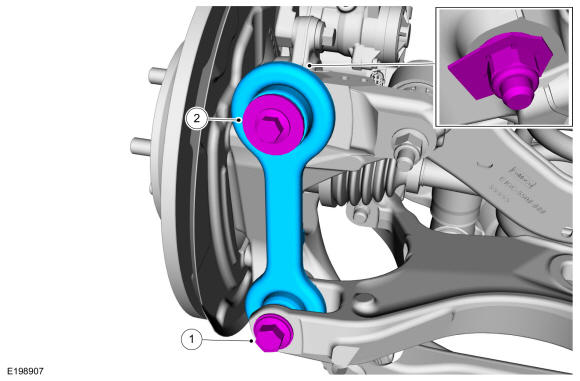

- Install the lower arm vertical link and install the new lower arm vertical link lower bolt.
Torque: 129 lb.ft (175 Nm)
- Install the new lower arm vertical link upper bolt and nut.
Torque: 76 lb.ft (103 Nm)
- Install the lower arm vertical link and install the new lower arm vertical link lower bolt.
- Install the wheel and tire. Refer to: Wheel and Tire .
