Wheel Studs: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .

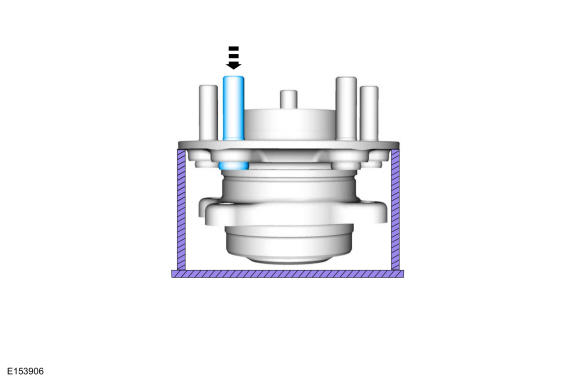

  2. Press the wheel stud from the wheel bearing and wheel hub flange. Use the General Equipment: Hydraulic Press
    GFD277072Courtesy of FORD MOTOR COMPANY

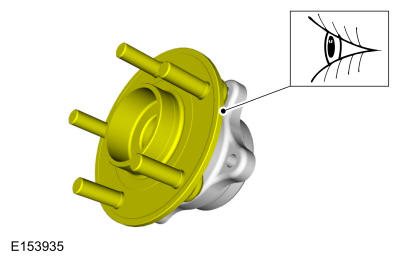

  3. Inspect the wheel bearing and wheel hub flange for corrosion or damage. Replace as necessary.
GFD277073Courtesy of FORD MOTOR COMPANY
