Wheel Studs: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-

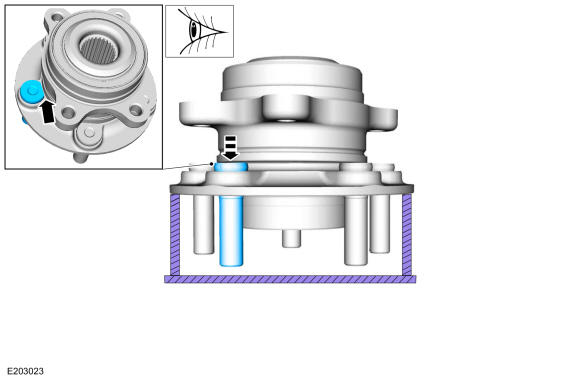

NOTE: The flat side of the wheel stud head must be facing the wheel bearing.
Press the wheel stud into the wheel bearing and wheel hub flange until fully seated. Use the General Equipment: Hydraulic Press
- Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .
