Wheel Knuckle: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

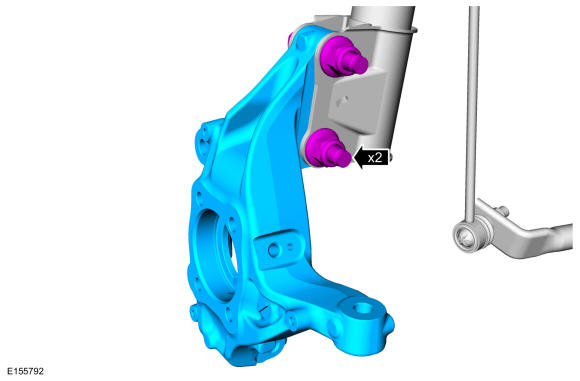

- Install the wheel knuckle and install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.
Torque: 173 lb.ft (235 Nm)

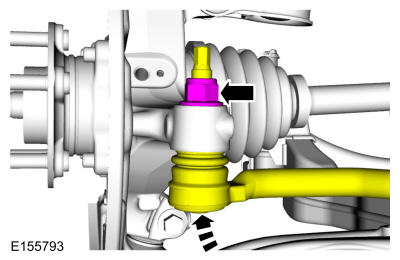

- Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.
Torque: 111 lb.ft (150 Nm)
- Install the brake disc shield and the brake disc shield retainers.
Torque: 106 lb.in (12 Nm)

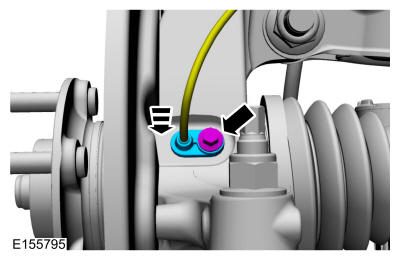

- Position the wheel speed sensor and install the wheel speed sensor bolt.
Torque: 80 lb.in (9 Nm)
- Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .
- Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
