Front Strut and Spring Assembly: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

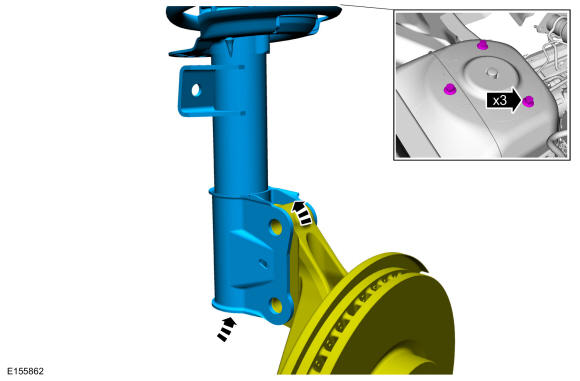

- Position the front strut and spring assembly and install the new front strut and spring assembly upper bolts.
Torque: 26 lb.ft (35 Nm)
- Install the cowl panel. Refer to: Cowl Panel .

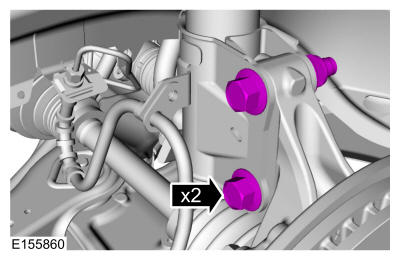

- Install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.
Torque: 173 lb.ft (235 Nm)

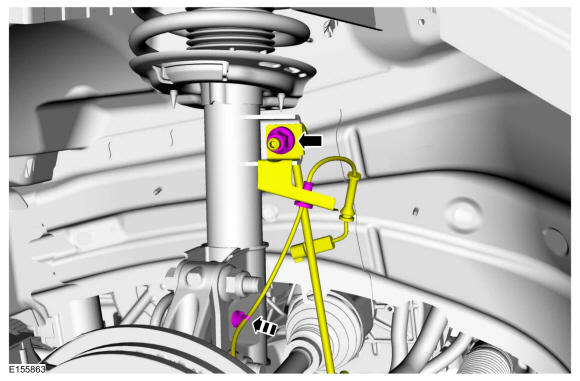

- Position the front stabilizer bar link and install the new front stabilizer bar link upper nut. Position and clip the wheel speed sensor harness.
Torque: 85 lb.ft (115 Nm)
- Position the brake hose and install the brake hose bracket bolt.
Torque: 159 lb.in (18 Nm)
- Install the wheel and tire. Refer to: Wheel and Tire .
- Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
