Front Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the bushings may occur.

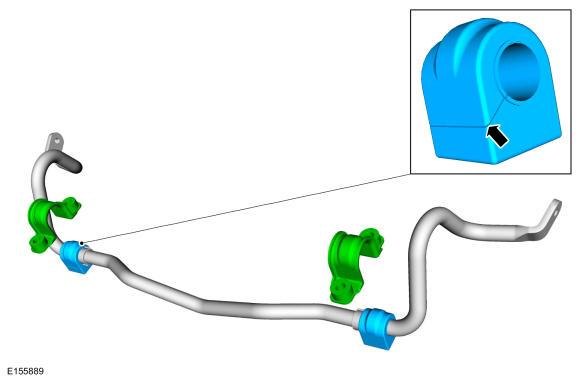

NOTE: Stabilizer bar bushings must be installed with slits facing the rear of the vehicle.

If necessary. Replace the front stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY

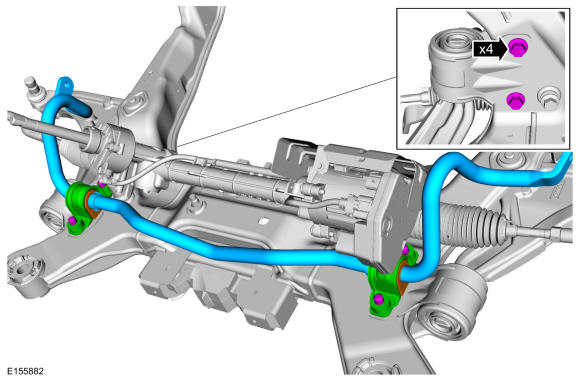

Install the new front stabilizer bar bracket bolts.
Torque: 122 lb.ft (165 Nm)

Courtesy of FORD MOTOR COMPANY
Install the front subframe. Refer to: Front Subframe .
