Ride Height Measurement

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

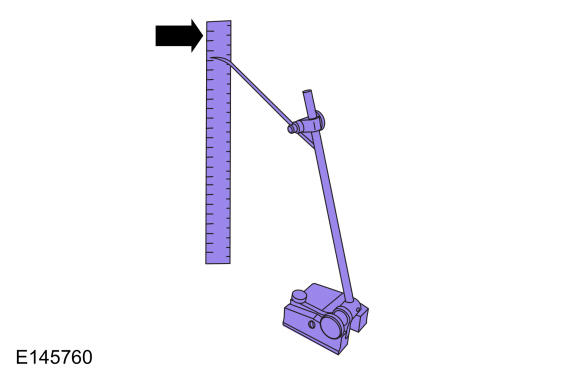

Surface Gauge

Check

Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

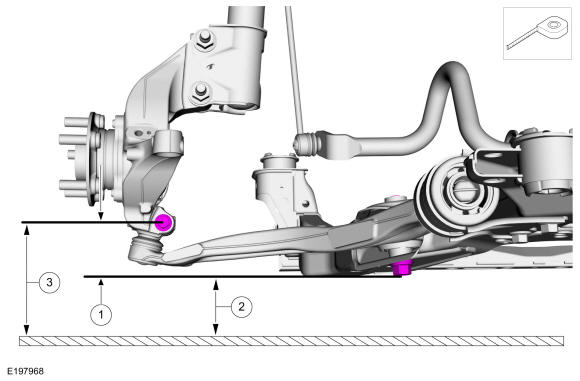

1. Ride height = 3-2
2. Measure the distance between the flat level surface and the center of the lower arm forward bolt (measurement 2)
3. Measure the distance between the flat level surface and the center of the ball joint pinch bolt (measurement 3) Use the General Equipment: Surface Gauge
Courtesy of FORD MOTOR COMPANY
With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2) and (measurement 3). Use the General Equipment: Surface Gauge

Courtesy of FORD MOTOR COMPANY
Subtract measurement 2 from measurement 3 to obtain the front ride height.
Ride Height Measurement - Rear

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

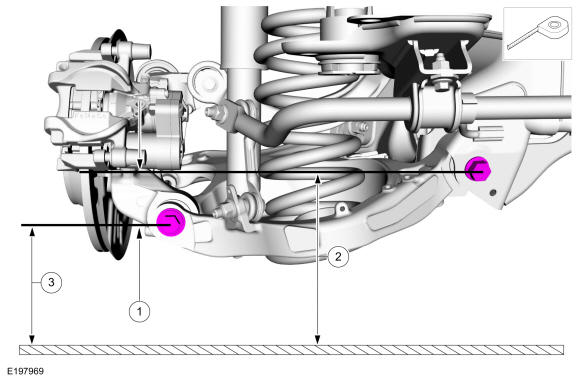

1. Ride height = 3-2
2. Measurement 2
3. Measurement 3 Use the General Equipment: Surface Gauge
Courtesy of FORD MOTOR COMPANY
Measure the distance between the flat level surface and the center of the rearward lower arm-to-frame bolt (measurement 2).
Measure the distance between the flat level surface and the center of the lower arm-to-knuckle bolt (measurement 3).
Subtract measurement 2 from measurement 3 to obtain the rear ride height.
