Section 131 (ENGINE - 2.0L ECOBOOST (184kW/250PS) - MI4): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

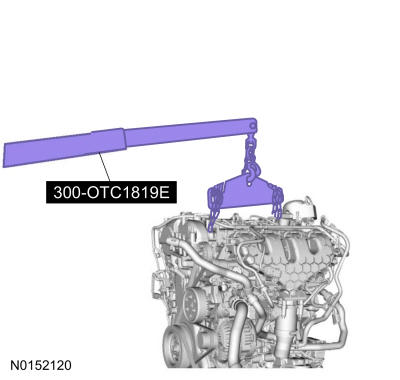

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine

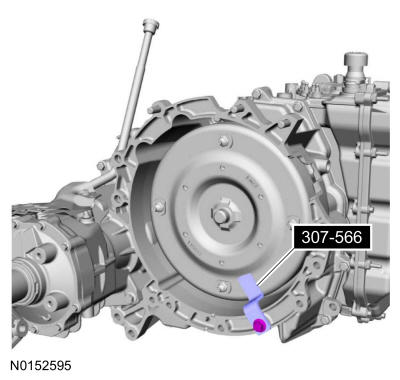

Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Courtesy of FORD MOTOR COMPANY	307-569 Disconnect Tool TOC Line (1/2) TKIT-2006U-F/FM TKIT-2006U-FLM/LM TKIT-2006U-ROW1 TKIT-2006U-ROW2
Strap Wrench
Magnetic Socket
Adjustable Mounting Arm
Oil Drain Equipment
Cable Ties
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

2WD/4WD

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
3. Using a holding device, hold the steering wheel in the straight-ahead position.

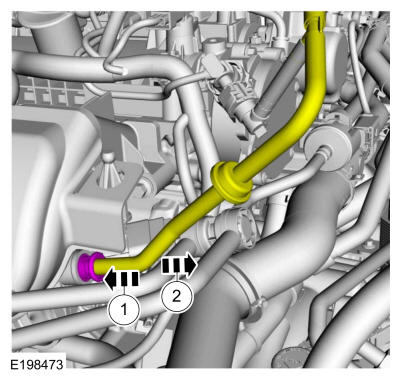

   Courtesy of FORD MOTOR COMPANY

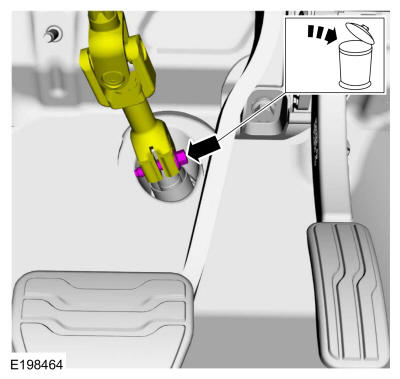

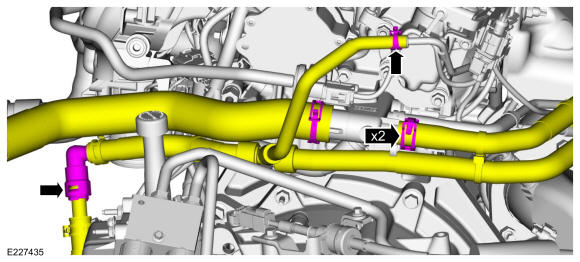

4. • Remove the bolt and discard.

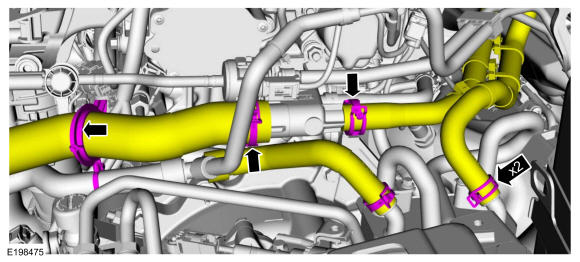

   • Position steering column shaft aside.

   Courtesy of FORD MOTOR COMPANY

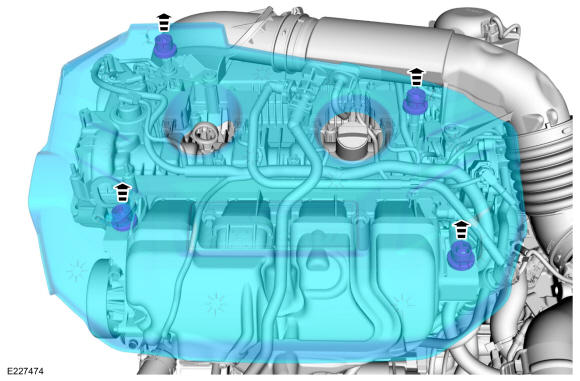

5. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
   2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

6. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
7. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
8. Remove the following items:
   1. Refer to: Degas Bottle .
   2. Refer to: Air Cleaner Outlet Pipe .
   3. Refer to: Air Cleaner .
   4. Refer to: Battery Tray .

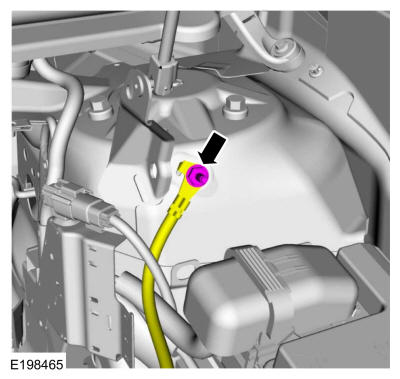

9. Remove the ground cable stud bolt.

   Courtesy of FORD MOTOR COMPANY

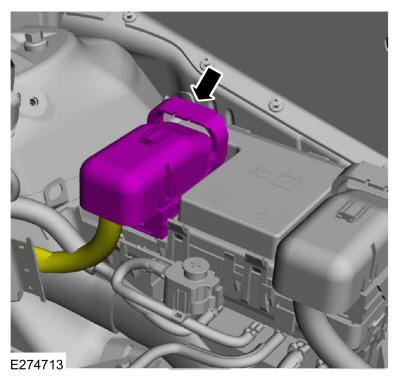

10. Disconnect the junction box electrical connector.

    Courtesy of FORD MOTOR COMPANY

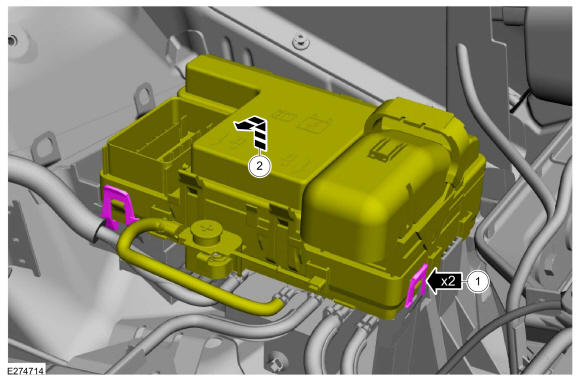

11. 1. Release the tabs.
    2. Lift and position top part of junction box aside.

    Courtesy of FORD MOTOR COMPANY

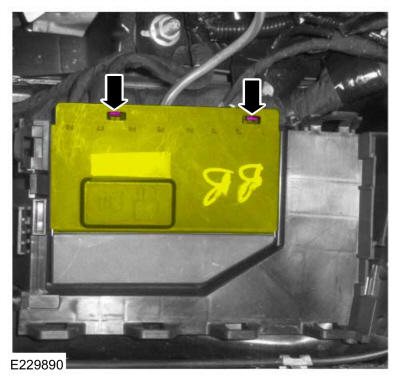

12. Release the tabs and open the cover.

    Courtesy of FORD MOTOR COMPANY

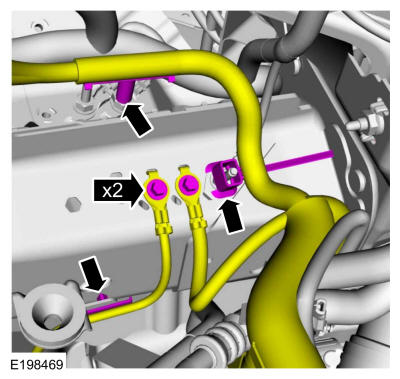

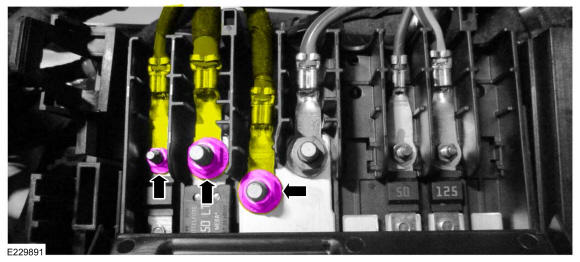

13. Remove the nuts and disconnect the electrical wiring harness cables.

    Courtesy of FORD MOTOR COMPANY

14. Remove the bolts and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

15. Detach wire harness retainers from the engine mount and valve cover stud bolt.

    Courtesy of FORD MOTOR COMPANY

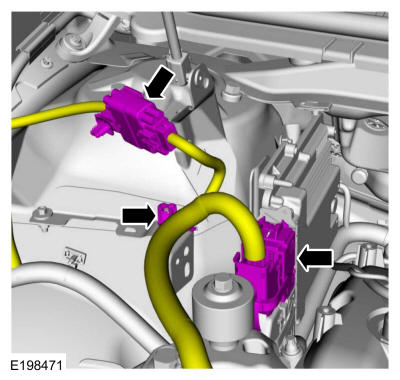

16. • Disconnect the engine harness electrical connector and retainer.
    • Disconnect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

17. • Detach the coolant tube return hose retainer.
    • Disconnect the lower radiator hose from the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

18. Disconnect the electrical connector, wiring harness retainer and remove the crankcase vent tube.

    Courtesy of FORD MOTOR COMPANY

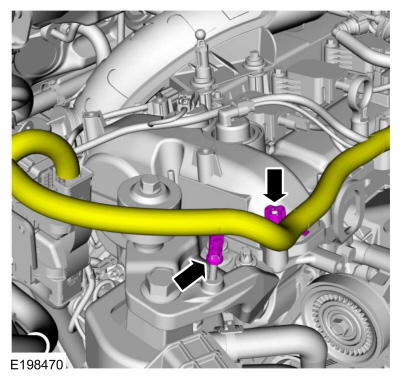

19. 1. Push the intake manifold retainer in.
    2. Remove and position the brake vacuum tube aside.

    Courtesy of FORD MOTOR COMPANY

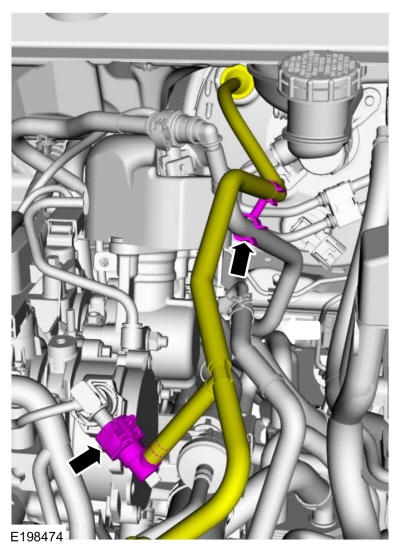

20. Disconnect the vacuum tube at the brake vacuum pump and retainer.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Vehicles without auxiliary heater.
    • Vehicles without auxiliary heater, disconnect the coolant hose quick connect coupling.
    • Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Vehicles with auxiliary heater.
    • Vehicles with auxiliary heater, detach the upper radiator hose retainer.
    • Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

23. Disconnect the shift cable, remove the bolts and position aside.

    Courtesy of FORD MOTOR COMPANY

24. Remove the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

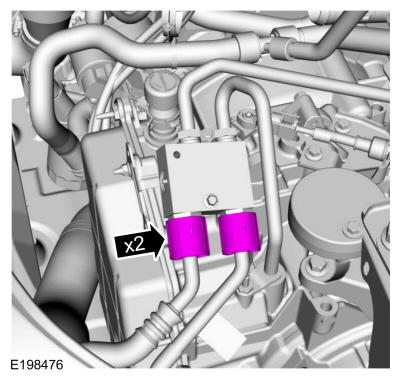

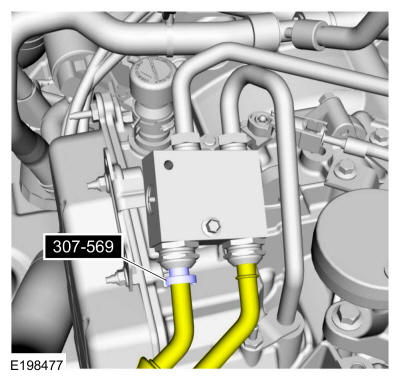

25. Using the special tool, disconnect the transmission fluid cooler tubes from the transmission fluid cooler thermal bypass valve. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

26. Disconnect the fuel tube and EVAP canister purge valve quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

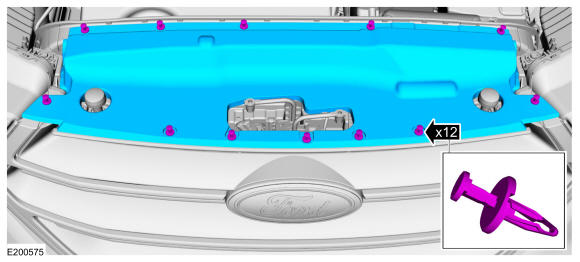

27. Remove the retainers and the upper air deflector.

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.
    1. Remove the upper cooling module support brackets.
    2. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

29. Remove the front wheels and tires. Refer to: Wheel and Tire .

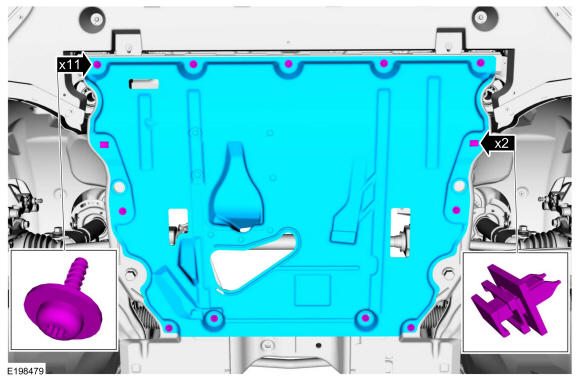

30. Remove the retainers and the underbody shield.

    Courtesy of FORD MOTOR COMPANY

31. Remove the retainers and the underbody shield.

    Courtesy of FORD MOTOR COMPANY

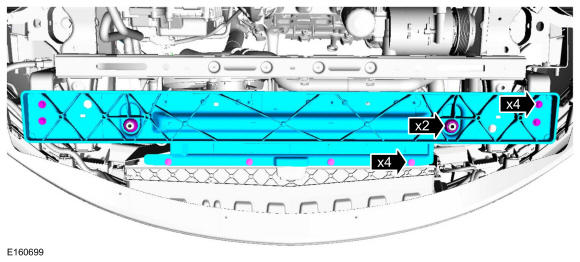

32. Remove the retainers and the front underbody shield.

    Courtesy of FORD MOTOR COMPANY

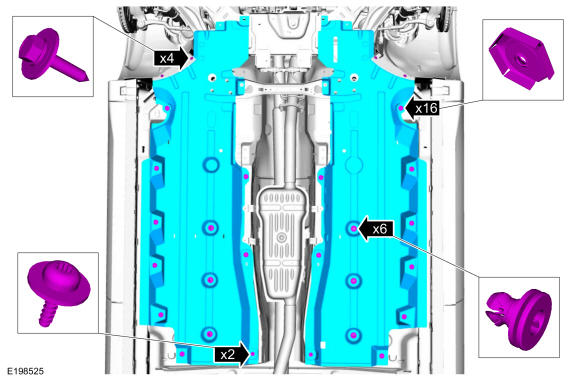

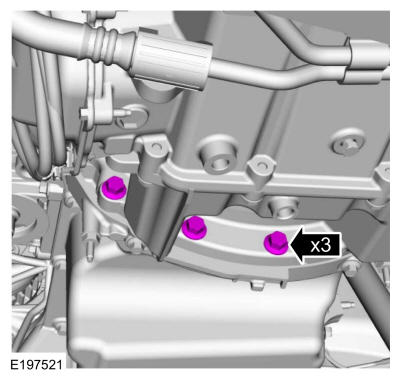

33. Remove the retainers and the underbody shields.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

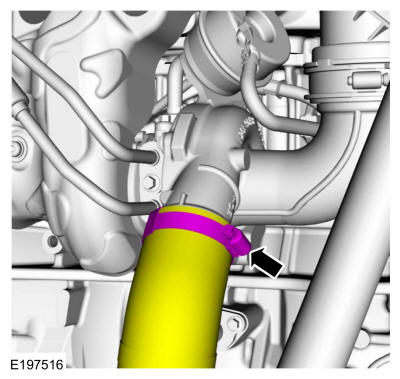

    Loosen the clamp and position the CAC tube aside.

    Courtesy of FORD MOTOR COMPANY

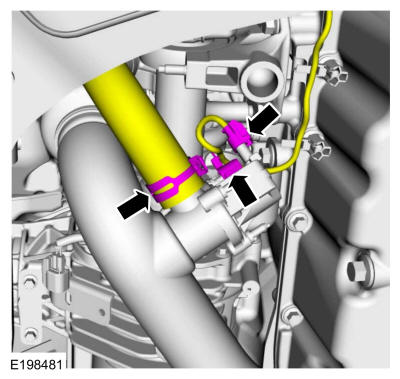

35. Disconnect the CAC hose, electrical connector and the wire retainer. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

36. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

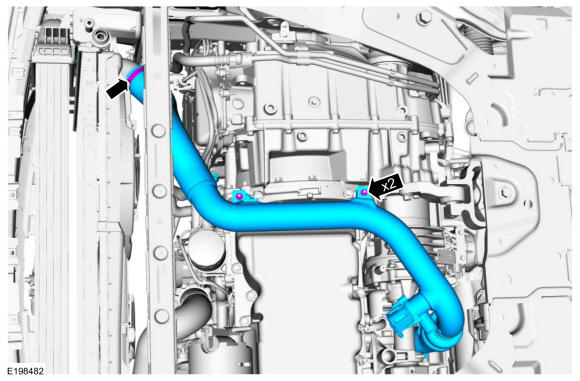

    Loosen the clamp, remove the nuts and the CAC tube.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

    Loosen the clamp and remove the CAC tube.

    Courtesy of FORD MOTOR COMPANY

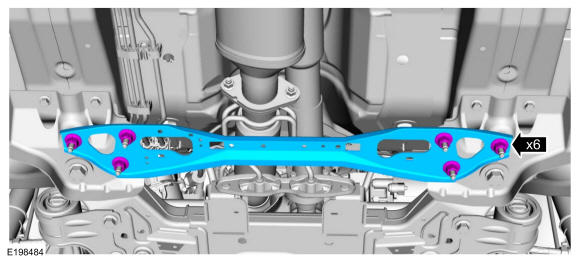

38. Remove the nuts and the subframe support bracket.

    Courtesy of FORD MOTOR COMPANY

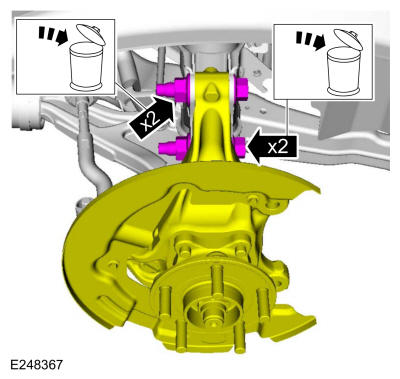

39. • Remove and discard the nuts.
    • Position aside and support.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Remove and discard the exhaust gasket.

    Courtesy of FORD MOTOR COMPANY

    4WD

41. Remove the RH front halfshaft. Refer to: Front Halfshaft RH - 2.0L EcoBoost (184kW/250PS) - MI4, All-Wheel Drive (AWD) .
42. Remove the rear driveshaft. Refer to: Rear Driveshaft .

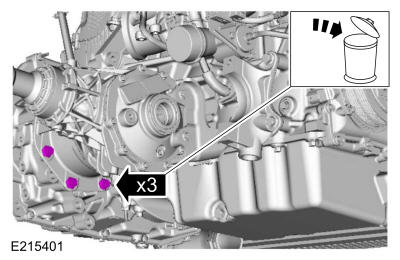

43. Remove and discard the lower transfer case bolts.

    Courtesy of FORD MOTOR COMPANY

    2WD/4WD

44. NOTE: RH side shown, LH side similar.

    Remove the fasteners and position the splash shield aside on both sides.

    Courtesy of FORD MOTOR COMPANY

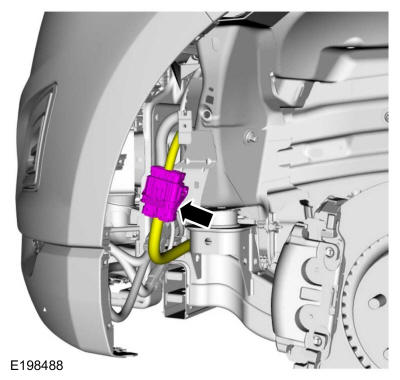

45. Detach and disconnect the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

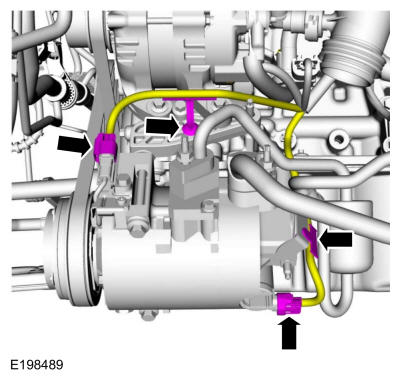

46. Disconnect the A/C compressor electrical connectors and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

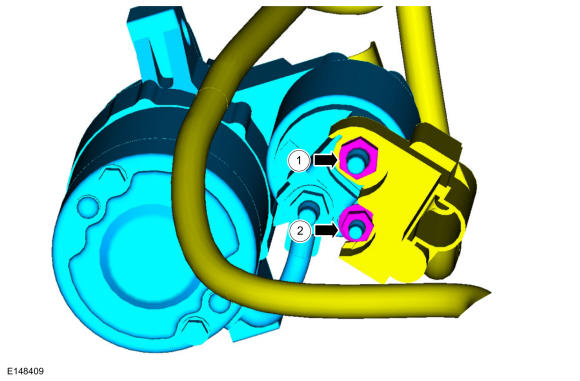

47. Remove the nuts and disconnect the A/C lines.

    Courtesy of FORD MOTOR COMPANY

48. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

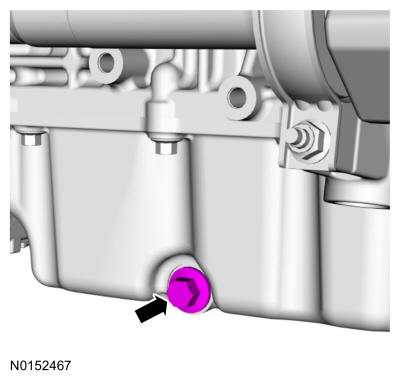

49. Drain fluid and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque: 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

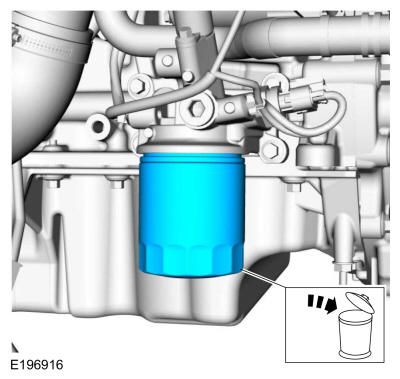

50. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment. Use the General Equipment: Strap Wrench

    Courtesy of FORD MOTOR COMPANY

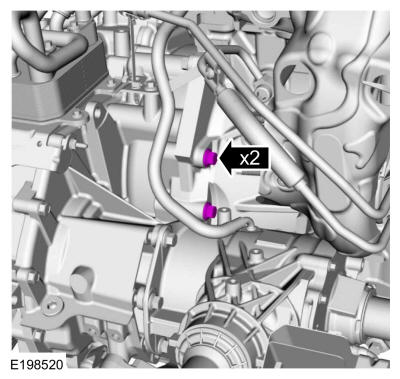

51. Remove the engine-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

52. NOTE: One of these bolts will be used to mount the Adjustable Mounting Arm to the powertrain.

    Remove the transmission-to-engine bolts.

    Courtesy of FORD MOTOR COMPANY

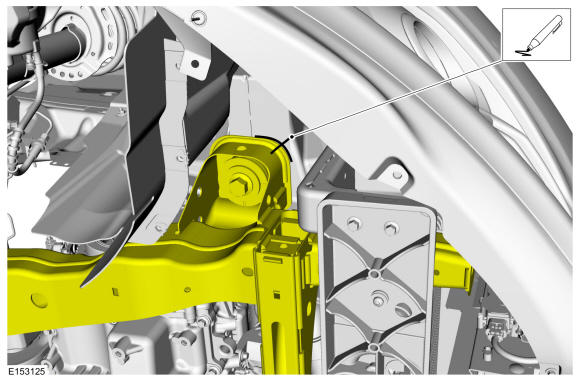

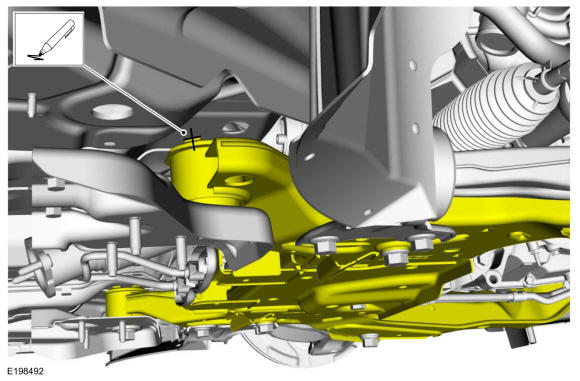

53. Mark the front subframe location.

    Courtesy of FORD MOTOR COMPANY

54. Mark the rear subframe location.

    Courtesy of FORD MOTOR COMPANY

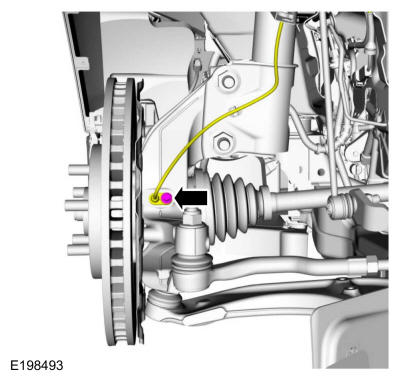

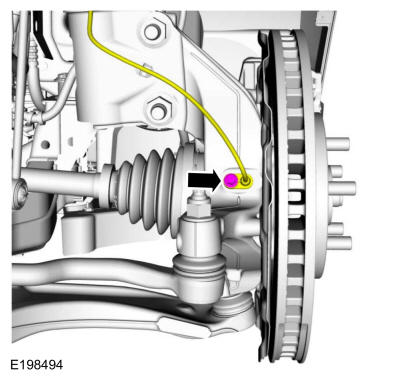

55. Remove the bolt and the LH anti-lock sensor.

    Courtesy of FORD MOTOR COMPANY

56. Remove the bolt and the RH anti-lock sensor.

    Courtesy of FORD MOTOR COMPANY

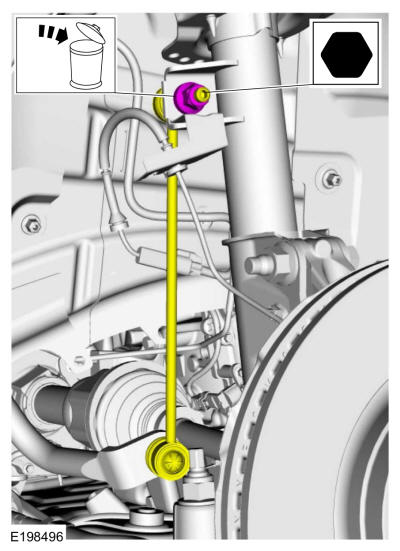

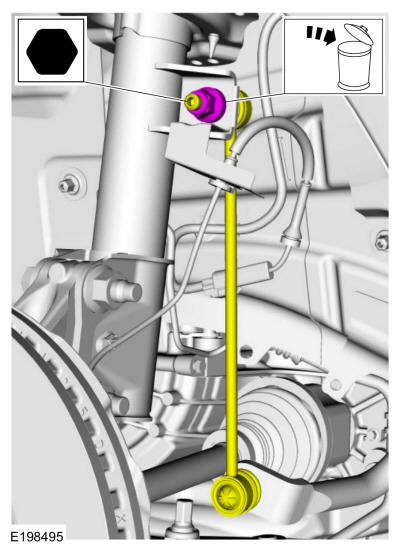

57. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

58. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove both front brake disc. Refer to: Brake Disc .

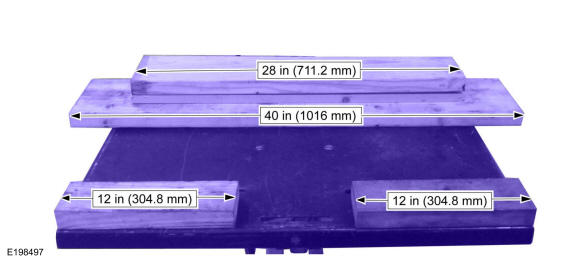

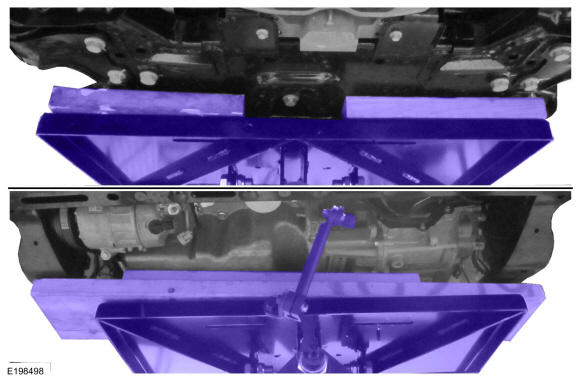

60. Position a 2 x 8 board, 40 in (1016 mm) in length, a 2 x 6 board 28 in (711.2 mm) in length, a 1 x 6 board 28 in (711.2 mm) in length and two 2 x 4 boards 12 in (304.8 mm) in length onto the powertrain jack. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

61. Position the powertrain jack and blocks of wood under the subframe and powertrain. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

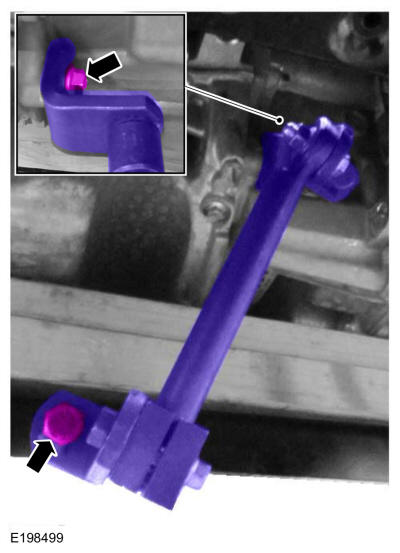

62. Install. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

63. Remove the nuts and push the bolts out and remove. Discard the nuts and the bolts

    Courtesy of FORD MOTOR COMPANY

64. Remove the nuts and push the bolts out and remove. Discard the nuts and the bolts.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: Make sure the cooling module is secure.

    Remove the bolts and the cooling module support panel.

    Courtesy of FORD MOTOR COMPANY

66. Remove the transmission mount nut.

    Courtesy of FORD MOTOR COMPANY

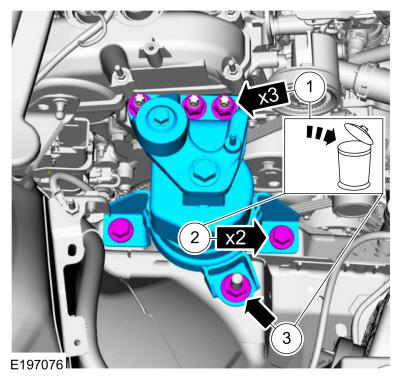

67. • Remove the nuts, bolts and discard.
    • Remove the engine mount.

    Courtesy of FORD MOTOR COMPANY

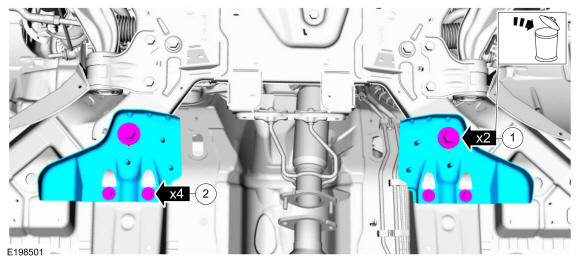

68. 1. Remove and discard the rearward subframe bolts.
    2. Remove the bolts and the subframe brackets.

    Courtesy of FORD MOTOR COMPANY

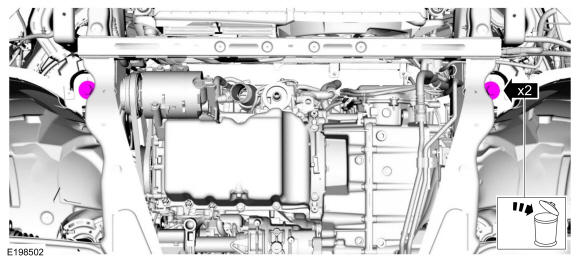

69. Remove and discard the forward subframe bolts.

    Courtesy of FORD MOTOR COMPANY

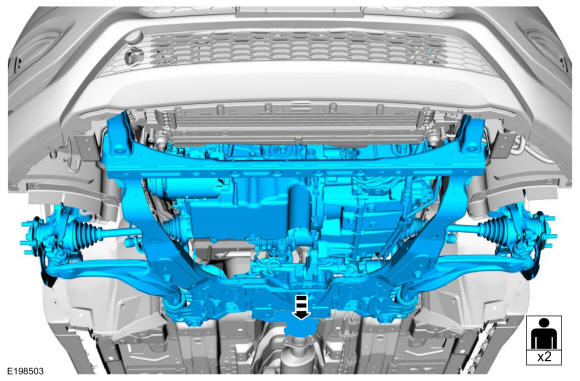

70. NOTE: Make sure the struts slide out of the knuckles when lowered.
    NOTE: Make sure the transmission cooler tubes are free and clear when lowered.

    Using the powertrain jack, lower the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

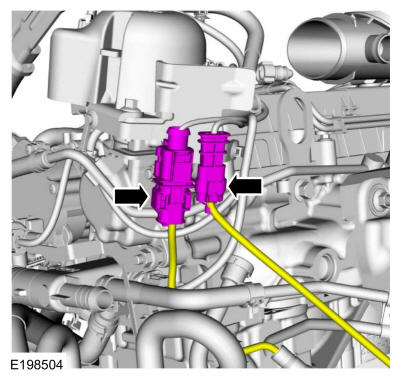

71. Disconnect the HO2S and catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

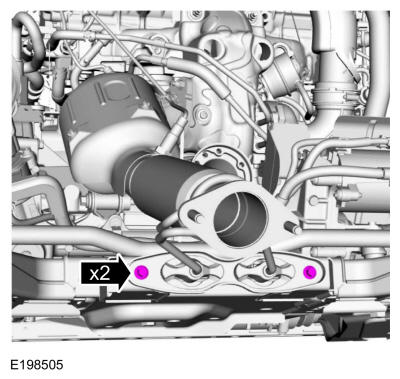

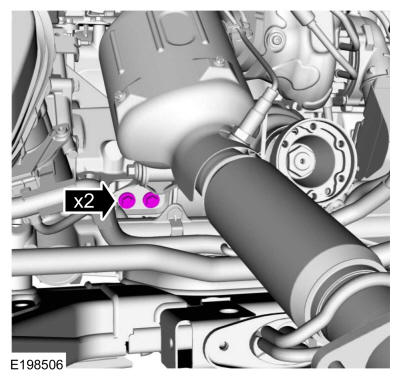

72. Remove the catalytic converter support bracket-to-subframe bolts.

    Courtesy of FORD MOTOR COMPANY

73. Remove the catalytic converter support bracket-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

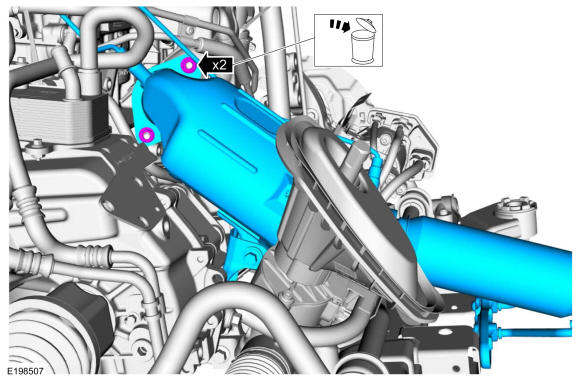

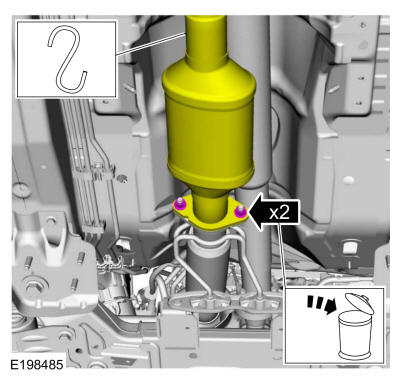

74. • Remove the nuts and the catalytic converter.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

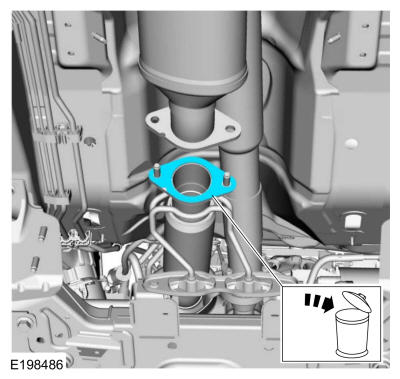

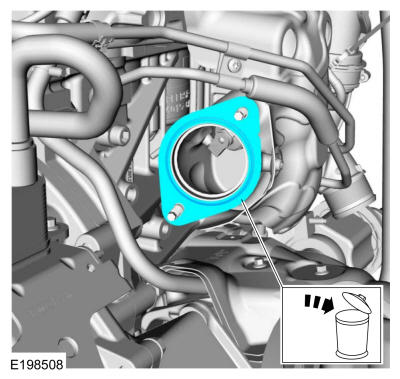

75. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Discard the catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

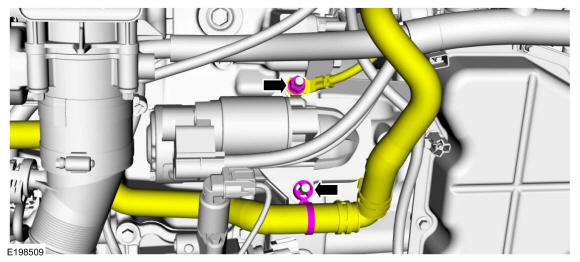

76. • Remove the nut and ground wire.
    • Detach the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

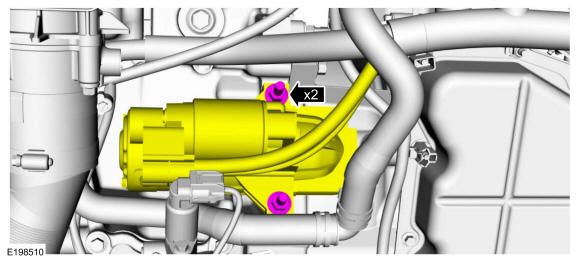

77. Remove the stud bolts and the starter.

    Courtesy of FORD MOTOR COMPANY

78. Remove the nuts and the battery cable.

    Courtesy of FORD MOTOR COMPANY

79. Remove the stater motor isolator.

    Courtesy of FORD MOTOR COMPANY

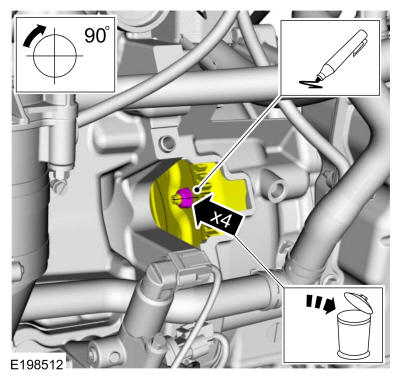

80. NOTE: Index mark one stud and the flexplate for assembly reference.
    NOTE: Only rotate the crankshaft in a clockwise direction.

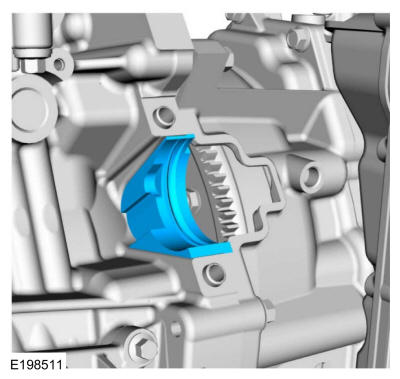

    Remove the torque converter nuts and discard. Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

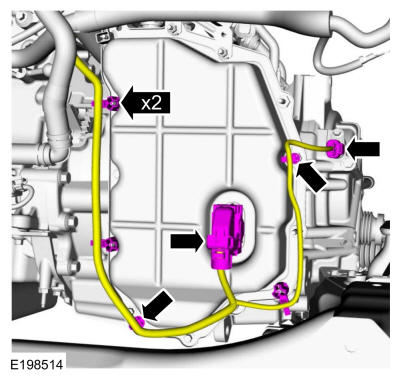

81. Disconnect the electrical connectors and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

82. Detach the wiring harness retainer from the transmission stud bolt.

    Courtesy of FORD MOTOR COMPANY

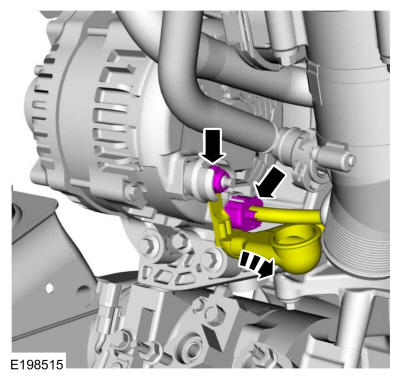

83. • Position the cover aside and remove the nut and the B+ cable.
    • Disconnect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

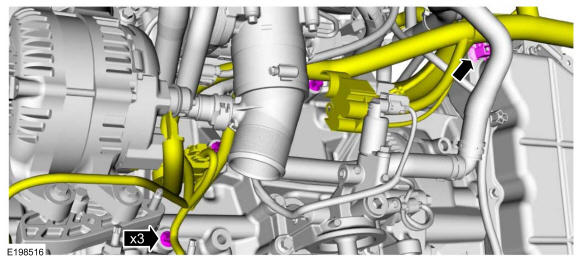

84. Detach the generator wiring harness retainers and position the harness on the transmission.

    Courtesy of FORD MOTOR COMPANY

    4WD

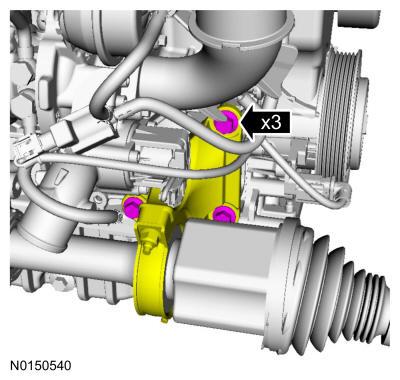

85. Remove the bolts and the halfshaft support bracket.

    Courtesy of FORD MOTOR COMPANY

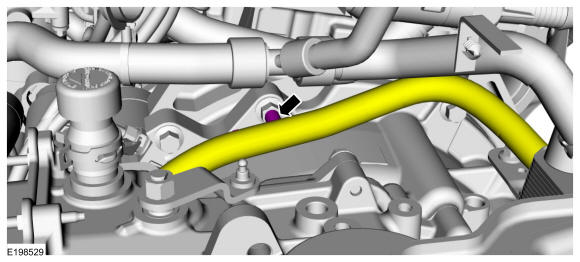

86. Detach transfer case vent hose retainer from the engine block.

    Courtesy of FORD MOTOR COMPANY

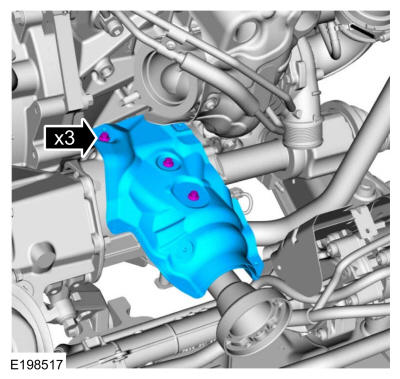

87. Remove the bolts and the transfer case heat shield.

    Courtesy of FORD MOTOR COMPANY

88. Remove the bolts and the transfer case support bracket.

    Courtesy of FORD MOTOR COMPANY

89. Remove and discard the upper transfer case bolts.

    Courtesy of FORD MOTOR COMPANY

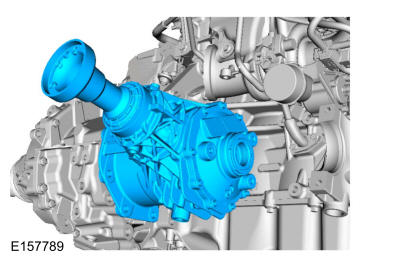

90. Remove the transfer case.

    Courtesy of FORD MOTOR COMPANY

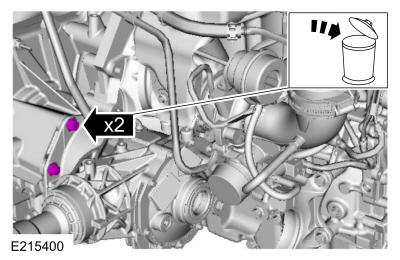

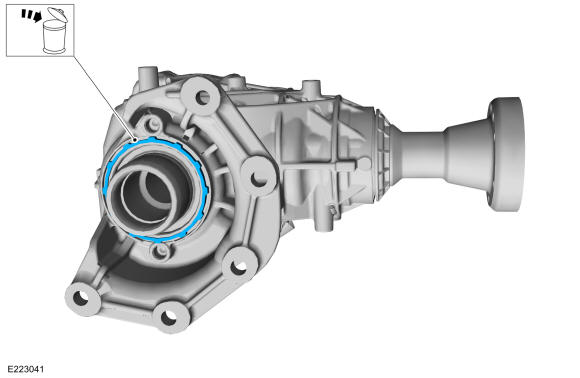

91. Remove and discard the transfer case to transmission compression seal.

    Courtesy of FORD MOTOR COMPANY

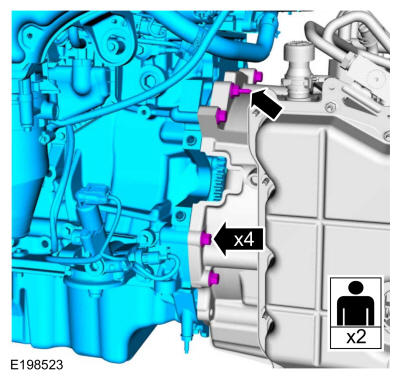

92. Remove the engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

    2WD

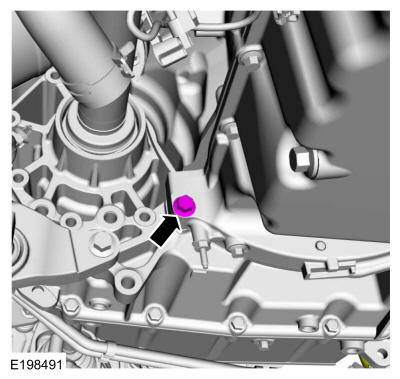

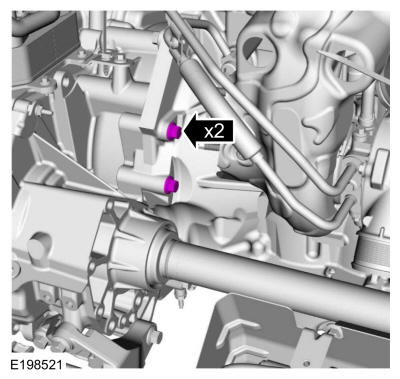

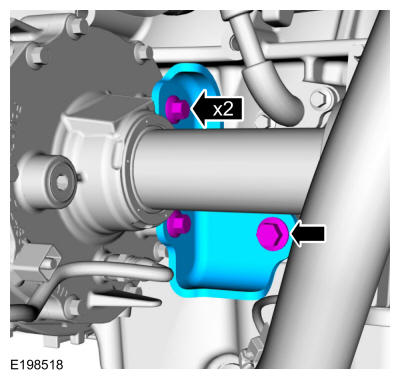

93. Remove the halfshaft support bracket bolts.

    Courtesy of FORD MOTOR COMPANY

94. Remove the engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

95. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    • Loosen the turbocharger inlet pipe clamp.
    • Remove the engine appearance cover stud.
    • Remove the bolt and the turbocharger inlet pipe.

    Courtesy of FORD MOTOR COMPANY

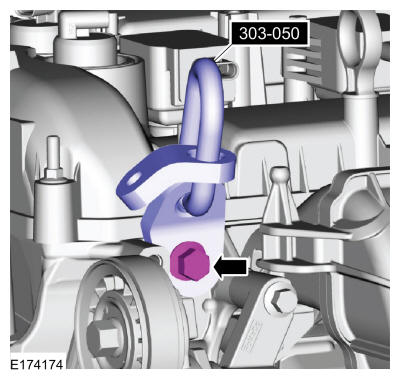

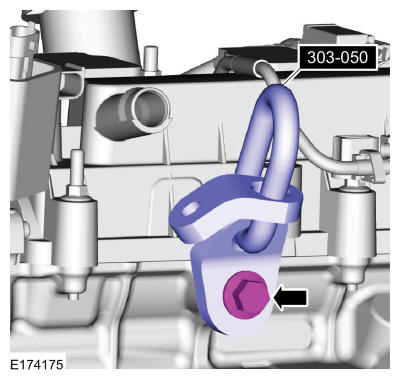

96. If necessary. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

97. If necessary. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

98. Install the engine lift equipment. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

    Courtesy of FORD MOTOR COMPANY

99. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

100. Remove the bolts and the engine.

     Courtesy of FORD MOTOR COMPANY

101. Install Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
