Valve Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

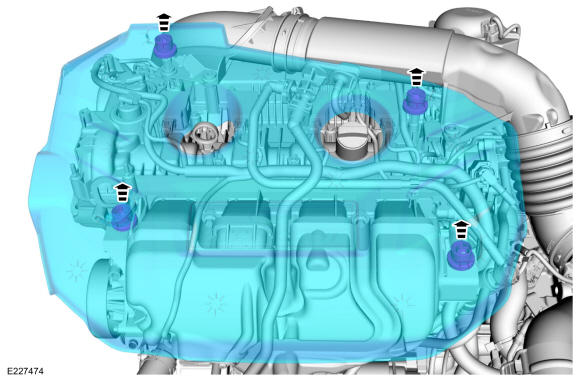

    GFD277655Courtesy of FORD MOTOR COMPANY
  3. Remove the oil level indicator.
    GFD277656Courtesy of FORD MOTOR COMPANY
  4. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
  5. Disconnect the electrical connector, wiring harness retainer and remove the crankcase vent tube.
    GFD277657Courtesy of FORD MOTOR COMPANY
  6. Remove the retainers and the underbody shield.
    GFD277658Courtesy of FORD MOTOR COMPANY
    • Release the clamp and disconnect the CAC bypass hose. Use the General Equipment: Hose Clamp Remover/Installer

    • Loosen the turbocharger inlet pipe clamp.

    • Remove the engine appearance cover stud.

    • Remove the bolt and the turbocharger inlet pipe.

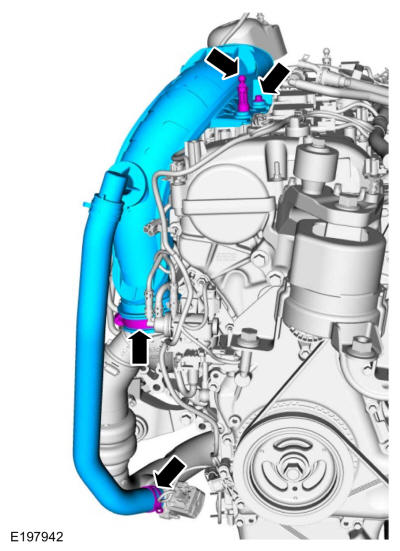

    GFD277659Courtesy of FORD MOTOR COMPANY
  8. Remove the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
  9. Disconnect the MAPT sensor electrical connector.
    GFD277660Courtesy of FORD MOTOR COMPANY
    • Disconnect the VCT oil control solenoid electrical connectors.

    • Disconnect the CMP sensor electrical connectors.

    • Detach the wiring harness retainers.

    GFD277661Courtesy of FORD MOTOR COMPANY
  11. Detach the PCM wiring harness retainer from the engine mount stud.
    GFD277662Courtesy of FORD MOTOR COMPANY
  12. Remove the bolt and the exhaust CMP sensor.
    GFD277663Courtesy of FORD MOTOR COMPANY
  13. Disconnect the vacuum tubes at the brake vacuum pump.
    GFD277664Courtesy of FORD MOTOR COMPANY
    • Detach the CHT wiring harness retainer.

    • Detach the turbocharger control valve vacuum tube retainers and position aside.

    GFD277665Courtesy of FORD MOTOR COMPANY

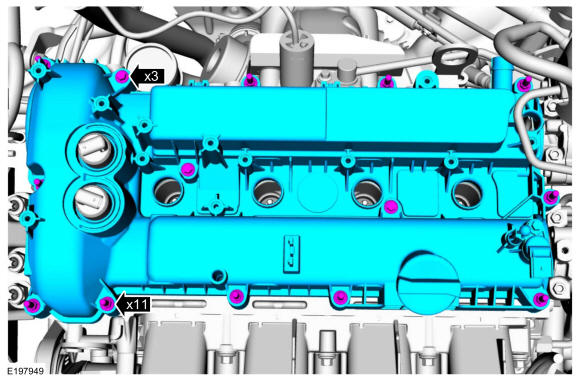

  15. Loosen the fasteners and remove the valve cover.
    GFD277666Courtesy of FORD MOTOR COMPANY
  16. Remove and discard the valve cover gasket.

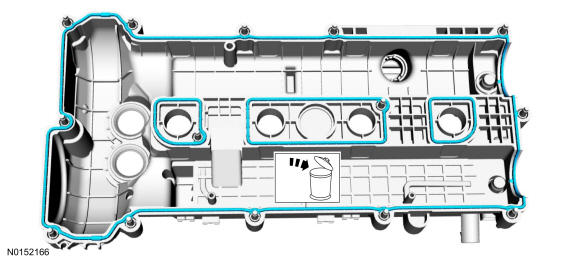

    GFD277667Courtesy of FORD MOTOR COMPANY
  17. NOTE: The VCT solenoid seals should only be replaced if they are damaged.

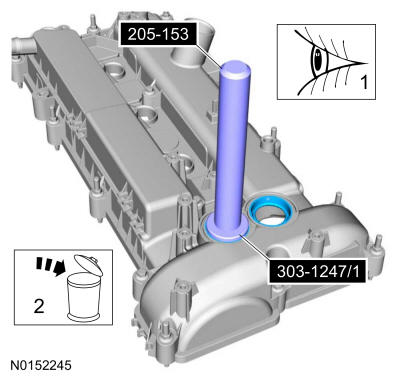

    Inspect the VCT oil control solenoid seals for damaged. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD277668Courtesy of FORD MOTOR COMPANY
  18. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD277669Courtesy of FORD MOTOR COMPANY
  19. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

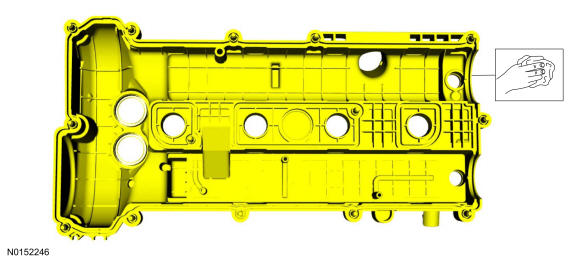

GFD277670Courtesy of FORD MOTOR COMPANY
