Timing Chain: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

- Install the timing chain guide and the bolts.
  Torque: 89 lb.in (10 Nm)
- Install the timing chain.
- Install the timing chain tensioner arm.
Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with aluminum timing chain tensioner.

NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step.

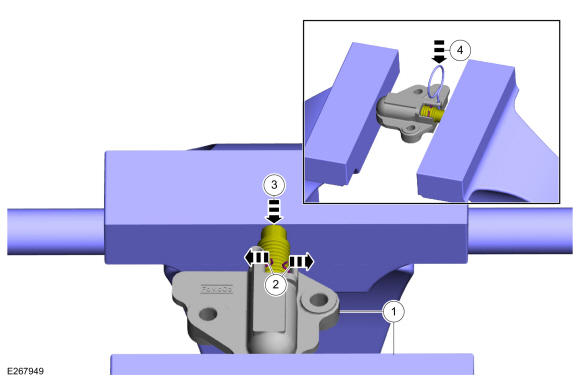

Reset the timing chain tensioner.
1. Position the timing chain tensioner in a soft-jawed vise.
2. Spread the ends of the ratchet wire clip apart.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with aluminum timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

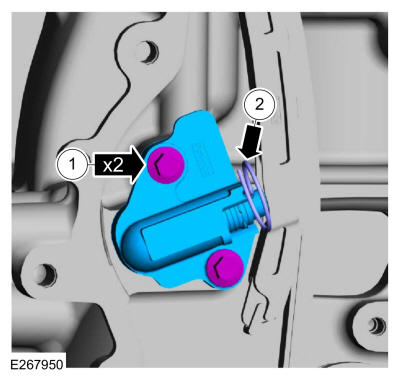

1. Install the timing chain tensioner and the bolts.
  Torque: 89 lb.in (10 Nm)
2. Remove the locking pin.
Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with cast iron timing chain tensioner.

NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.
NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

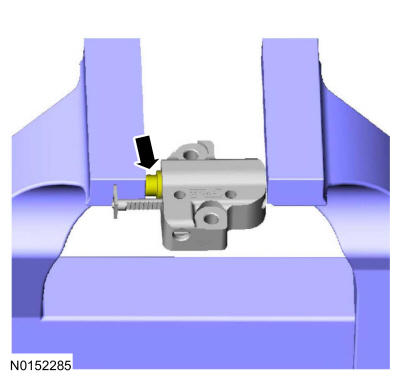

Using the edge of a vise, compress the timing chain tensioner plunger.

Courtesy of FORD MOTOR COMPANY

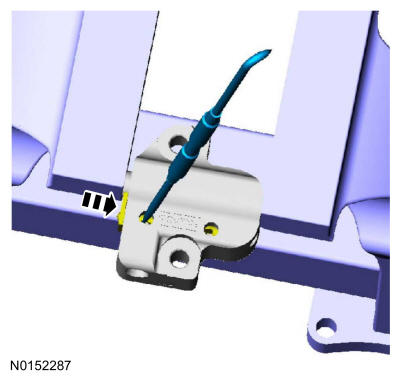

Using a small pick, push back and hold the ratchet mechanism.

Courtesy of FORD MOTOR COMPANY
While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Courtesy of FORD MOTOR COMPANY

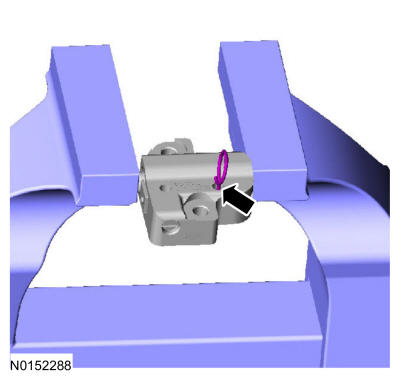

Install a locking pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

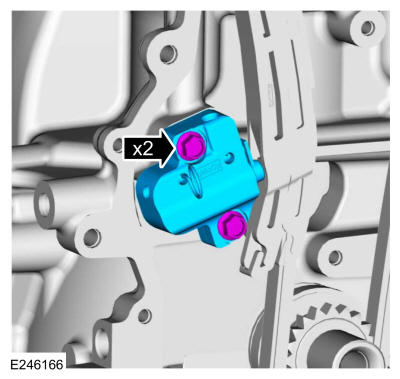

Install the timing chain tensioner and the bolts.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

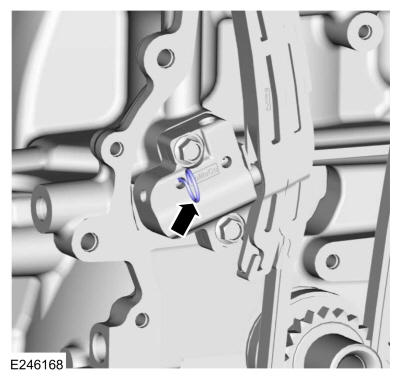

Remove the locking pin.

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

Tighten.

Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

Tighten.

Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY

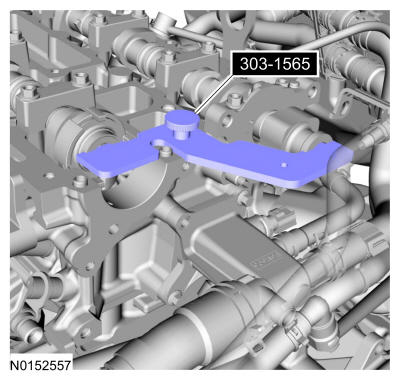

Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
Install the high-pressure fuel pump drive unit. Refer to: High-Pressure Fuel Pump Drive Unit .
