Oil Pump: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect .
- Remove the following items:
- Refer to: Cowl Panel .
- Refer to: Engine Front Cover .
- If necessary. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

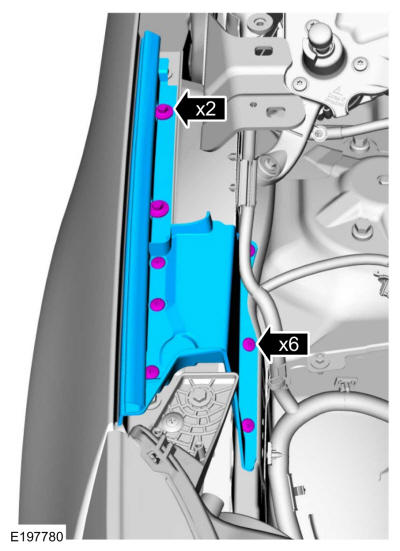

- Remove the retainers and the LH finish panel.
- Remove the retainers and the RH finish panel.
- Install Special Service Tool: 303-F070 Support Bar, Engine.
- Remove the jack and wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
- Loosen the clamp and position CAC inlet tube off the turbocharger.
- Loosen the clamp, remove the nuts and the CAC inlet tube.
-
- Disconnect the electrical connectors and wiring retainer.
- Remove the nut and stud.

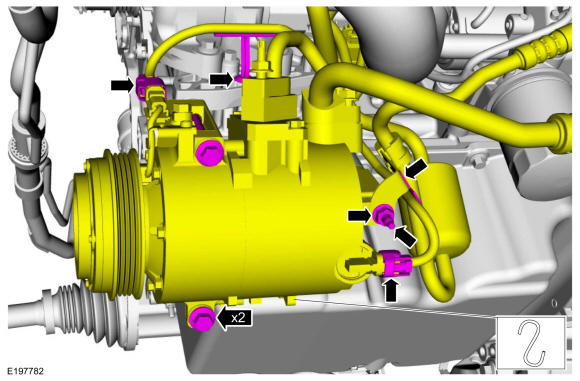

- Remove the bolts and position the A/C compressor aside and support.
-
- Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain bolt.
Torque: 20 lb.ft (27 Nm)
- Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
- Remove the oil pan bolts.
- Remove the oil pan-to-transmission bolt.
- Remove the bolts and the oil pan.
- Remove the bolts and the oil screen and pickup tube.
- Remove the oil screen and pickup tube O-ring seal and discard.
-
-
WARNING: Take extra care when handling the compressed spring.
Release the tension on the tensioner spring.
- Remove the shoulder bolts, tensioner and position the chain aside.
-

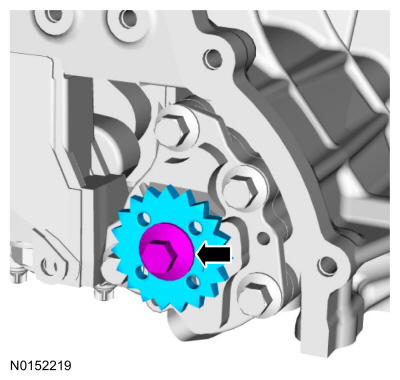

- Remove the bolt and oil pump sprocket.

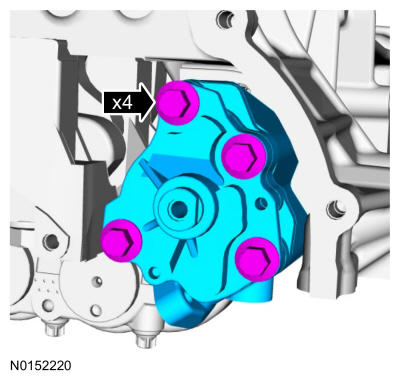

- Remove the bolts and the oil pump.

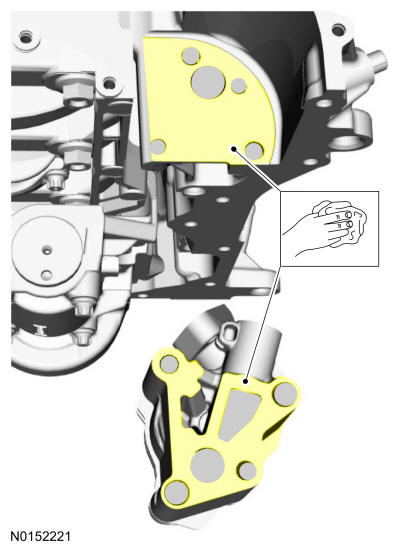

- Clean the mating surfaces of the oil pump.
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
-
- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
