Engine Mount: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

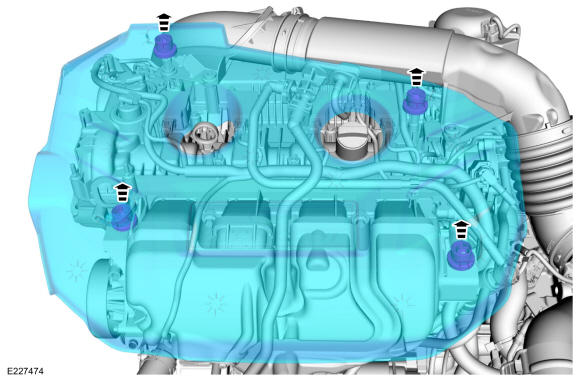

1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY

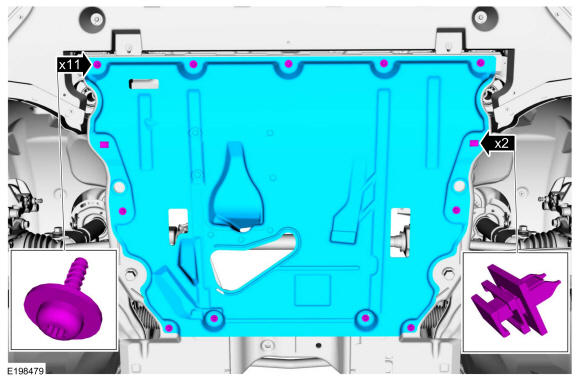

Remove retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Detach wire harness retainer from the degas bottle.

Courtesy of FORD MOTOR COMPANY
Remove the bolt, release the degas bottle tabs and the coolant tube retainer and position the degas bottle aside.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Detach wire harness retainers from the shock tower, engine mount and valve cover.

Courtesy of FORD MOTOR COMPANY

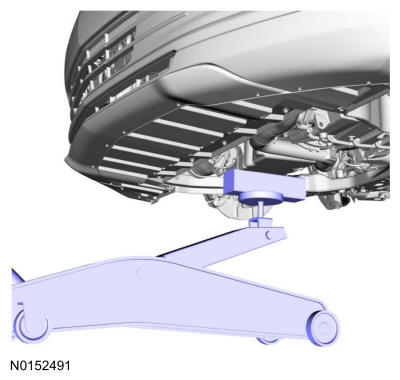

Position the jack and wooden block under the front of the oil pan to support the engine. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
1. Remove the engine mount nuts and discard.
  Torque: 85 lb.ft (115 Nm)
2. Remove the engine mount bolts and discard.
  Torque: 81 lb.ft (110 Nm)
3. Remove the engine mount nut and discard.
  Torque: 66 lb.ft (90 Nm)
- Remove the engine mount.
