Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD277906Courtesy of FORD MOTOR COMPANY

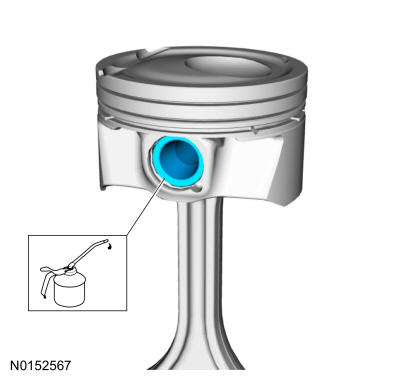

  2. Lubricate with clean engine oil and install the piston pin.

    Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD277907Courtesy of FORD MOTOR COMPANY
  3. Install the piston pin retainers.
    GFD277908Courtesy of FORD MOTOR COMPANY

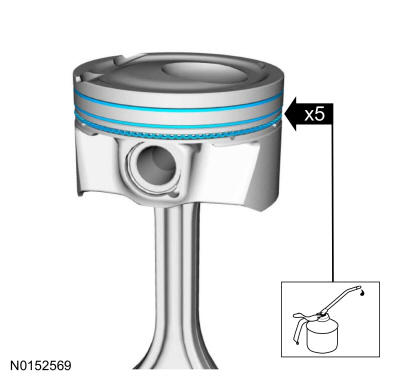

  4. Lubricate with clean engine oil and install the piston rings.

    Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD277909Courtesy of FORD MOTOR COMPANY
  5. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

GFD277910Courtesy of FORD MOTOR COMPANY
