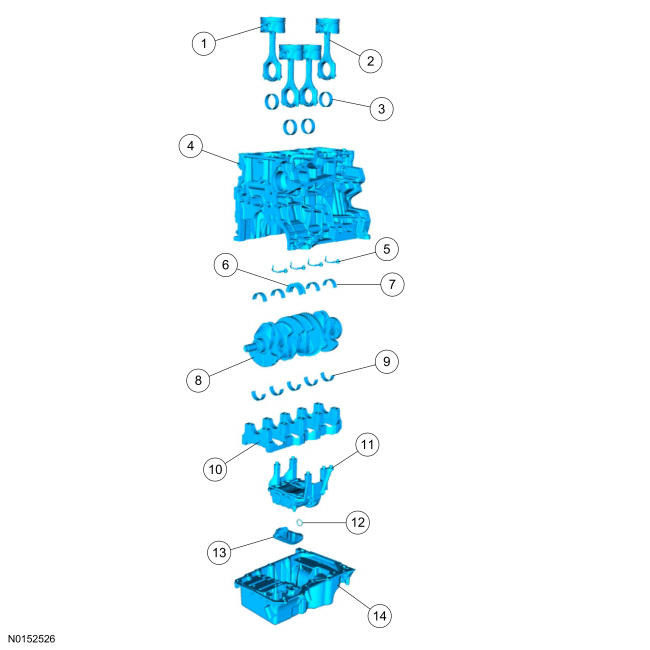

Exploded View Of Engine - Lower Block Components
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6110 | Piston (4 required) |
| 2 | 6200 | Connecting rod (4 required) |
| 3 | 6211 | Connecting rod bearing (8 required) |
| 4 | 6010 | Cylinder block |
| 5 | 6K868 | Piston oil cooler valve (4 required) |
| 6 | 6337 | Cylinder block crankshaft main thrust bearing |
| 7 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 8 | 6300 | Crankshaft assembly |
| 9 | 6A338 | Crankshaft main bearing beam bearing (5 required) |
| 10 | -- | Main bearing beam (part of 6010) |
| 11 | 6K360 | Balance shaft assembly |
| 12 | 6625 | Oil pump screen and cover assembly O-ring |
| 13 | 6622 | Oil pump screen and cover assembly |
| 14 | 6675 | Oil pan |
