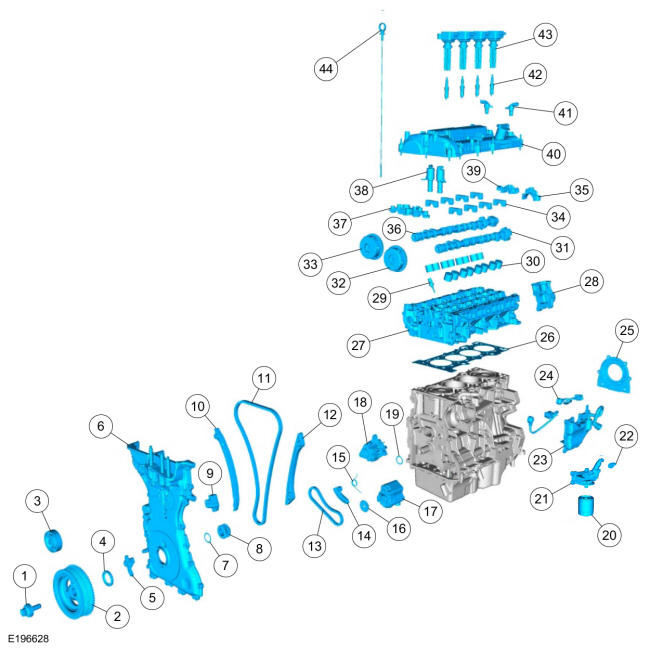

Exploded View Of Engine - Front and Upper Components

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6K340	Crankshaft pulley bolt
2	6316	Crankshaft damper
3	19A216	Accessory drive belt idler pulley
4	6700	Crankshaft front seal
5	6C315	Crankshaft Position (CKP) sensor
6	6019	Engine front cover
7	6378	Diamond washer
8	6306	Crankshaft sprocket
9	6K254	Timing chain tensioner
10	6K255	Timing chain tensioner arm
11	6268	Timing chain
12	6K297	Timing chain guide
13	6A895	Oil pump chain
14	6C271	Oil pump chain tensioner
15	--	Oil pump chain tensioner spring (part of 6C271)
16	6652	Oil pump drive gear
17	6600	Oil pump
18	8501	Coolant pump
19	6378	Diamond washer
20	6714	Oil filter
21	6881	Oil filter adapter
22	9278	Oil pressure switch
23	6A785	Crankcase vent oil separator
24	12A699	Knock sensor (KS) (2 required)
25	6K318	Crankshaft rear oil seal
26	6051	Head gasket
27	6049	Cylinder head
28	9A413	Fuel pump cover assembly
29	6G004	Cylinder head temperature (CHT) sensor
30	6500	Valve tappet (16 required)
31	6A271	Camshaft (intake)
32	6C524	Intake variable camshaft timing (VCT) unit
33	6C525	Exhaust variable camshaft timing (VCT) unit
34	--	Camshaft bearing cap (part of 6049) (8 required)
35	--	Intake camshaft rear bearing cap (part of 6049)
36	6A272	Camshaft (exhaust)
37	--	Camshaft front bearing cap (part of 6049)
38	6B297	Variable camshaft timing (VCT) oil control solenoid (2 required)
39	--	Exhaust camshaft rear bearing cap (part of 6049)
40	6K271	Valve cover
41	12K073	Camshaft position (CMP) sensor (2 required)
42	12405	Spark plug (4 required)
43	12A366	Ignition coil-on-plugs (4 required)
44	6750	Oil indicator
