Engine Identification
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Always refer to these labels when installation of new parts is necessary or when checking engine calibrations. The engine parts often differ within a CID family. Verification of the identification codes will make sure the correct parts are obtained. These codes contain all the pertinent information relating to the dates, optional equipment and revisions.

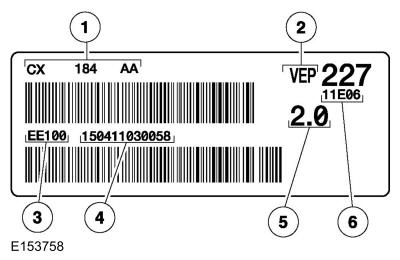

Engine Code Information Label
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Valencia Engine Plant |
| 3 | Plant code |
| 4 | Engine serial number |
| 5 | Engine displacement |
| 6 | Engine build date YYM(A-L)DD |
Engine Cylinder Identification
