Section 131 (ENGINE - 2.0L ECOBOOST (184kW/250PS) - MI4): Assembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal TKIT-2009TC-F
Courtesy of FORD MOTOR COMPANY	303-103 (T74P-6375-A) Holding Tool, Flywheel T74P-77000-A TKIT-2009TC-F
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1521 Alignment Tool, Crankshaft Position Sensor TKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-1565 Alignment Tool, Camshaft TKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-1567 Sizer, Teflon Seal TKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-328 (T88P-6701-B1) Replacer, Rear Seal TKIT-1988-FLM TKIT-1988-F TKIT-1988-LM
Courtesy of FORD MOTOR COMPANY	303-507 Timing Peg, Crankshaft TDC TKIT-2001N-FLM TKIT-2001N-ROW
Courtesy of FORD MOTOR COMPANY	310-205 Fuel Injector Brush
Courtesy of FORD MOTOR COMPANY	310-207 Installer, Fuel Injector Seal Assembly TKIT-2009A-FLM
Feeler Gauge
Strap Wrench
Mounting Stand
Plastic Scraper
Hose Clamp Remover/Installer
Round-Ended Steel Rule
Piston Ring Compressor

Materials

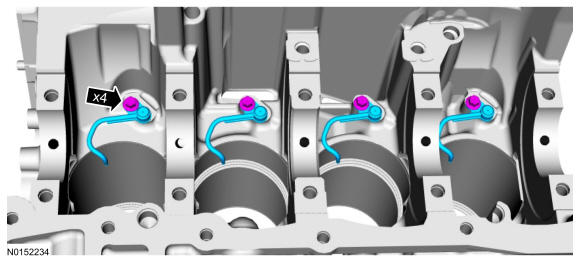

1. Install the engine piston oil cooler valves and the 4 bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

2. • Measure the length or distance in two directions.
   • Record the smallest measurement for each crankshaft main bearing journal.

   Courtesy of FORD MOTOR COMPANY

3. Mounted flush and original main bearing beam bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

4. Tighten in sequence shown.

   Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 90 deg.

   Courtesy of FORD MOTOR COMPANY

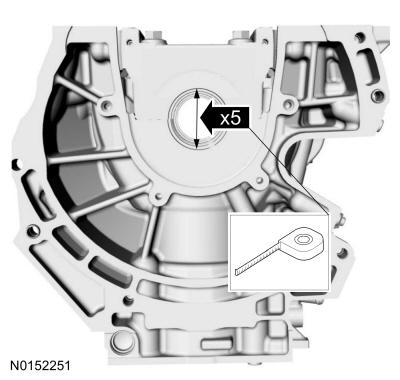

5. Measure each crankshaft block main bearing bore diameter.

   Courtesy of FORD MOTOR COMPANY

6. Using the chart, select the crankshaft main bearings.

   Courtesy of FORD MOTOR COMPANY

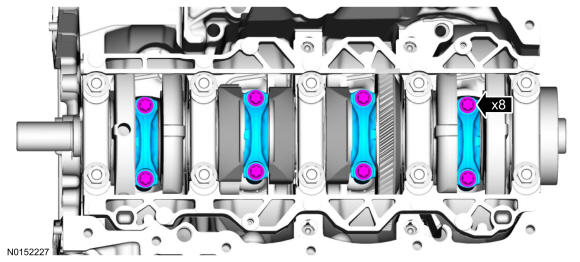

7. Using the original bolts, install the connecting rod caps.

   Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 21 lb.ft (29 Nm) Stage 3: 90 deg.

   Courtesy of FORD MOTOR COMPANY

8. • Measure the length or distance in two directions.
   • Record the smallest measurement for each connecting rod.

   Courtesy of FORD MOTOR COMPANY

9. Remove the bolts and the connecting rod caps. Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

10. • Measure the length or distance in two directions.
    • Record the smallest measurement for each connecting rod journal.

    Courtesy of FORD MOTOR COMPANY

11. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

    Courtesy of FORD MOTOR COMPANY

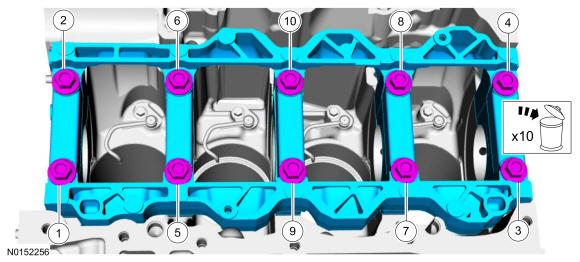

12. • Remove the bolts in sequence shown and discard.
    • Remove the main bearing beam.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.
    NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

    Lubricate with clean engine oil and install the crankshaft main bearings.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

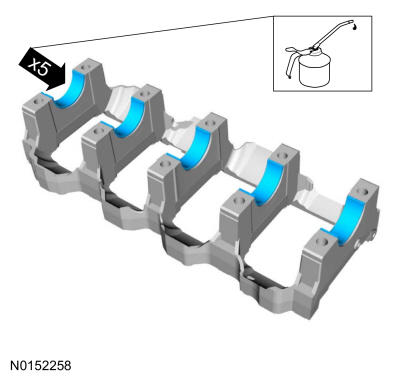

14. NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

    Lubricate with clean engine oil and install the main bearing beam bearings.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

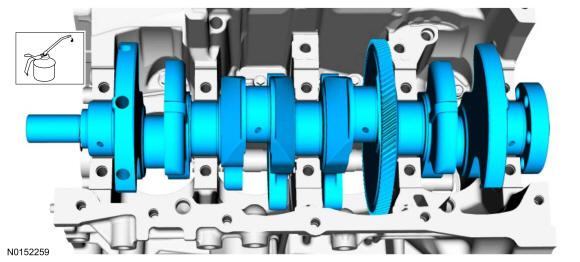

15. Lubricate with clean engine oil and install the crankshaft.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

16. Lubricate with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

17. Install the main bearing beam flush.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Lubricate the new main bearing beam bolts threads and under the bolt heads with clean engine oil.
    NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.

    Install the bolts and tighten in sequence shown.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 90 deg.

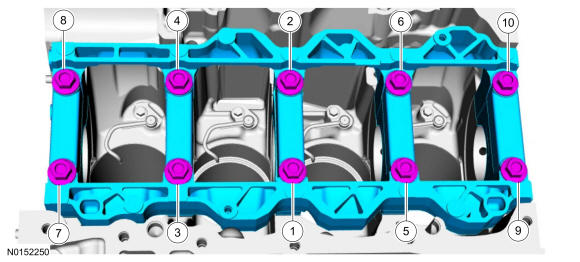

    Fig 1: Main Bearing Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
19. 1. Position the crankshaft to the rear of the cylinder block.
    2. Zero the Dial Indicator Gauge with Holding Fixture. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    3. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    4. Acceptable crankshaft end play is 0.220-0.450 mm (0.0087-0.0177 in). If the crankshaft end play exceeds the specified range, install new parts as necessary.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

    Lubricate with clean engine oil and install the connecting rod bearings.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Align the piston rings on the piston.
    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
    NOTE: Make sure the piston arrow on top is facing toward the front of the engine.

    Lubricate with clean engine oil. Using a piston ring compressor, install the pistons. Use the General Equipment: Piston Ring Compressor

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

23. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.

    Install the connecting rod caps, bolts and tighten in 3 stages.

    Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 21 lb.ft (29 Nm) Stage 3: 90 deg.

    Courtesy of FORD MOTOR COMPANY

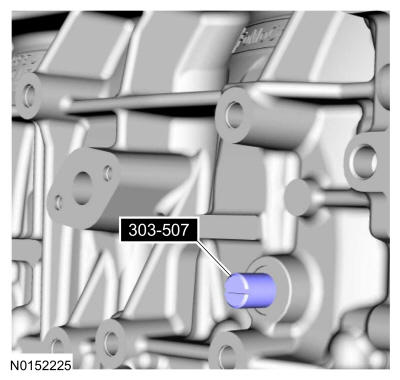

24. • Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    • Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.
    NOTE: The original adjustment shims must be installed in their original positions.
    NOTE: Confirm by visual inspection that there is no damage to the balancer unit gear and verify that the shaft turns smoothly. If there is any damage or malfunction, replace the balancer unit.

    Install the adjustment shims in their original positions on the seat faces of the balancer unit. With the balancer unit shaft marks in the TDC position, slowly install the balancer unit to the cylinder block to avoid interference between the crankshaft drive gear and the balancer unit driven gear.

    Courtesy of FORD MOTOR COMPANY

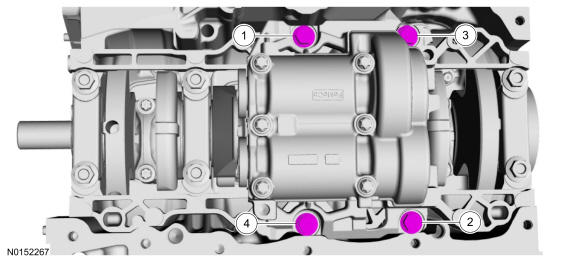

26. Install the bolts and tighten in 2 stages.

    Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 31 lb.ft (42 Nm)

    Fig 2: Balancer Unit Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
27. • Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    • Rotate the crankshaft to confirm that there are no meshing problems between the balancer unit gear and the crankshaft gear.

    Courtesy of FORD MOTOR COMPANY

28. 1. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    2. Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.
    3. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Measure the backlash and verify that it is within specified range at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees. It will be necessary to reset the measuring equipment between measurements.
    NOTE: The measurement must be taken with the Dial Indicator Gauge with Holding Fixture, a 5-mm Allen wrench and worm clamp set up as shown. Mark the Allen wrench with a file 80 mm (3.149 in) above the driven gear shaft center. Make sure the worm clamp and Allen wrench are not touching the balance shaft housing.
    NOTE: For an accurate measurement while measuring the gear backlash, insert a screwdriver as shown into the crankshaft No. 1 crankweight area and set both the rotation and the thrust direction with the screwdriver, using a prying action as shown.
    NOTE: Position the Dial Indicator Gauge with Holding Fixture as shown. Measure the gear backlash.
    1. Position the Dial Indicator Gauge with Holding Fixture (1) on the Allen wrench 80 mm (3.149 in) above the driven gear shaft center (2) on the balancer unit.
    2. Rotate the crankshaft clockwise and measure the backlash at all of the following 6 positions: 10 degrees, 30 degrees, 100 degrees, 190 degrees, 210 degrees and 280 degrees.
    3. Backlash specifications are 0.040 to 0.140 mm (0.00157 to 0.0055 in).
    4. If the backlash exceeds the specified range, carry out the Balance Shaft Backlash procedure. Refer to: Balance Shaft Backlash .

    Courtesy of FORD MOTOR COMPANY

30. Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC and must remain at the TDC position until the timing drive components and crankshaft pulley are installed.

    Courtesy of FORD MOTOR COMPANY

31. Clean the oil pump sealing surfaces.

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

32. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
33. NOTE: Some engines may not be equipped with an oil pump mounting gasket from the factory. When assembling components, always install a gasket. Adding a gasket is transparent to oil pump fit and function.

    Install the oil pump and the bolts and tighten in the sequence shown in 2 stages.

    Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Install the oil pump sprocket and bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

35. NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

    Identify crankshaft sprocket type.

    1. Early build engine - Flat faced sprocket (requires diamond washers).
    2. Late build engine - Laser etched sprocket (does

       NOT  require diamond washers).

    Courtesy of FORD MOTOR COMPANY

36. NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.
    NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

    If equipped, install the diamond washer.

    Courtesy of FORD MOTOR COMPANY

37. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

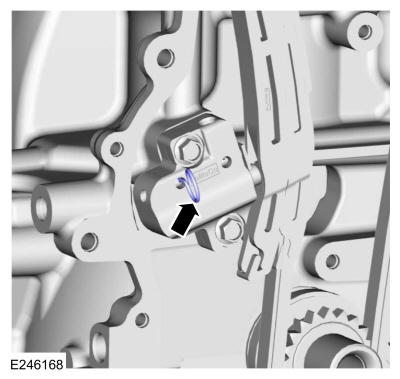

38. 1. Install the timing chain, tensioner and the shoulder bolts.

       Torque: 89 lb.in (10 Nm)

    2. Push the tensioner spring down and position the spring under the shoulder bolt.

    Courtesy of FORD MOTOR COMPANY

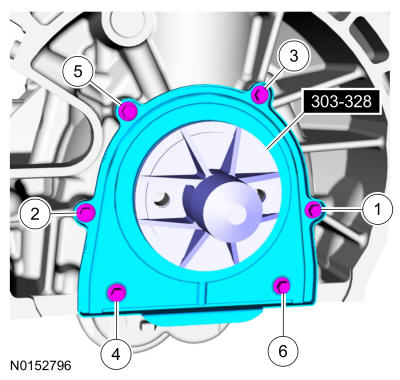

39. • Using the special tool, position the crankshaft rear oil seal onto the crankshaft. Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
    • Install the bolts and tighten in sequence shown.

      Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

40. Install a new O-ring seal on the oil pickup and screen.

    Courtesy of FORD MOTOR COMPANY

41. Install the oil pickup and screen and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

42. NOTE: If the oil pan is not secured within 10 minutes of silicone sealant application, the silicone sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

    Apply a 3 mm bead of silicone sealant.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

43. Install the oil pan and the bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

44. Using a straight edge, align the front surface of the oil pan flush with the front surface of the engine block. Use the General Equipment: Round-Ended Steel Rule

    Courtesy of FORD MOTOR COMPANY

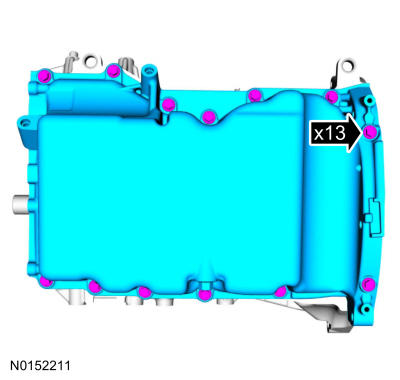

45. Tighten the bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

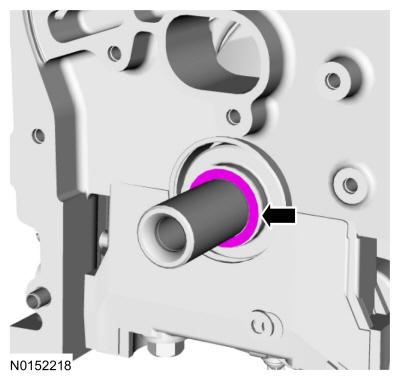

46. Install the cylinder block bushings.

    Courtesy of FORD MOTOR COMPANY

47. Install a new cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

48. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    Install the cylinder head and bolts and tighten in sequence shown in 5 stages.

    Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 133 lb.in (15 Nm) Stage 3: 41 lb.ft (55 Nm) Stage 4: 90 deg. Stage 5: 90 deg.

    Courtesy of FORD MOTOR COMPANY

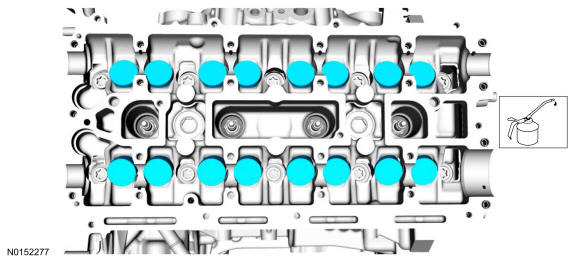

49. Lubricate with clean engine oil and install the valve tappets.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

50. NOTE: If any new parts are being installed (cylinder head, valves, tappets, camshafts) it is necessary to check the valve clearance, follow the next 12 steps exactly or serious damage to the engine may occur. If the original parts are being installed it is not necessary to check the valve clearance so proceed to  61.

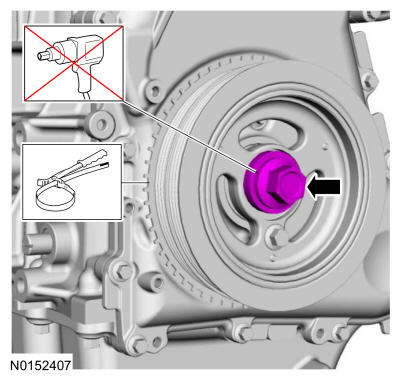

    Install the crankshaft bolt and place a paint mark on the crankshaft bolt at the 12 o'clock position.

    Courtesy of FORD MOTOR COMPANY

51. • Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

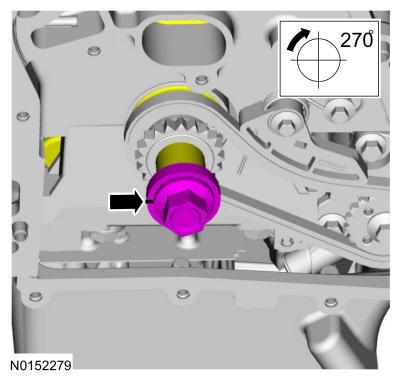

52. NOTE: Rotating the crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

    Using the crankshaft bolt and washer, rotate the crankshaft clockwise 270 degrees until the paint mark is at the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

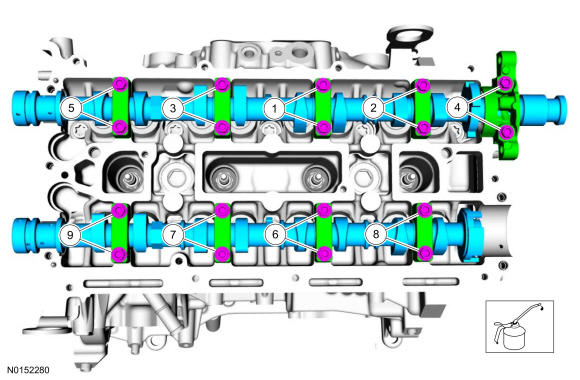

53. NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.
    NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.
    • Lubricate the camshafts and caps with clean engine oil and install the camshafts, caps and bolts.

      Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    • Tighten 2 turns at a time in the sequence shown in 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Courtesy of FORD MOTOR COMPANY

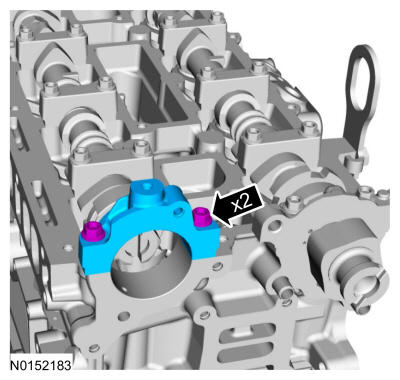

54. Lubricate the camshaft journals with clean engine oil and install the front camshaft bearing cap and bolts.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Courtesy of FORD MOTOR COMPANY

55. 1. Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.
    2. Use a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
    3. Repeat to measure all of the lobe/tappet clearances.

    Courtesy of FORD MOTOR COMPANY

56. NOTE: The number on the valve tappet only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.
    NOTE: Select tappets using this formula: tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.
    NOTE: The nominal clearance is:
    • intake: 0.25 mm (0.0095 in).
    • exhaust: 0.36 mm (0.0142 in).
    NOTE: The acceptable clearances after being fully installed are:
    • intake: 0.19-0.31 mm (0.007-0.012 in).
    • exhaust: 0.30-0.42 mm (0.012-0.017 in).
    Select the closest tappet size to the ideal tappet thickness available and mark the installation location.

57. Remove the bolts and the front camshaft bearing cap.

    Courtesy of FORD MOTOR COMPANY

58. NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

    Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps. Remove the bolts, caps and camshafts.

    Courtesy of FORD MOTOR COMPANY

59. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

60. NOTE: Rotating the crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.

    Rotate the crankshaft clockwise 90 degrees so the crankshaft contacts the special tool.

    Courtesy of FORD MOTOR COMPANY

61. If necessary, replace any tappets with the correct tappets selected during the valve clearance check and lubricate with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

62. Clean the exhaust camshaft rear bearing cap.

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

63. NOTE: The exhaust camshaft rear bearing cap must be secured within 10 minutes of gasket maker application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.
    NOTE: Do not allow gasket maker to enter the camshaft bearing journal. If gasket maker is applied to the camshaft bearing journal, the journal and sealing area must be cleaned with Motorcraft® Metal Surface Prep.

    Apply 1 mm (0.039 in) beads of gasket maker to the exhaust camshaft rear bearing cap mating surface as shown.

    Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

64. NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the removal procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position can cause severe damage to the valves and pistons.
    NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.
    NOTE: Wipe off any excess gasket maker from the fuel injection pump housing sealing surface of the cylinder head and rear camshaft cap.
    NOTE: Lubricate the camshaft journals and camshaft bearing caps with clean engine oil.
    • Lubricate with clean engine oil and install the camshafts, caps and bolts.

      Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    • Tighten the camshaft bearing cap bolts one turn at a time, until finger-tight.
    • Tighten 2 turns at a time in the sequence shown in 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Courtesy of FORD MOTOR COMPANY

65. • Lubricate the camshaft journals with clean engine oil.

      Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    • Install the front camshaft bearing cap and the bolts and tighten in 2 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    Courtesy of FORD MOTOR COMPANY

66. Install the VCT oil control solenoids and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

67. NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

    Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.

    Courtesy of FORD MOTOR COMPANY

68. NOTE: Do not tighten the VCT unit bolts at this time.
    • Install the VCT units and the bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

69. Install the tensioner arm, timing chain, timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    NOTE: If equipped with aluminum timing chain tensioner.
    NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step.
70. Reset the timing chain tensioner.
    1. Position the timing chain tensioner in a soft-jawed vise.
    2. Spread the ends of the ratchet wire clip apart.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

71. NOTE: If equipped with aluminum timing chain tensioner.
    NOTE: Do not remove the locking pin until the tensioner bolts are tightened.
    1. Install the timing chain tensioner and the bolts.

       Torque: 89 lb.in (10 Nm)

    2. Remove the locking pin.

    Courtesy of FORD MOTOR COMPANY

    NOTE: If equipped with cast iron timing chain tensioner.
    NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.
72. NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

    Using the edge of a vise, compress the timing chain tensioner plunger.

    Courtesy of FORD MOTOR COMPANY

73. Using a small pick, push back and hold the ratchet mechanism.

    Courtesy of FORD MOTOR COMPANY

74. While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

    Courtesy of FORD MOTOR COMPANY

75. Install a locking pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: If equipped with cast iron timing chain tensioner.
    NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

    Install the timing chain tensioner and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

77. NOTE: If equipped with cast iron timing chain tensioner.

    Remove the locking pin.

    Courtesy of FORD MOTOR COMPANY

78. NOTE: Use an open-ended wrench to prevent the component from turning.

    Tighten the exhaust VCT unit bolt in 2 stages.

    Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: 60 deg.

    Courtesy of FORD MOTOR COMPANY

79. NOTE: Use an open-ended wrench to prevent the component from turning.

    Tighten the intake VCT unit bolt in 2 stages.

    Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: 60 deg.

    Courtesy of FORD MOTOR COMPANY

80. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of silicone sealant.

    Clean the engine front cover sealing surfaces. Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

81. NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

    Apply silicone sealant.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

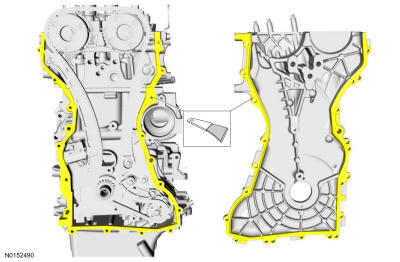

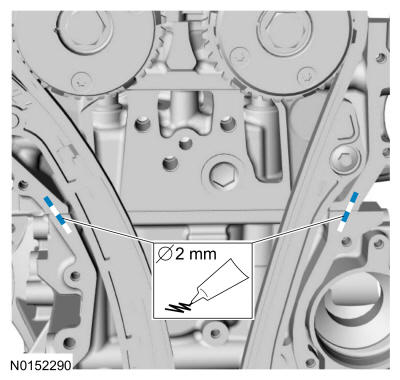

82. NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

    Apply beads of silicone sealant that are 2 mm (0.078 in) in diameter and 5 mm (0.19 in) in length across the cylinder head and cylinder block joint areas.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

83. Install the engine front cover and the fasteners and tighten in the sequence shown.

    Torque: Bolts 1 - 3: 35 lb.ft (48 Nm) Bolts 4 - 22: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

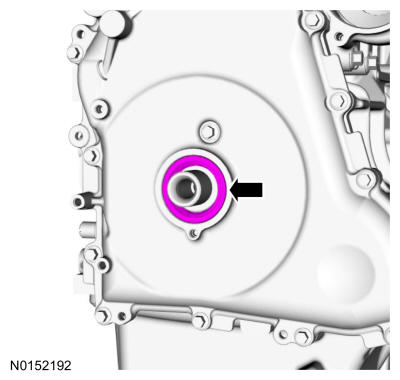

84. NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

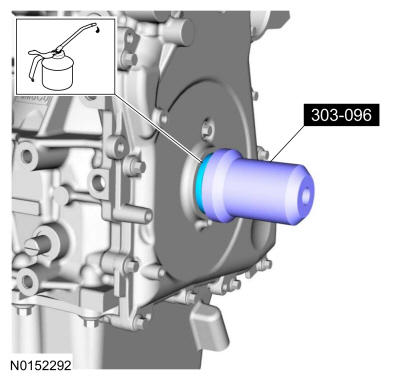

    Lubricate with clean engine oil and using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

85. NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.
    NOTE: Early build engines are equipped with a diamond washers on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

    If equipped, install the diamond washer onto the crankshaft.

    Courtesy of FORD MOTOR COMPANY

86. Lubricate the crankshaft pulley with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

87. Install the crankshaft pulley.

    Courtesy of FORD MOTOR COMPANY

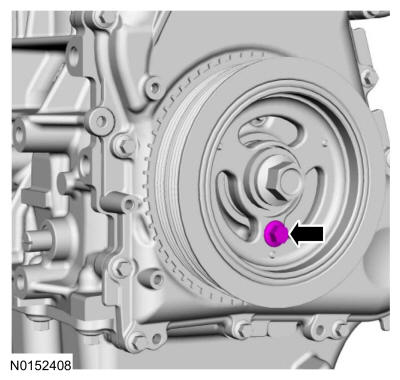

88. NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

    Install an M6 bolt.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be installed using hand tools only.

    Using a strap wrench, tighten the crankshaft pulley. Use the General Equipment: Strap Wrench

    Torque: Stage 1: 74 lb.ft (100 Nm) Stage 2: 90 deg.

    Courtesy of FORD MOTOR COMPANY

90. Remove.

    Courtesy of FORD MOTOR COMPANY

91. NOTE: Do not tighten the CKP sensor bolts at this time.

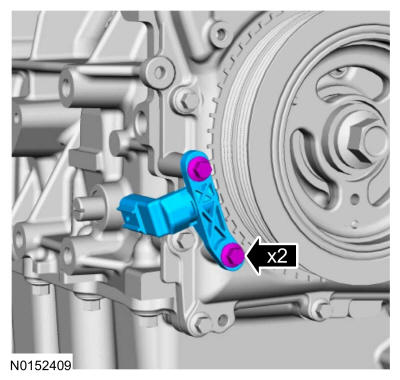

    Install the CKP sensor and the bolts finger-tight.

    Courtesy of FORD MOTOR COMPANY

92. Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

93. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    Courtesy of FORD MOTOR COMPANY

94. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

95. Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

    Courtesy of FORD MOTOR COMPANY

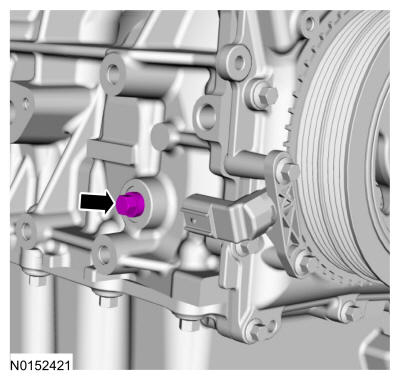

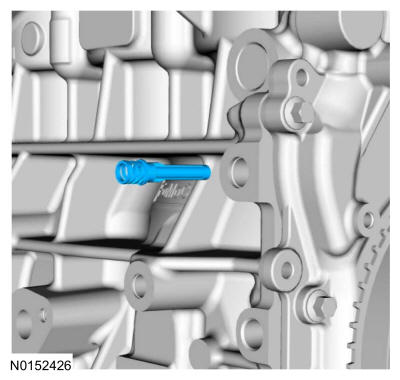

96. Install the engine plug bolt.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

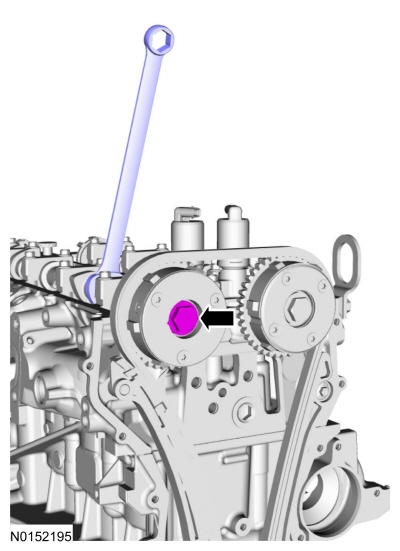

97. Using a wrench on the flats of the intake camshaft to prevent cam rotation, install the brake vacuum pump adapter.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

98. Clean the camshaft rear bearing cap.

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

99. NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of gasket maker application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

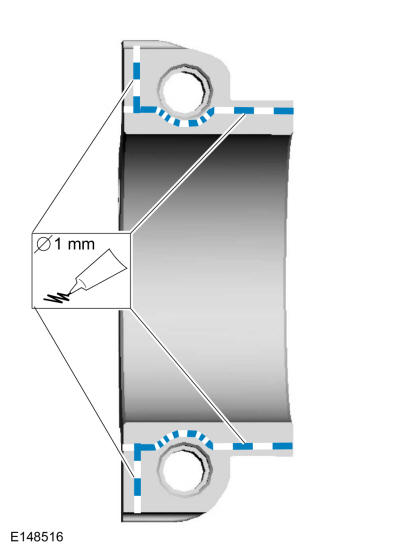

    Apply a 1 mm bead of gasket maker.

    Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

100. NOTE: Wipe off any excess gasket maker from the vacuum pump sealing surface of the cylinder head and camshaft cap.

     Install camshaft rear bearing cap and the bolts.

     Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

     Courtesy of FORD MOTOR COMPANY

101. Install a new CHT sensor.

     Torque: 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

102. NOTE: Do not use compressed air or the Fuel Injector Brush to clean the tip of the fuel injectors. Failure to follow this instruction may result in damage to the fuel injectors.
     NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

     Using the special tool, clean the fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.

     Courtesy of FORD MOTOR COMPANY

103. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
     1. Install the Teflon® Seal Guide onto the fuel injector tip. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
     2. NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.
        NOTE: Make sure that new lower fuel injector Teflon® seals are installed.

        Install the new Teflon® seals onto the Teflon® Seal Guide, using the Pusher Tool, slide the Teflon® seals along the Teflon® Seal Guide.

     3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
     4. Remove the special tools.

     Courtesy of FORD MOTOR COMPANY

104. NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
     1. Massage and warm the Teflon® seal with your fingers before the Teflon® seal sizer tool is installed. This will aid in installing the Teflon® seal sizer tool.
     2. NOTE: The beveled opening of the Teflon® seal sizer tool goes away from the seal.

        Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Use Special Service Tool: 303-1567 Sizer, Teflon Seal.

     3. Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool.
     4. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.

     Courtesy of FORD MOTOR COMPANY

105. NOTE: Make sure that new fuel injector support rings and a new fuel injector O-ring seal are installed.
     1. NOTE: The new the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.

        Install the new the fuel injector support rings.

     2. Install the new fuel injector O-rings.
     3. Install the new the fuel injector clips.

     Courtesy of FORD MOTOR COMPANY

106. NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.
     NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

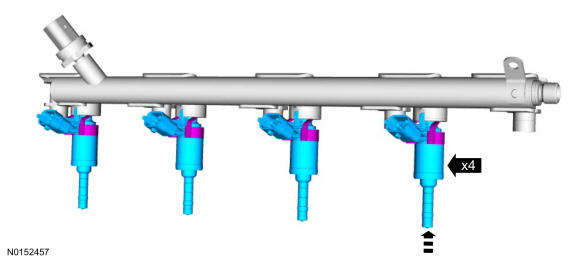

     Install the fuel injectors in the fuel rail.

     Courtesy of FORD MOTOR COMPANY

107. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
     • NOTE: No sudden impact force is allowed.
       NOTE: Make sure that new fuel rail bolts are installed.

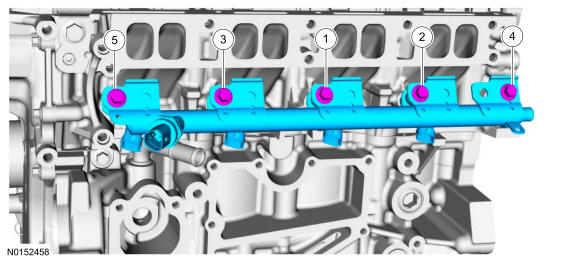

       Press the fuel rail down into the cylinder head injector bores by hand, then install and hand start the new number 3 and 4 bolts.

     • Release the force before tightening.
     • Install the remaining new bolts. Tighten all of the fuel rail bolts in the sequence shown and in the following 5 stages.

       Torque: Stage 1: Tighten to: 89 lb.in (10 Nm) Stage 2: Back off to: 0 lb.in (0 Nm) Stage 3: Wait 5s Stage 4: Tighten to: : 124 lb.in (14 Nm) Stage 5: Tighten an additional: : 30 deg.

     Courtesy of FORD MOTOR COMPANY

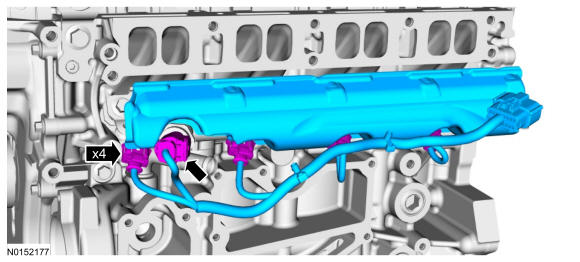

108. • Connect the fuel rail electrical connectors.
     • Install the fuel rail shield.

     Courtesy of FORD MOTOR COMPANY

109. NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

     If removed, using the special tools, install the VCT seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

     Courtesy of FORD MOTOR COMPANY

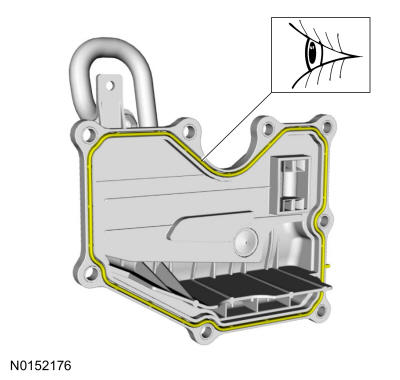

110. Install a new valve cover gasket.

     Courtesy of FORD MOTOR COMPANY

111. Apply a 5.5 mm bead of silicone sealant.

     Material: : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

112. NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned with metal surface prep.

     Install the valve cover and tighten the fasteners in the sequence shown.

     Material: : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

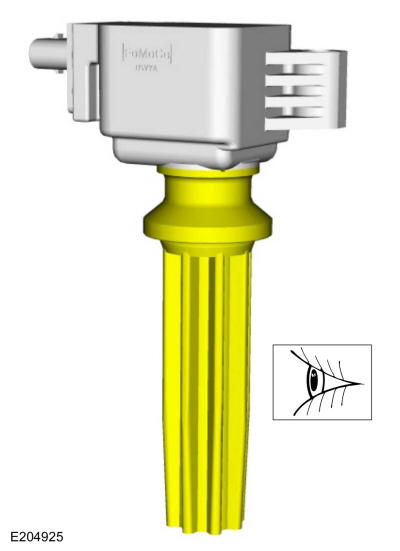

113. Inspect and replace any ignition coil-on-plug rubber boots with cracks, rips or tears.

     Courtesy of FORD MOTOR COMPANY

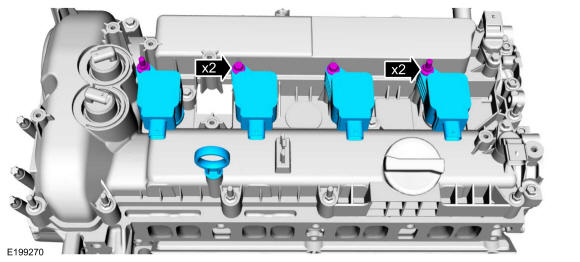

114. • Install the ignition coil-on-plugs and the fasteners.

       Torque: 53 lb.in (6 Nm)

     • Install the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

115. Inspect and replace if damaged.

     Courtesy of FORD MOTOR COMPANY

116. Install the coolant outlet and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

117. Install the studs and the turbocharger gasket.

     Torque: 150 lb.in (17 Nm)

     Courtesy of FORD MOTOR COMPANY

118. Install the turbocharger and the new nuts.

     Torque: 37 lb.ft (50 Nm)

     Courtesy of FORD MOTOR COMPANY

119. NOTE: Do not reuse the turbocharger oil filter, a new part must be installed.

     Install a new turbocharger oil supply filter.

     Courtesy of FORD MOTOR COMPANY

120. NOTE: Install a new O-ring seal and new sealing washers.

     Lubricate and install the new turbocharger oil supply tube O-ring seal with clean engine oil. Install the new washers and the bolt.

     Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

     Courtesy of FORD MOTOR COMPANY

121. NOTE: The oil feed hose must be fully seated prior to fastener rundown.
     1. Install the turbocharger oil supply tube and the bolt.

        Torque: 89 lb.in (10 Nm)

     2. Tighten the bolt.

        Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

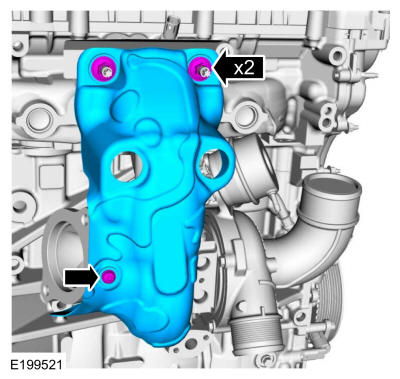

122. Install the heat shield, nuts and the bolt finger-tight.

     Courtesy of FORD MOTOR COMPANY

123. 1. Tighten.

        Torque: 37 lb.ft (50 Nm)

     2. Tighten.

        Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

124. NOTE: Install a new O-ring seal and a new gasket.

     Install a new turbocharger O-ring seal and lubricate with clean engine oil and install a new turbocharger gasket.

     Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

     Courtesy of FORD MOTOR COMPANY

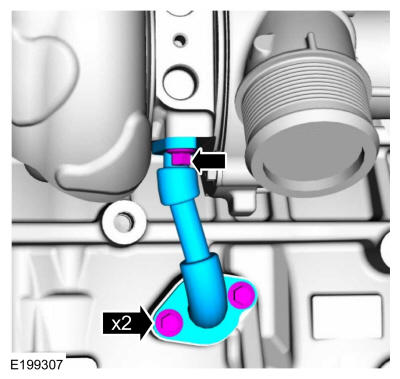

125. NOTE: The oil drain hose must be fully seated prior to fastener rundown.

     Install the turbocharger-to-cylinder block oil return pipe and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

126. • Inspect and lubricate the O-ring seals with engine coolant.
     • Discard the washers and replace with new washers.

     Courtesy of FORD MOTOR COMPANY

127. 1. Fit the O-ring end of the turbocharger coolant tubes to the turbocharger. The lower coolant inlet tube goes into the turbocharger first. Install the bolt.

        Torque: 89 lb.in (10 Nm)

     2. Install the bolt for the turbocharger coolant inlet tube.

        Torque: 27 lb.ft (37 Nm)

     3. Connect the turbocharger coolant outlet tube. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

128. • Install the turbocharger vacuum valve and the nuts.

       Torque: 89 lb.in (10 Nm)

     • Connect the turbocharger vacuum hose. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

129. Lubricate the coolant pump O-ring seal with clean engine coolant.

     Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

     Courtesy of FORD MOTOR COMPANY

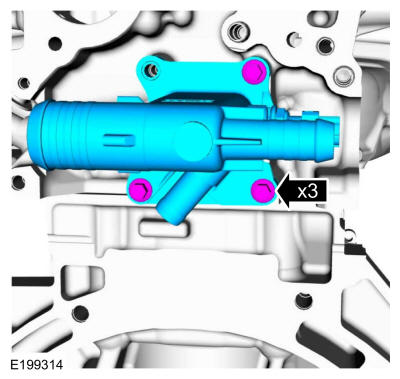

130. Install the coolant pump and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

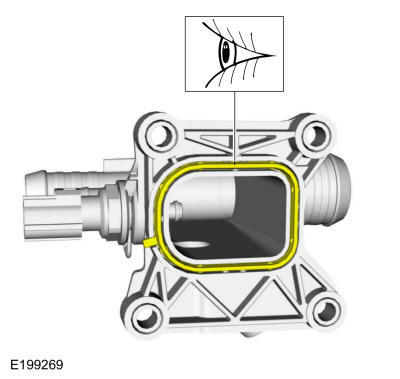

131. Inspect and replace the thermostat housing gasket, if damaged.

     Courtesy of FORD MOTOR COMPANY

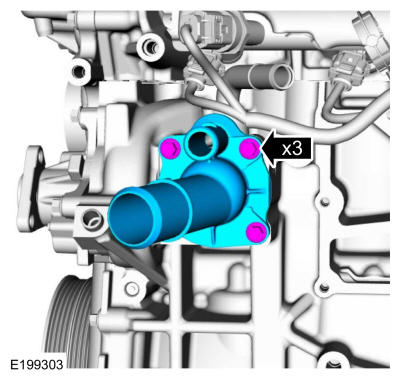

132. Install the thermostat housing and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

133. NOTE: The high-pressure fuel pump tappet cam lobe must be positioned at zero lift before installing the high-pressure fuel pump drive unit.

     Rotate the crankshaft to position the camshaft at zero lift.

     Courtesy of FORD MOTOR COMPANY

134. Inspect and replace the high-pressure fuel pump drive unit, if damaged.

     Courtesy of FORD MOTOR COMPANY

135. Install the high-pressure fuel pump drive unit and the stud bolts and tighten in 2 stages.

     Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 60 deg.

     Courtesy of FORD MOTOR COMPANY

136. Inspect the high-pressure fuel pump tappet for flat spots or scoring, especially in the indicated areas. If any damage is found, inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install new components as necessary.

     Courtesy of FORD MOTOR COMPANY

137. Lubricate with clean engine oil and install the high-pressure fuel pump tappet.

     Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

     Courtesy of FORD MOTOR COMPANY

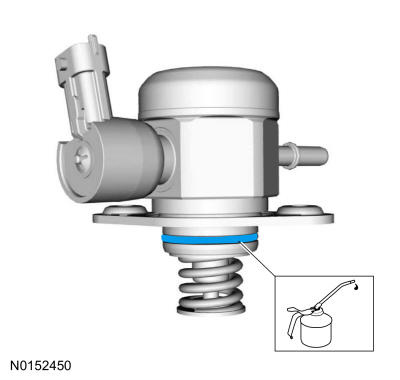

138. Install a new high-pressure fuel pump O-ring seal.

     Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

     Courtesy of FORD MOTOR COMPANY

139. NOTE: Install new bolts.

     Install the high-pressure fuel pump and alternately tighten each bolt one complete revolution until seated in 2 stages.

     Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 55 deg.

     Courtesy of FORD MOTOR COMPANY

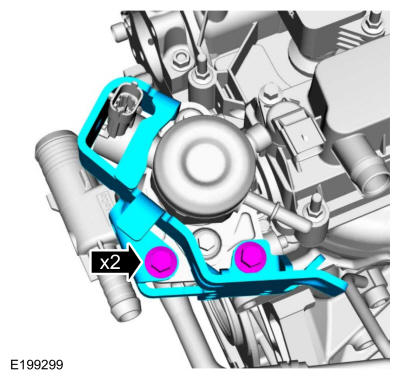

140. Install the high-pressure fuel pump bracket and the bolts.

     Torque: 150 lb.in (17 Nm)

     Courtesy of FORD MOTOR COMPANY

141. NOTE: Install a new fuel tube.
     • Install the fuel tube, nut and the bolt finger-tight.
     • Install the flare nuts finger-tight.

     Courtesy of FORD MOTOR COMPANY

142. Tighten the flare nuts in 2 stages.

     Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 30 deg.

     Courtesy of FORD MOTOR COMPANY

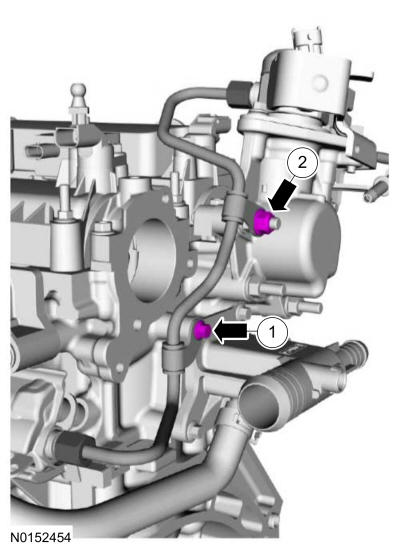

143. 1. Tighten the bolt.

        Torque: 89 lb.in (10 Nm)

     2. Tighten the nut.

        Torque: 150 lb.in (17 Nm)

     Courtesy of FORD MOTOR COMPANY

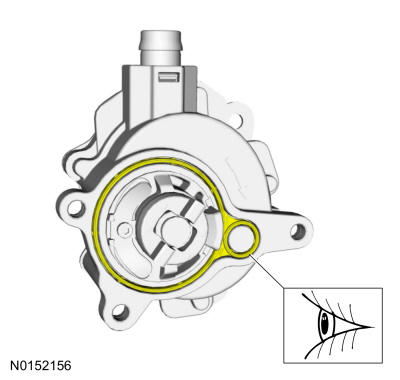

144. Inspect and replace the brake vacuum pump gasket, if damaged.

     Courtesy of FORD MOTOR COMPANY

145. Install the brake vacuum pump and the bolts

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

146. Inspect and replace the crankcase vent separator gasket, if damaged.

     Courtesy of FORD MOTOR COMPANY

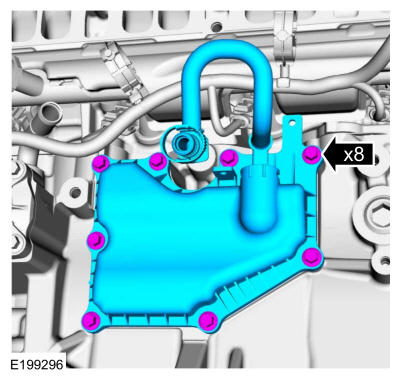

147. Install the crankcase vent separator and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

148. NOTE: The forward KS must be installed in the 6 o'clock position and the rearward KS must be installed in the 3 o'clock position as shown in the graphic. Failure to follow these instructions may result in damage to the engine.

     Install the KS in their original position and install the bolts.

     Torque: 177 lb.in (20 Nm)

     Courtesy of FORD MOTOR COMPANY

149. • Install the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     • Attach the coolant hose retainers.

     Courtesy of FORD MOTOR COMPANY

150. Inspect and replace if damaged.

     Courtesy of FORD MOTOR COMPANY

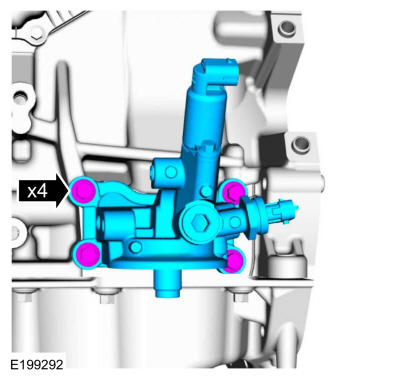

151. Install the oil filter adapter and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

152. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

     Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be reused.

     Courtesy of FORD MOTOR COMPANY

153. • Install the intake manifold and connect the crankcase vent oil separator tube.
     • Connect and attach the KS electrical connectors.

     Courtesy of FORD MOTOR COMPANY

154. Position the intake manifold and install the bolts.

     Torque: 177 lb.in (20 Nm)

     Courtesy of FORD MOTOR COMPANY

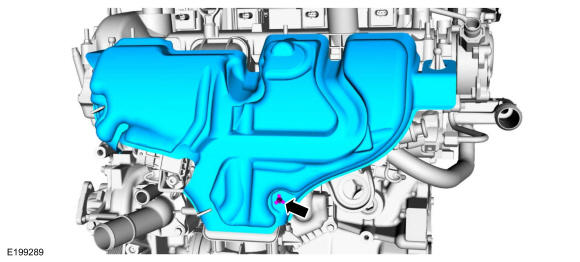

155. Install the intake manifold insulator and the retainer.

     Courtesy of FORD MOTOR COMPANY

156. 1. Install the bracket and the stud.

        Torque: 80 lb.in (9 Nm)

     2. Install the bolt.

        Torque: 18 lb.ft (25 Nm)

     3. Install the nut.

        Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

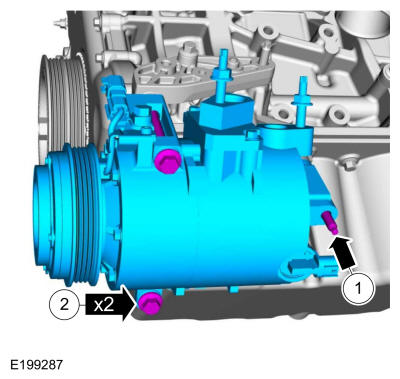

157. 1. Install the A/C compressor stud.

        Torque: 80 lb.in (9 Nm)

     2. Install the A/C compressor and the bolts.

        Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

158. Install the generator and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

159. Install the accessory drive belt tensioner and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

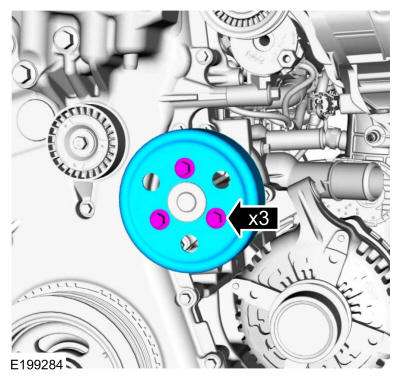

160. Finger-tight.

     Courtesy of FORD MOTOR COMPANY

161. 1. Install tool and release the tension on the accessory drive belt tensioner.
     2. Install the accessory drive belt.
     3. Release the tool and remove.

     Courtesy of FORD MOTOR COMPANY

162. Tighten.

     Torque: 177 lb.in (20 Nm)

     Courtesy of FORD MOTOR COMPANY

163. 1. NOTE: The coolant tube must be fully seated prior to tighten the bolt.

        Install the coolant tube and bolt.

        Torque: 97 lb.in (11 Nm)

     2. Install the coolant tube nut.

        Torque: 115 lb.in (13 Nm)

     Courtesy of FORD MOTOR COMPANY

164. Install and connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

165. Position the coolant hoses and install clamp. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

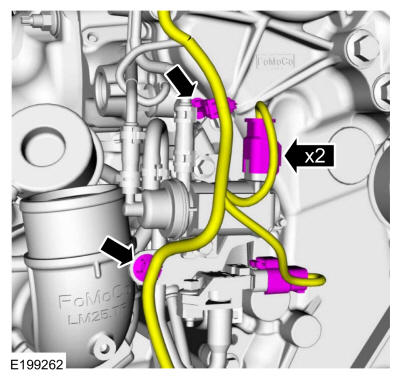

166. Position and attach the vacuum tube retainers.

     Courtesy of FORD MOTOR COMPANY

167. Install the fuel tube.

     Courtesy of FORD MOTOR COMPANY

168. • Install the engine wiring harness and attach the wiring harness retainers.
     • Connect the CMP sensor electrical connectors.
     • Connect the ignition coil-on-plug electrical connectors.
     • Connect the VCT oil control solenoid electrical connectors.

     Courtesy of FORD MOTOR COMPANY

169. Connect the throttle body electrical connector and wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

170. • Install the high-pressure fuel pump noise insulator.
     • Connect the high-pressure fuel pump electrical connector.

     Courtesy of FORD MOTOR COMPANY

171. • Connect the ECT sensor electrical connector and wiring harness retainer.
     • Attach the HO2S and the catalyst monitor sensor electrical connectors.

     Courtesy of FORD MOTOR COMPANY

172. • Connect and attach the fuel rail wiring harness electrical connector.
     • Attach the wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

173. Connect the vacuum tube on the brake vacuum pump.

     Courtesy of FORD MOTOR COMPANY

174. • Install the EVAP canister purge valve and the nuts.

       Torque: 97 lb.in (11 Nm)

     • Connect the EVAP canister purge valve electrical connector and wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

175. Connect the EVAP canister purge valve quick release couplings.

     Courtesy of FORD MOTOR COMPANY

176. Connect the MAPT sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

177. • Attach the wiring harness retainers.
     • Connect the CHT sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

178. • Install the ground wire and the bolt.

       Torque: 177 lb.in (20 Nm)

     • Attach the wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

179. • Attach the wiring harness retainers.
     • Connect the turbocharger vacuum control valve electrical connectors.

     Courtesy of FORD MOTOR COMPANY

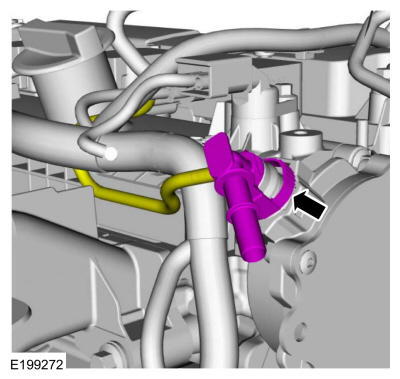

180. Connect the CKP sensor electrical connector and the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

181. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

     Courtesy of FORD MOTOR COMPANY

182. Remove engine from the mounting stand. Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

183. • NOTE: Special bolts are used for installation. Do not use standard bolts.

       Install the flexplate and the new bolts finger-tight.

     • Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
     • Tighten the bolts in sequence shown in 3 stages.

       Torque: Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 83 lb.ft (112 Nm)

Courtesy of FORD MOTOR COMPANY
