Rear Subframe - FWD: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

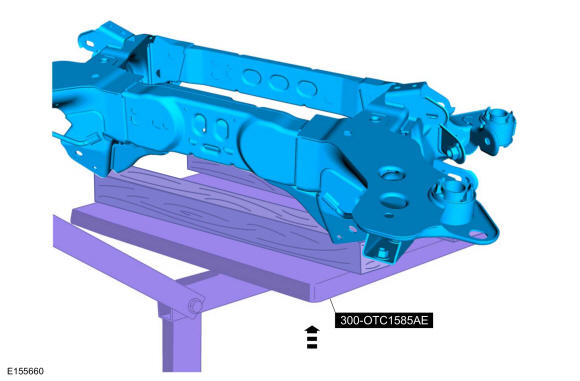

Raise the rear subframe and position it to the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

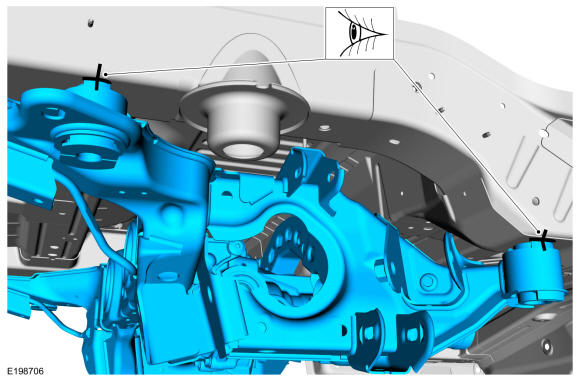

On both sides. Align the reference marks made during removal.

Courtesy of FORD MOTOR COMPANY

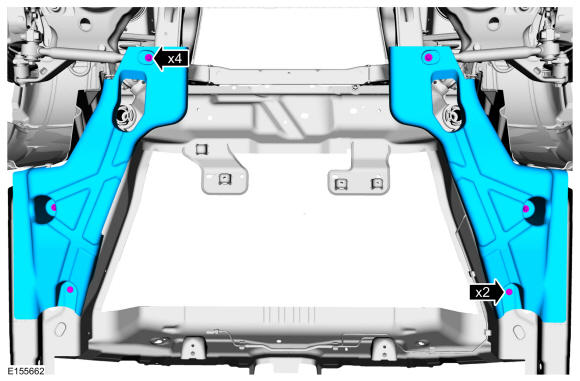

1. Position the rear subframe brackets and install the new rear subframe forward bolts.
  Torque: 129 lb.ft (175 Nm)

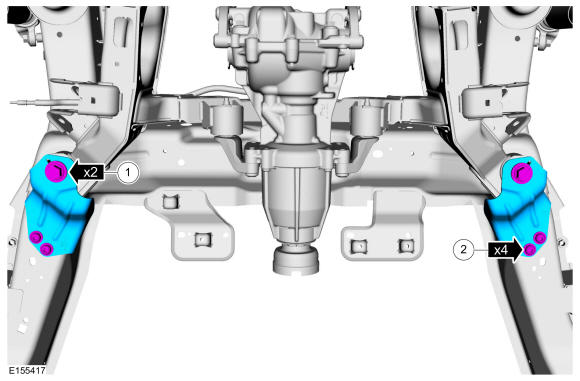

2. Install the new rear subframe bracket bolts.
  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY

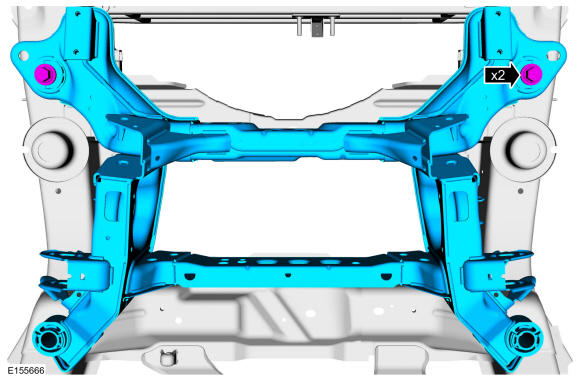

Install the new rear subframe rearward bolts.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear air deflectors and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the rear stabilizer bar. Refer to: Rear Stabilizer Bar .
Install the muffler and tail pipe. Refer to: Muffler and Tailpipe - 2.0L . Refer to: Muffler and Tailpipe - 2.7L . Refer to: Muffler and Tailpipe - 3.5L .
On both sides. Install the rear spring. Refer to: Spring .
On both sides. Install the rear toe link. Refer to: Toe Link .
