Rear Subframe - AWD: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

On both sides. Remove the rear halfshaft. Refer to: Rear Halfshaft .
On both sides. Remove the rear toe link. Refer to: Toe Link .
On both sides. Remove the rear spring. Refer to: Spring .
Remove the muffler and tailpipe. Refer to: Muffler and Tailpipe - 2.0L . Refer to: Muffler and Tailpipe - 2.7L . Refer to: Muffler and Tailpipe - 3.5L .
Remove the rear stabilizer bar. Refer to: Rear Stabilizer Bar .

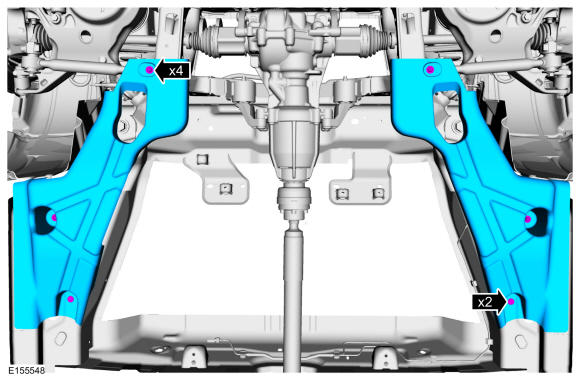

Remove the retainers and the rear air deflectors.

Courtesy of FORD MOTOR COMPANY

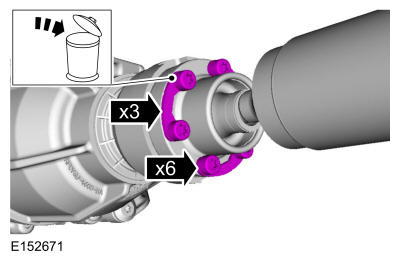

Remove and discard the rear driveshaft-to-rear differential flange bolts.

Courtesy of FORD MOTOR COMPANY

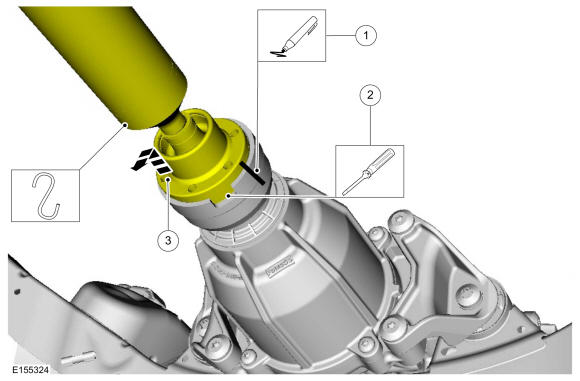

NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV-joint can result.
1. Index mark the driveshaft and rear differential pinion flange.
2. Use a screwdriver in the rear differential pinion flange to separate the driveshaft from the rear differential pinion flange.
3. Separate the rear driveshaft from the rear differential pinion flange and secure out of the way.
Courtesy of FORD MOTOR COMPANY

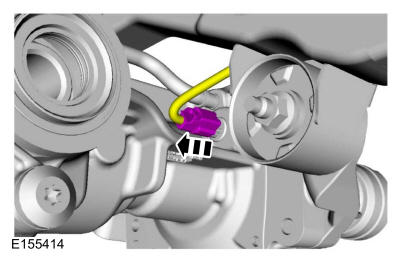

Disconnect the rear differential electrical connector.

Courtesy of FORD MOTOR COMPANY

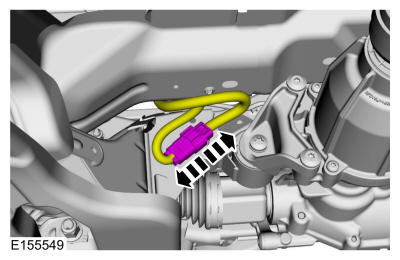

Disconnect the rear differential harness electrical connector.

Courtesy of FORD MOTOR COMPANY

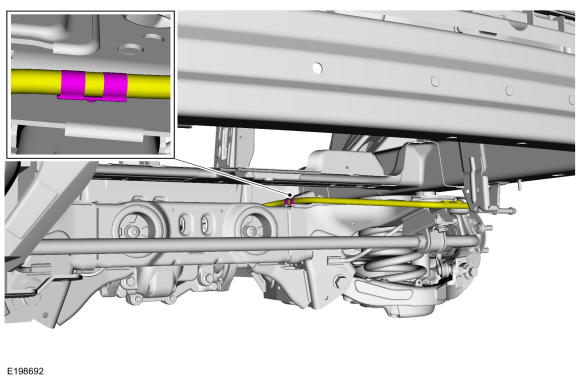

Detach the rear differential vent tube from the rear subframe.

Courtesy of FORD MOTOR COMPANY

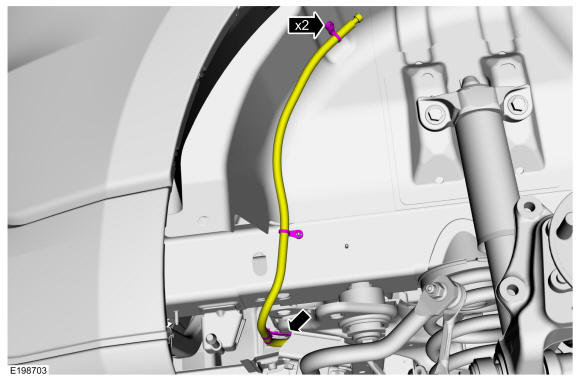

Detach the rear differential vent tube from under the RH rear wheel arch liner.

Courtesy of FORD MOTOR COMPANY

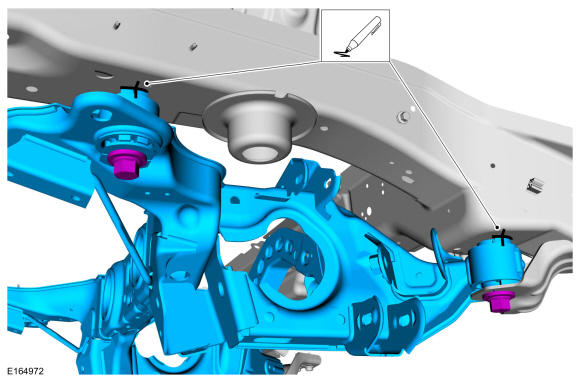

On both sides. Index mark the subframe.

Courtesy of FORD MOTOR COMPANY
Position the powertrain lift and wooden blocks under the rear subframe. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

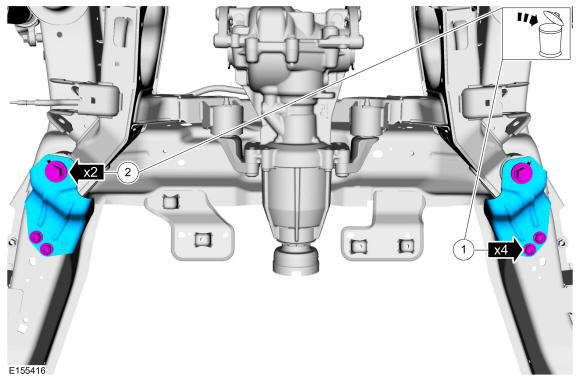

1. Remove and discard the subframe bracket bolts and remove the subframe brackets.
2. Remove and discard the rear subframe forward bolts.
Courtesy of FORD MOTOR COMPANY

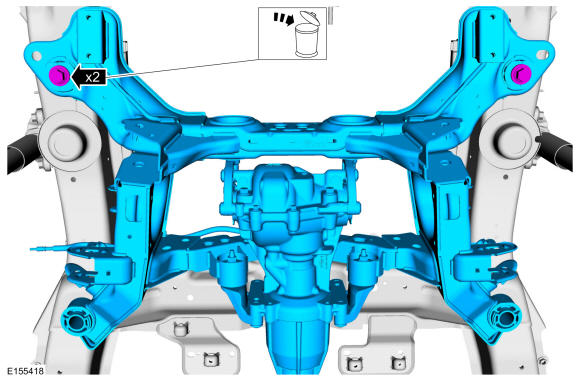

Remove and discard the rear subframe rearward bolts.

Courtesy of FORD MOTOR COMPANY

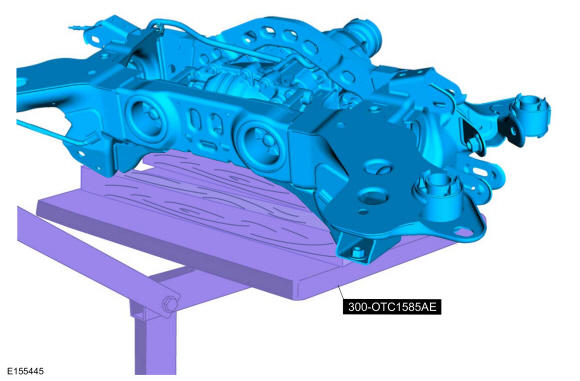

Lower the rear subframe from the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
