Side Airbag: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.
NOTE: Removal steps in this procedure may contain installation details.

All seats

  1. Remove the front seat. Refer to: Front Seat .

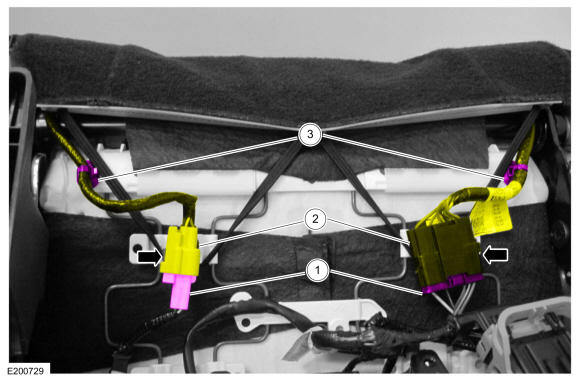

    1. Release the locking tab(s) and disconnect the wire harness electrical connector(s).
    2. Detach the wire harness connector retainer(s) from the seat track.
    3. Detach the wire harness retainer(s) from the seat track and position the wire harness(es) aside.
    GFD283931Courtesy of FORD MOTOR COMPANY

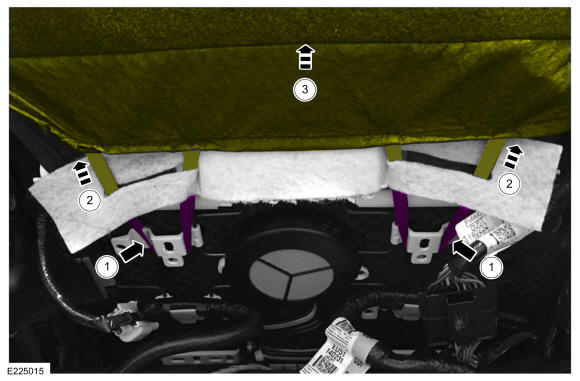

  3. NOTE: Seat backrest blower motor with snorkel shown.
    NOTE: Follow the unique instructions or graphics for this step in the installation for backrest blower motor snorkel routing.

    1. Detach the backrest cover straps.
    2. If equipped. Route the backrest cover straps through the backrest blower motor snorkel.
    3. Position the backrest cover upward.

    GFD283905Courtesy of FORD MOTOR COMPANY

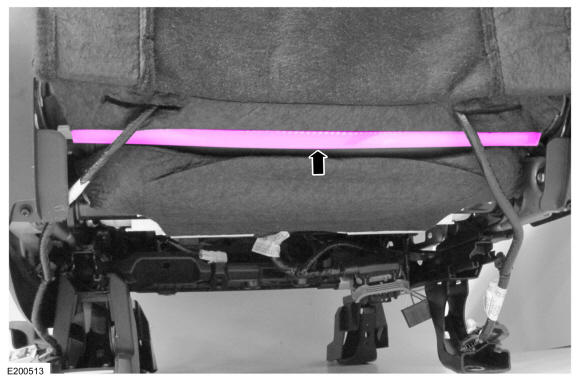

  4. Release the backrest cover lower J-clip.
    GFD283932Courtesy of FORD MOTOR COMPANY

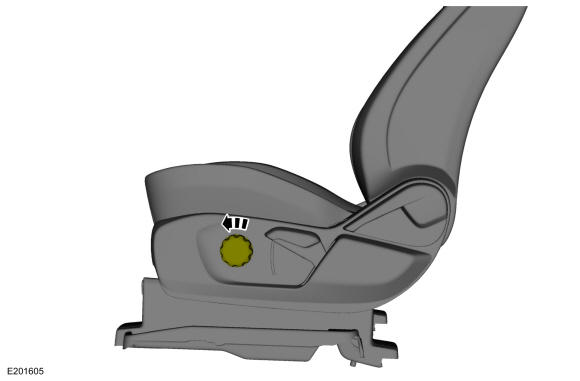

    Manual driver seat

  5. Adjust the manual lumbar to the fully relaxed position.
    GFD283933Courtesy of FORD MOTOR COMPANY

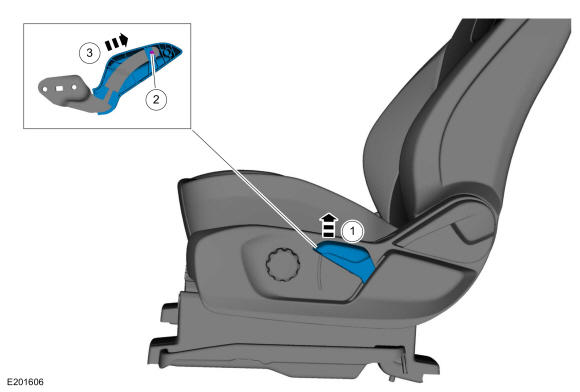

  6. Remove the height adjusting handle.

    1. Raise the height adjusting handle.
    2. Release the locking tab.
    3. Slide the height adjusting handle forward.

    GFD283934Courtesy of FORD MOTOR COMPANY

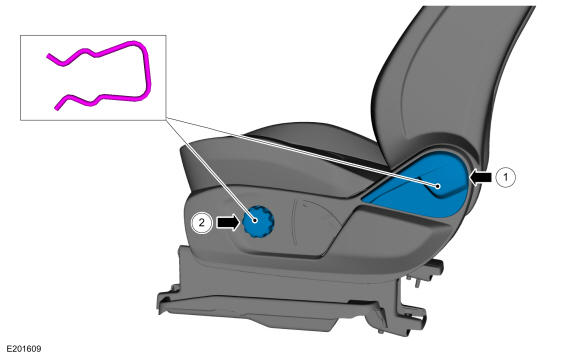

    1. Remove the clip and the recline handle.
    2. Remove the clip and the manual lumbar knob.
    GFD283935Courtesy of FORD MOTOR COMPANY

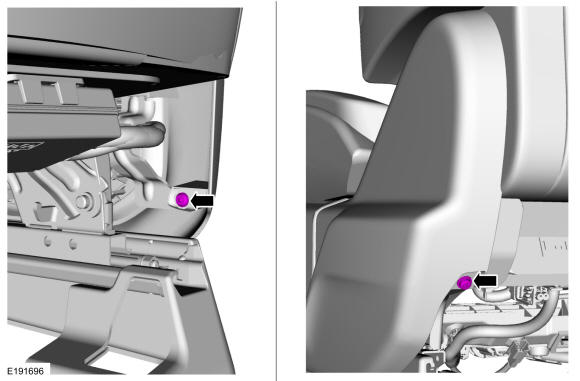

  8. Remove the side shield screws.
    GFD283936Courtesy of FORD MOTOR COMPANY

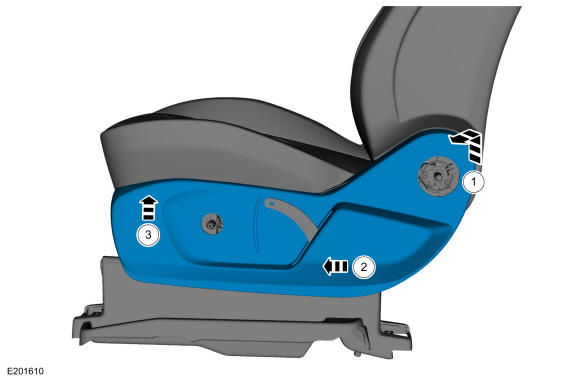

  9. Remove the side shield.

    1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
    2. Slide the side shield forward.
    3. Lift up on the front of the side shield and slide the side shield from the height adjusting handle lever.

    GFD283937Courtesy of FORD MOTOR COMPANY

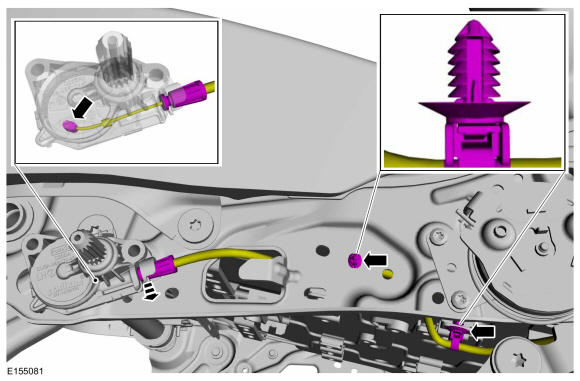

  10. Position the manual lumbar assembly cable away from the seat track.

    • Disconnect the cable from the manual lumbar actuator.

    • Detach the cable retainers from the seat track.

    GFD283938Courtesy of FORD MOTOR COMPANY

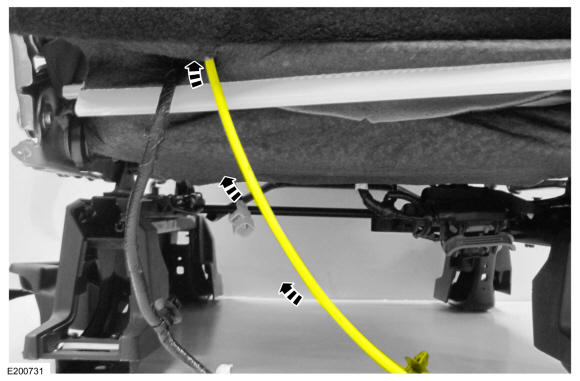

  11. Route the manual lumbar cable through the backrest cover opening.
    GFD283939Courtesy of FORD MOTOR COMPANY

    All seats

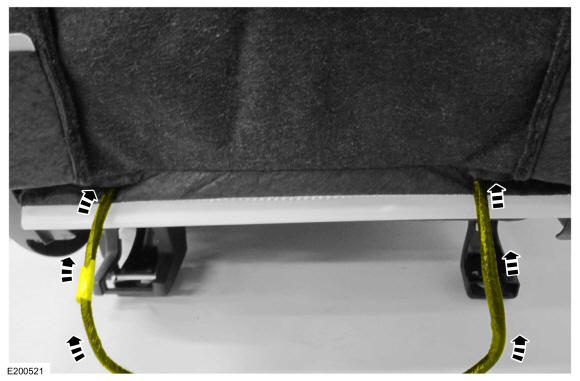

  12. NOTE: Power seat shown, manual seat similar.

    Route the backrest wire harness(es) through the backrest cover opening(s).

    GFD283940Courtesy of FORD MOTOR COMPANY

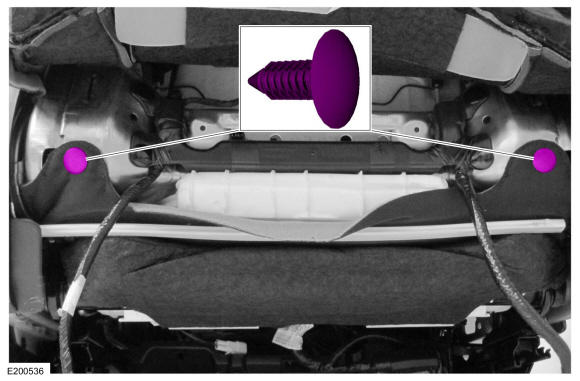

  13. Remove the backrest cover pin-type retainers.
    GFD283941Courtesy of FORD MOTOR COMPANY

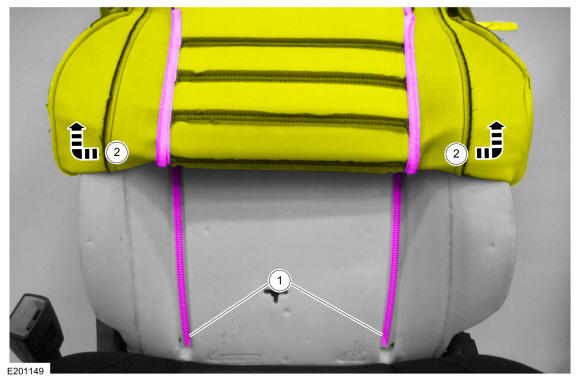

  14. NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

    Partially invert the backrest cover enough to access the side airbag deployment chute retainer.

    1. Release the hook and loop strips.
    2. Invert the backrest cover.

    GFD283942Courtesy of FORD MOTOR COMPANY

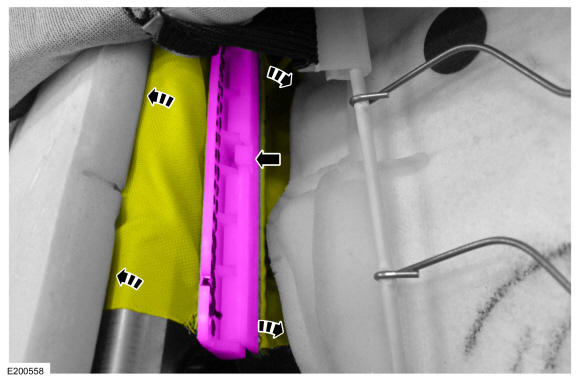

  15. Release the side airbag deployment chute retainer and position the chute through the backrest foam opening.
    GFD283943Courtesy of FORD MOTOR COMPANY

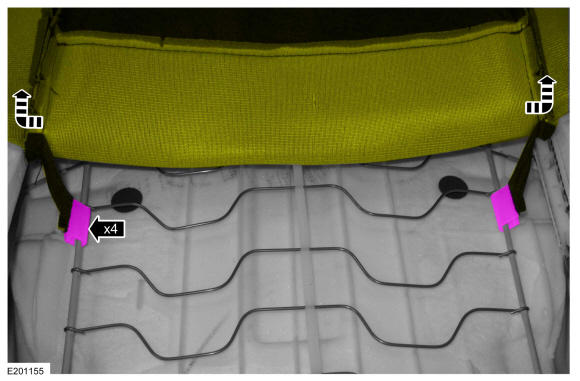

  16. Partially invert the backrest cover and release the backrest cover J-clips.
    GFD283944Courtesy of FORD MOTOR COMPANY

    Seats without climate control

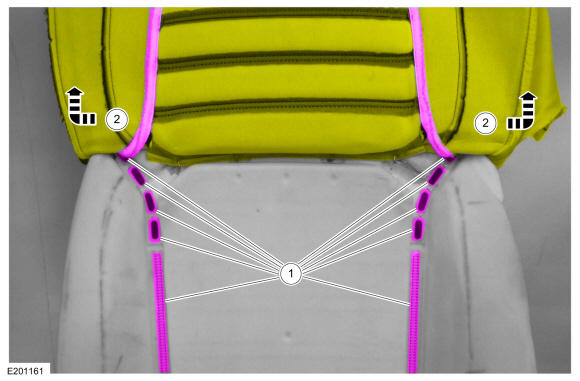

  17. NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

    Partially invert the backrest cover to the hog rings.

    1. Release the hook and loop strips.
    2. Invert the backrest cover.

    GFD283945Courtesy of FORD MOTOR COMPANY

    Seats with climate control

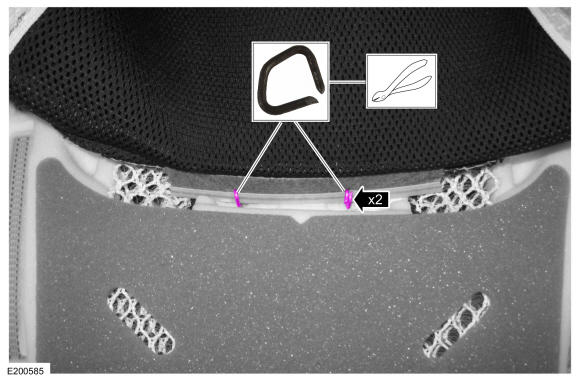

  18. NOTE: Follow the unique instructions or graphic for this step in the installation.

    Remove the hog rings.

    GFD283946Courtesy of FORD MOTOR COMPANY

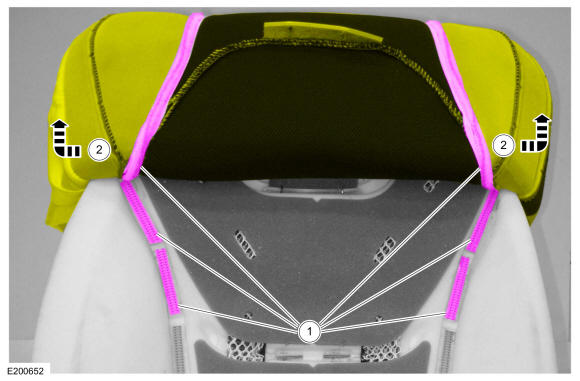

  19. NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

    Partially invert the backrest cover enough to access the upper hog rings.

    1. Release the hook and loop strips.
    2. Invert the backrest cover.

    GFD283947Courtesy of FORD MOTOR COMPANY

    All seats

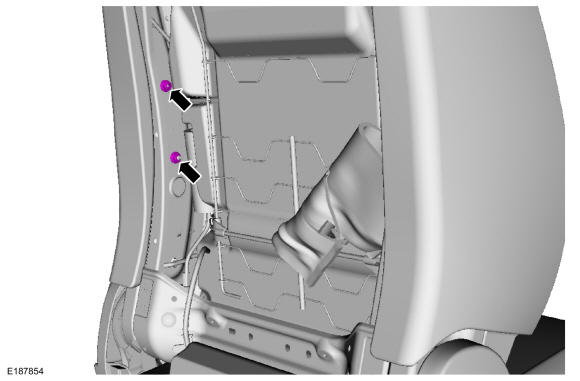

  20. Remove the side airbag nuts.

    Torque: 53 lb.in (6 Nm)

    GFD283948Courtesy of FORD MOTOR COMPANY

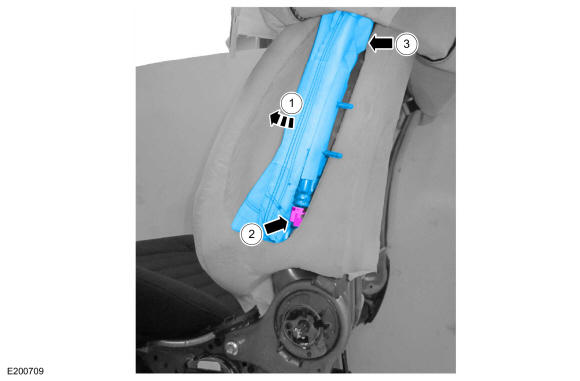

    1. Detach the side airbag studs from the backrest frame and position the side airbag out of the backrest foam pad pocket.
    2. Disconnect the side airbag electrical connector.
    3. Remove the side airbag.
GFD283949Courtesy of FORD MOTOR COMPANY
