Driver Airbag - Vehicles With: Adaptive Steering: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered before reconnecting the component. Refer to Supplemental Restraint System (SRS) Depowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

NOTE: Dual stage driver airbag shown, single stage driver airbag similar.

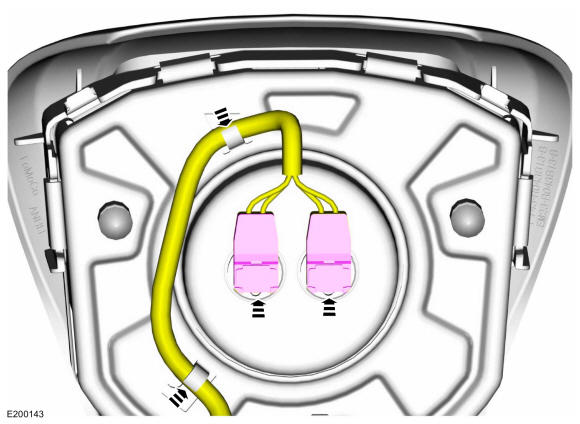

Connect the driver airbag electrical connectors.

Courtesy of FORD MOTOR COMPANY

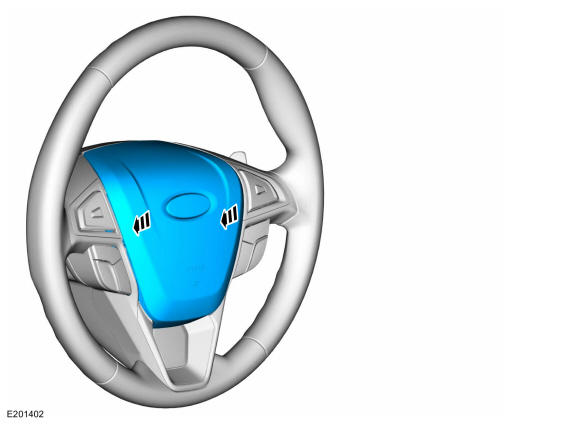

Align the driver airbag to the steering wheel and push in, engaging the driver airbag retainers to the spring clips.

Courtesy of FORD MOTOR COMPANY
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
