System Diagram - Extended Power Module [BECMB]

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

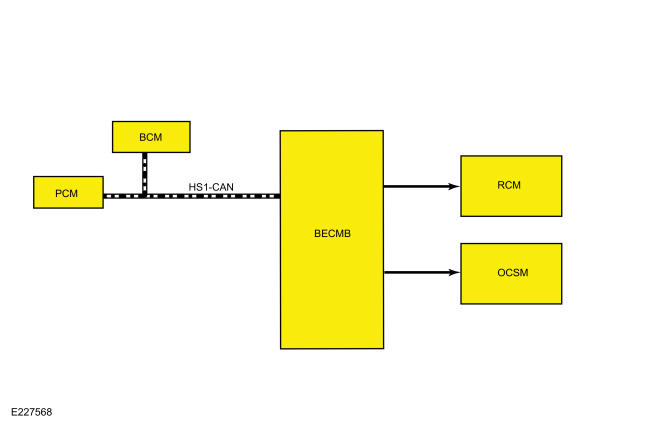

GFD283849Courtesy of FORD MOTOR COMPANY
GFD283850Courtesy of FORD MOTOR COMPANY
Item Description
1 HS1-CAN
2 OCSM
3 RCM
4 BECMB
5 PCM
6 BCM
