Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|

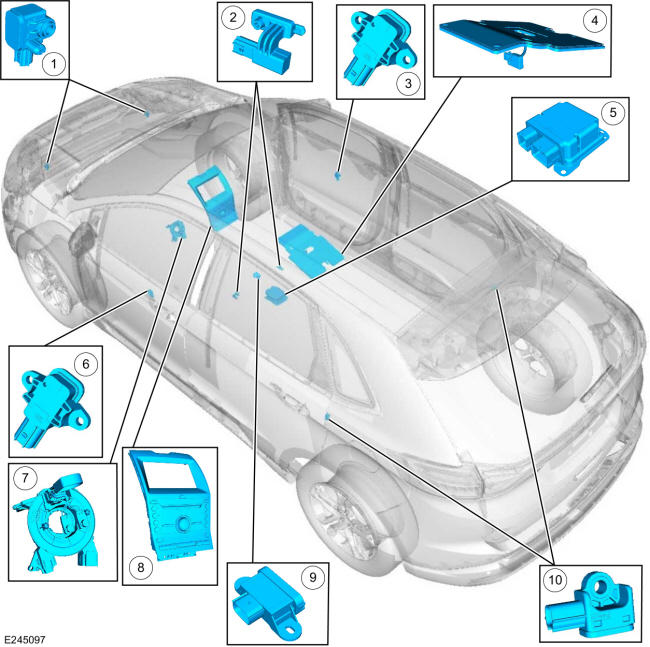

| 1 | LH and RH front impact severity sensors |
| 2 | Seat position sensors |
| 3 | Passenger front door side impact sensor |
| 4 | OCSM (includes OCS sensor and gel-filled bladder) |
| 5 | RCM |
| 6 | Driver front door side impact sensor |
| 7 | Clockspring |
| 8 | FCIM (includes PAD indicator) |
| 9 | BECMB |
| 10 | LH and RH C-pillar side impact sensors |
| Item | Description |
|---|---|

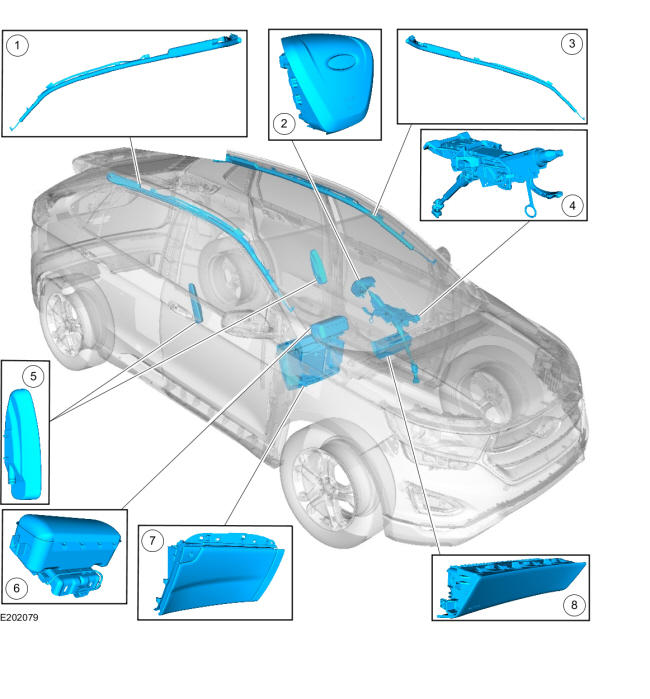

| 1 | RH side air curtain |
| 2 | Driver airbag |
| 3 | LH side air curtain |
| 4 | Deployable steering column |
| 5 | Driver and passenger side airbags |
| 6 | Passenger airbag (includes canister vent) |
| 7 | Passenger knee airbag (part of glove compartment door) |
| 8 | Driver knee airbag |
| Item | Description |
|---|---|

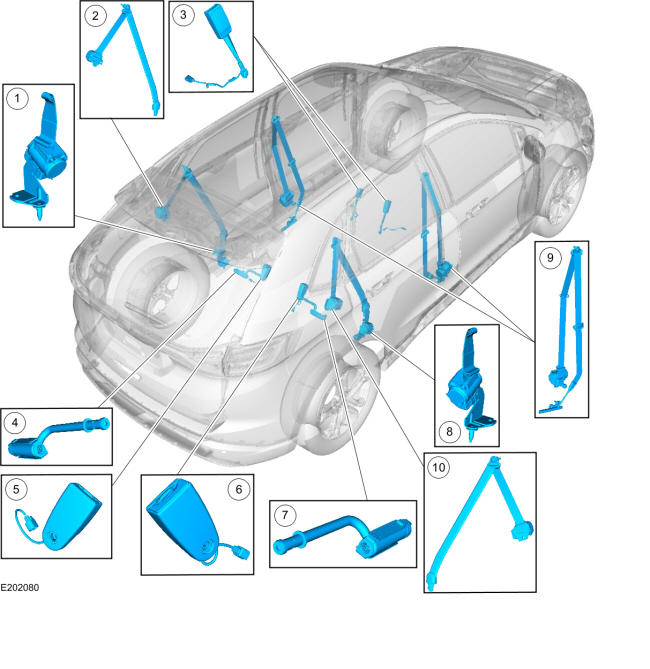

| 1 | LH rear outer seatbelt lower retractor (if equipped with inflatable seatbelts) |
| 2 | LH rear outer seatbelt upper retractor (if equipped with inflatable seatbelts) |
| 3 | Driver and front passenger seatbelt buckles (each includes buckle sensor, front passenger buckle also includes Belt Tension Sensor (BTS)) |
| 4 | LH rear outer seatbelt inflator (if equipped with inflatable seatbelts) |
| 5 | LH rear outer seatbelt buckle assembly (if equipped with inflatable seatbelts) (includes seatbelt buckle and buckle sensor) |
| 6 | RH rear outer seatbelt buckle assembly (if equipped with inflatable seatbelts) (includes seatbelt buckle and buckle sensor) |
| 7 | RH rear outer seatbelt inflator (if equipped with inflatable seatbelts) |
| 8 | RH rear outer seatbelt lower retractor (if equipped with inflatable seatbelts) |
| 9 | Driver and front passenger seatbelt retractors (each includes retractor pretensioner and anchor pretensioner, front passenger retractor also includes adaptive load limiter) |
| 10 | RH rear outer seatbelt upper retractor (if equipped with inflatable seatbelts) |
