Seatbelt Shoulder Height Adjuster: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Remove the B-pillar upper trim panel. Refer to: B-Pillar Trim Panel .

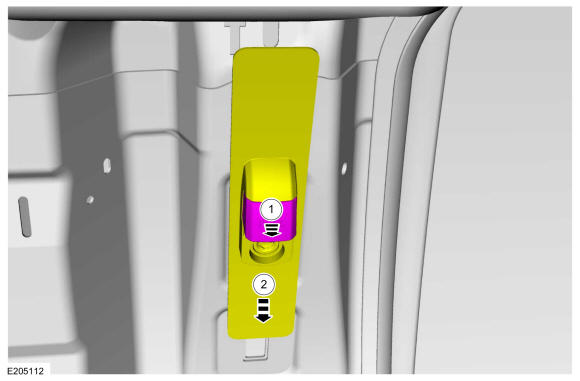

Slide the height adjuster down to access the bolt.
1. Pull the release latch.
2. Slide the height adjuster down.
Courtesy of FORD MOTOR COMPANY

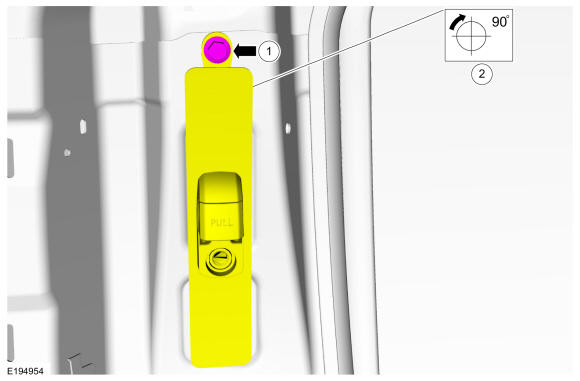

Position the height adjuster.
1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Rotate the height adjuster.
Courtesy of FORD MOTOR COMPANY

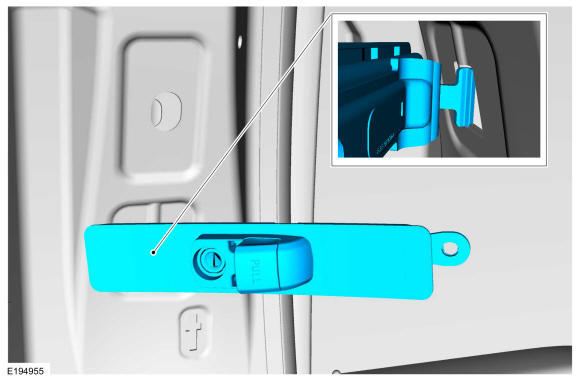

Detach the lower tab and remove the height adjuster.

Courtesy of FORD MOTOR COMPANY
