Rear Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Remove the load space trim panel. Refer to: Loadspace Trim Panel .

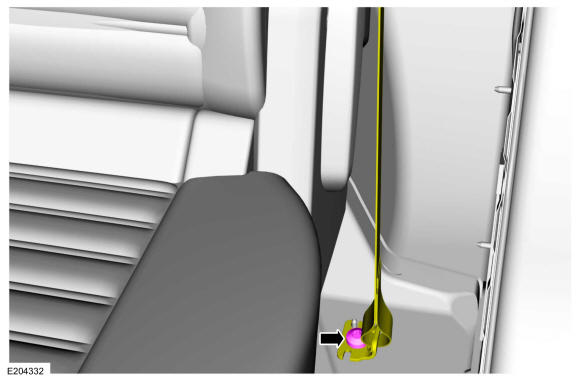

Remove the bolt and position the seatbelt aside.
Torque: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

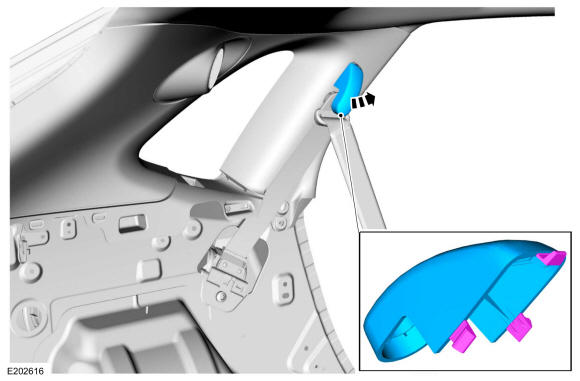

Release the clips and remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY

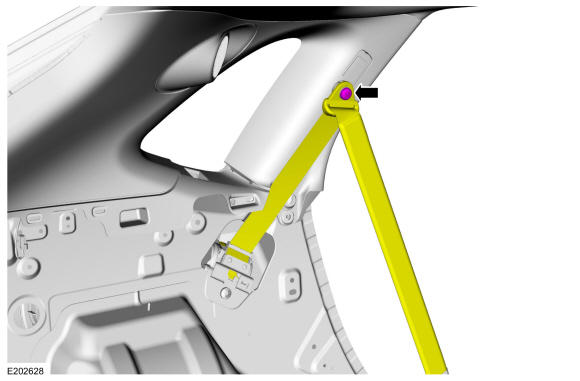

Remove the D-ring bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

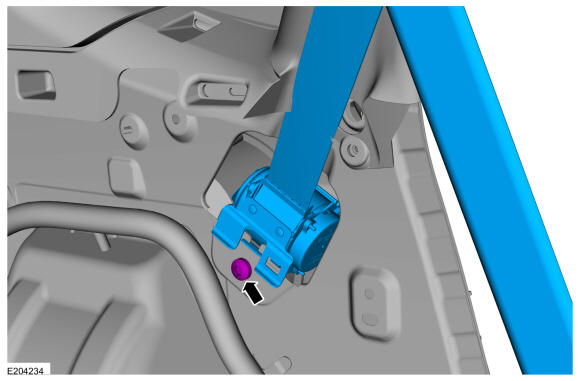

Remove the bolt and the seatbelt retractor.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
