Rear Seatbelt Buckle RH - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH rear seat backrest. Refer to: Rear Seat Backrest .
NOTE: Support the seatbelt inflator to prevent the inflator from twisting during the removal or installation of the seatbelt buckle bolt. Failure to follow this instruction may result in damage to the seatbelt inflator.

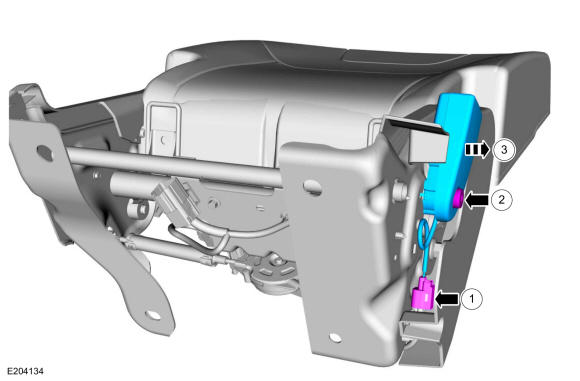

Remove the seatbelt buckle.
1. Disconnect the electrical connector.
2. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
3. Remove the seatbelt buckle.
