Rear Outer Seatbelt Inflator RH - Vehicles With: Inflatable Seatbelts: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH rear seatbelt buckle. Refer to: Rear Seatbelt Buckle RH - Vehicles With: Inflatable Seatbelts .

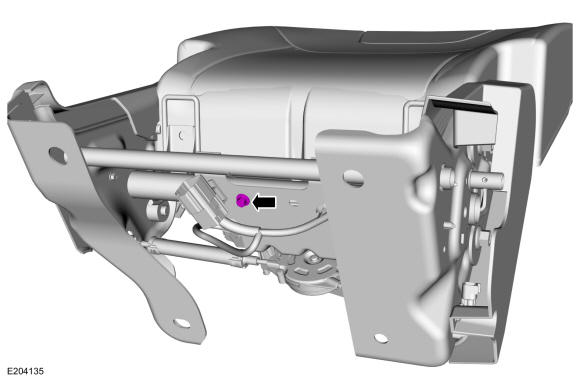

- Remove the seatbelt inflator bracket bolt.
Torque: 31 lb.in (3.5 Nm)

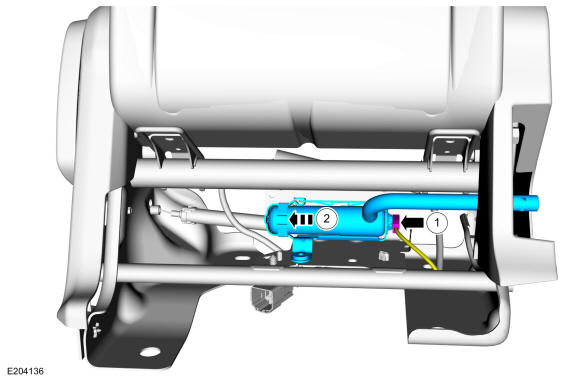

- Remove the seatbelt inflator.
- Disconnect the electrical connector.
- Remove the seatbelt inflator.
