Rear Center Seatbelt Retractor: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

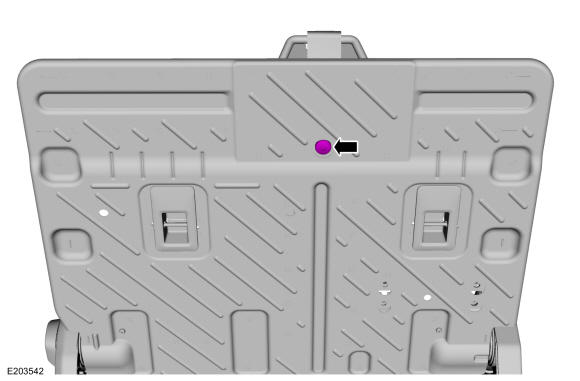

- Remove the LH rear seat backrest cover. Refer to: Rear Seat Backrest Cover .
- Remove the backrest foam.

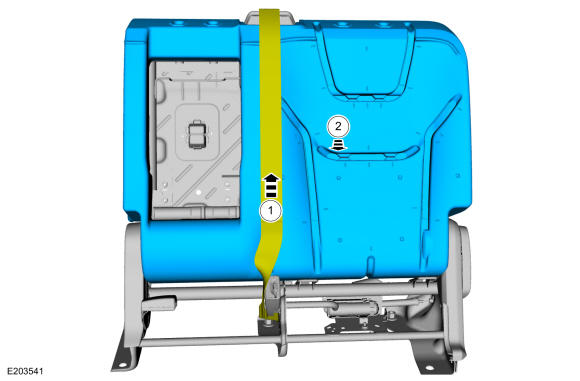

- Position the seatbelt.
- Remove the foam.

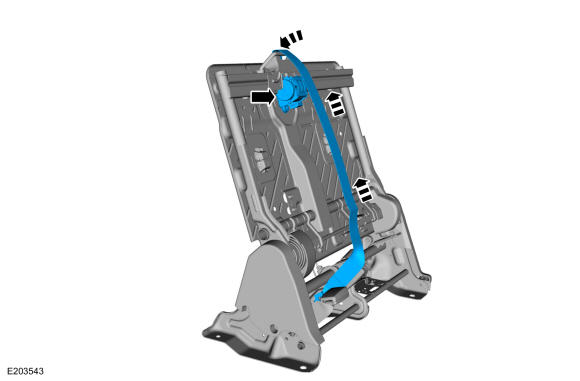

- Remove the seatbelt retractor bolt.
Torque: 30 lb.ft (40 Nm)
- Remove the seatbelt retractor while feeding the seatbelt through the guide.
