Rear Center Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

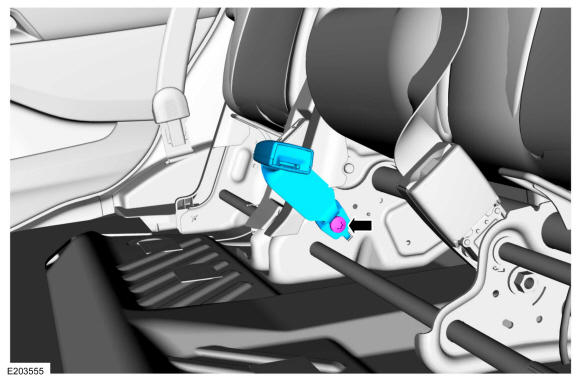

  2. Remove the bolt and the rear center seatbelt buckle.

    Torque: 35 lb.ft (47.5 Nm)

GFD283821Courtesy of FORD MOTOR COMPANY
