Front Seatbelt Retractor and Pretensioner: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the B-pillar lower trim panel. Refer to: B-Pillar Trim Panel .
Remove the seatbelt guide bolt.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

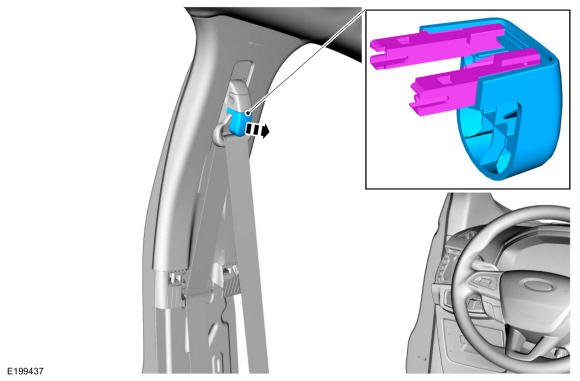

Release the clips and remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY
Remove the D-ring bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

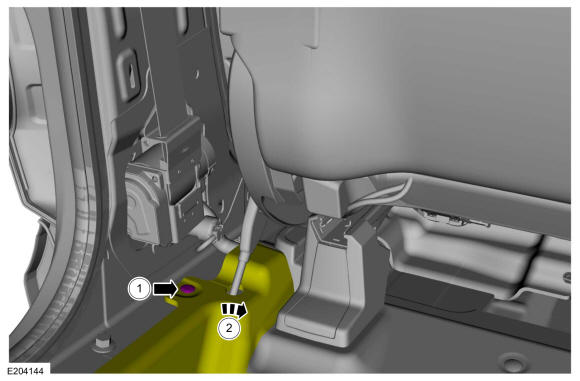

Position the carpet to access the seatbelt anchor and pretensioner.
1. Remove the pin-type retainer.
2. Position the carpet.
Courtesy of FORD MOTOR COMPANY
NOTE: Carpet shown removed for clarity.

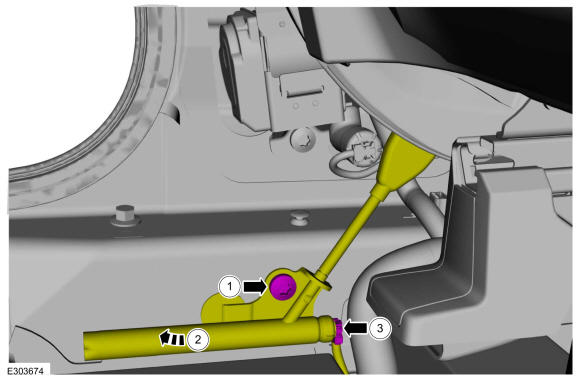

Position the seatbelt anchor and pretensioner.
1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Position the anchor to access the electrical connector.
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

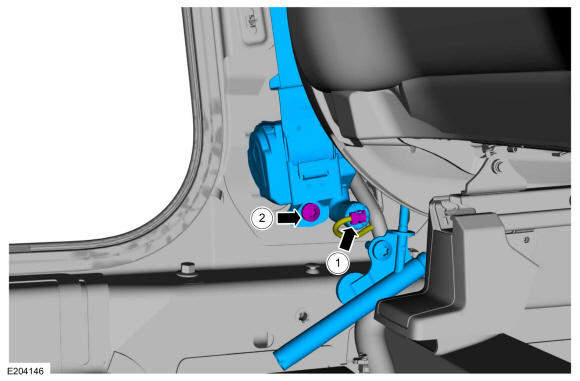

Remove the seatbelt belt retractor and pretensioner.
1. Disconnect the electrical connector.
2. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
