Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat. Refer to: Front Seat .

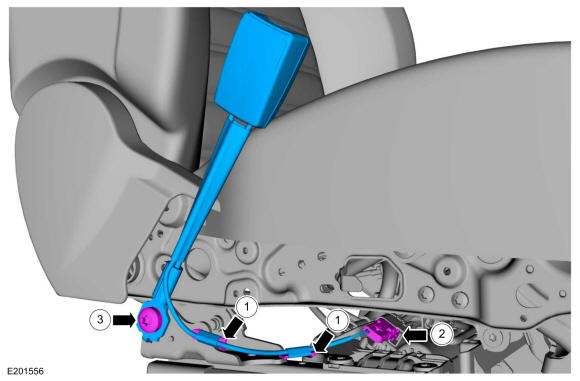

Remove the front seatbelt buckle.
1. Release the wire harness retainers.
2. Disconnect the electrical connector.
3. Remove the bolt and the seatbelt buckle.
  Torque: 26 lb.ft (35 Nm)
