Rear Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the outer rear lamp assemblies. Refer to: Rear Lamp Assembly .
  2. Remove the rear wheel and tire assemblies. Refer to: Wheel and Tire .
  3. NOTE: On both sides.

    Remove the inner wheel liner to rear bumper cover screws.

    GFD283774Courtesy of FORD MOTOR COMPANY
  4. NOTE: On both sides.

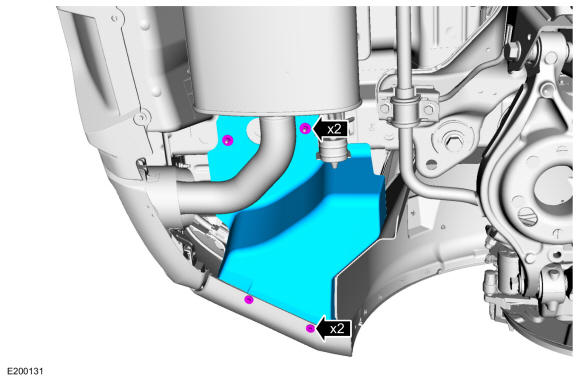

    Remove the nuts, push pins and the rear bumper cover shield.

    GFD283775Courtesy of FORD MOTOR COMPANY
  5. Disconnect the rear bumper harness.
    GFD283776Courtesy of FORD MOTOR COMPANY
  6. Remove the rear center bumper cover shield screws.
    GFD283777Courtesy of FORD MOTOR COMPANY
  7. Remove the rear bumper cover.

    1. Release the rear bumper cover from the rear bumper cover brackets.
    2. Separate the rear bumper cover from the vehicle body.

GFD283778Courtesy of FORD MOTOR COMPANY
