Front Bumper: Removal

All vehicles

1. Remove the front bumper cover. Refer to: Front Bumper Cover .
2. Remove the ambient air temperature sensor.
   1. Disconnect the ambient air temperature sensor electrical connector.
   2. Separate the ambient air temperature sensor from the lower air deflector.

   Courtesy of FORD MOTOR COMPANY

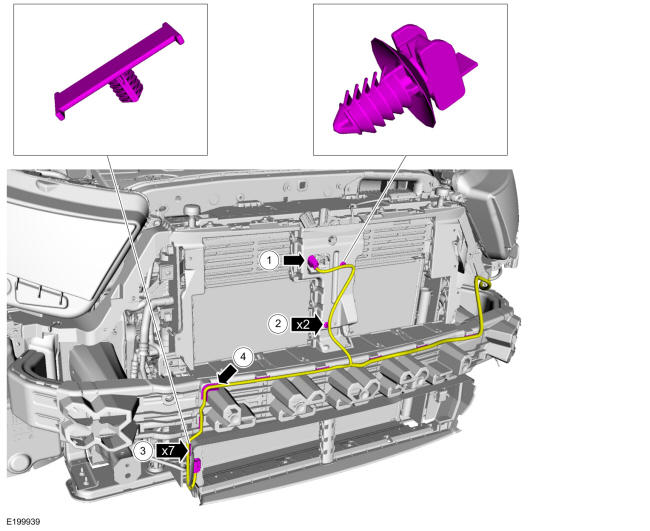

3. Position the front bumper wiring harness aside.
   1. Disconnect the hood latch electrical sensor.
   2. Separate the hood latch wiring harness guides.
   3. Separate the front bumper wiring harness guides.
   4. Separate the front bumper wiring harness channel.

   Courtesy of FORD MOTOR COMPANY

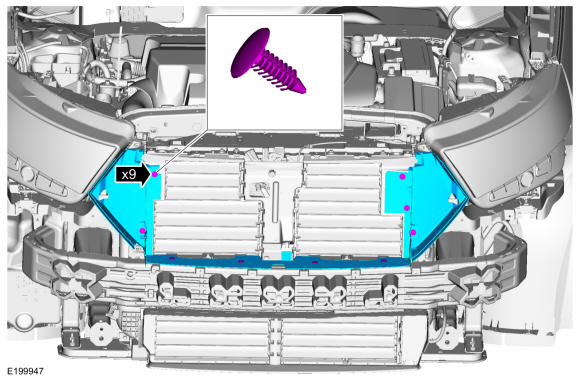

4. NOTE: Vehicle with active grille shutters shown, others are similar.

   Remove the push pins and the radiator air deflectors.

   Courtesy of FORD MOTOR COMPANY

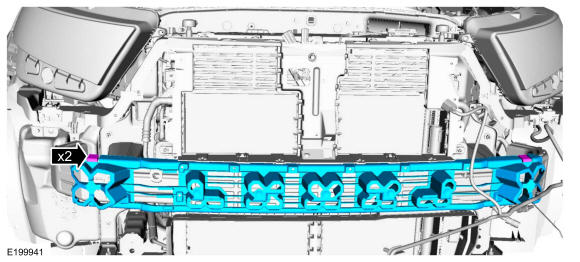

5. Remove the front bumper energy absorber.

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with active grille shutter

6. Remove the active grille shutter assembly. Refer to: ACTIVE GRILLE SHUTTER .

   Vehicles not equipped with active grille shutters

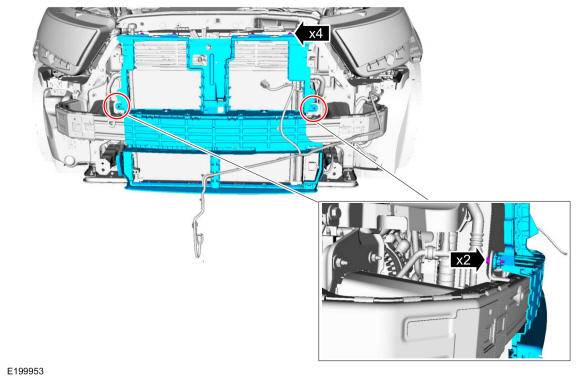

7. Remove the grille opening panel.

   Torque

   : Upper grille opening panel bolts: 42 lb.in (4.8 Nm) Lower grille opening panel bolts : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

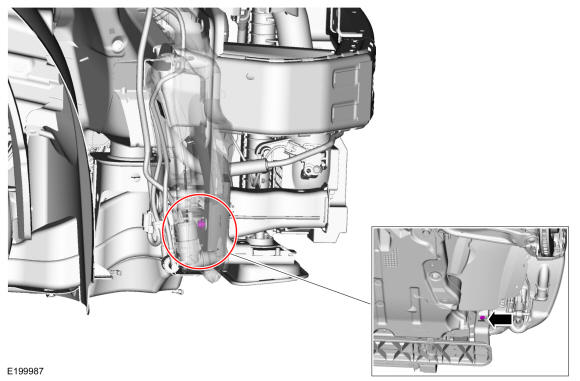

8. Remove the lower washer reservoir bolt.

   Torque

   : 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

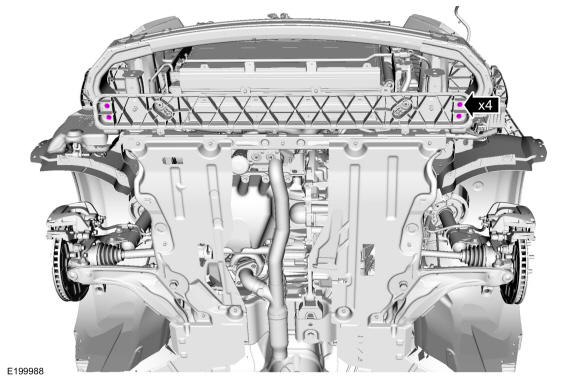

9. Support the lower radiator support.
10. Remove the bolts from the lower radiator support.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Lower the lower radiator support for clearance to the front bumper.

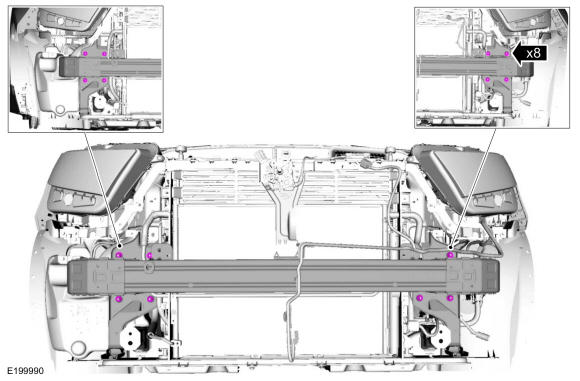

12. Remove the front bumper nuts.

    Torque

    : 17 lb.ft (22.5 Nm)

    Courtesy of FORD MOTOR COMPANY

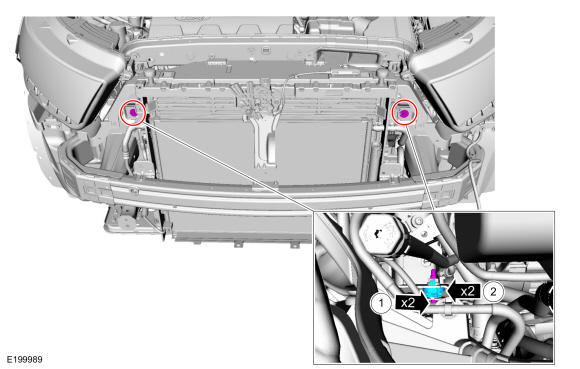

13. Remove the front bumper adjuster assemblies.
    1. Remove the front bumper adjuster bolts.

       Torque

       : 177 lb.in (20 Nm)

    2. Remove the front bumper adjusters.

    Courtesy of FORD MOTOR COMPANY

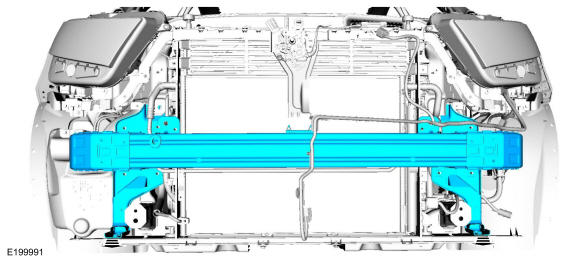

14. Remove the front bumper.

Courtesy of FORD MOTOR COMPANY
