Front Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front wheel and tire assemblies. Refer to: Wheel and Tire .

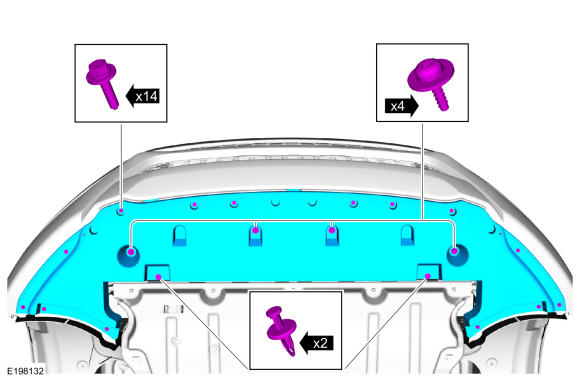

Remove the bolts, the screws, the push pins and the front underbody shield.
Torque

: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

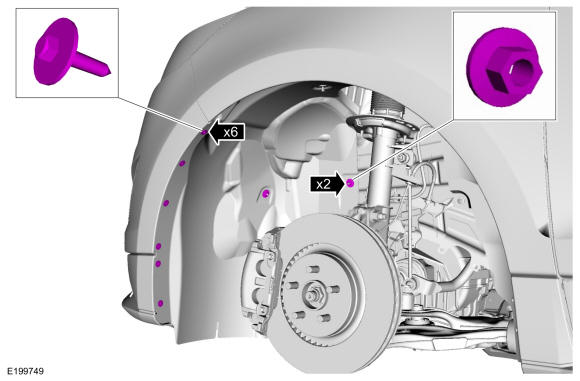

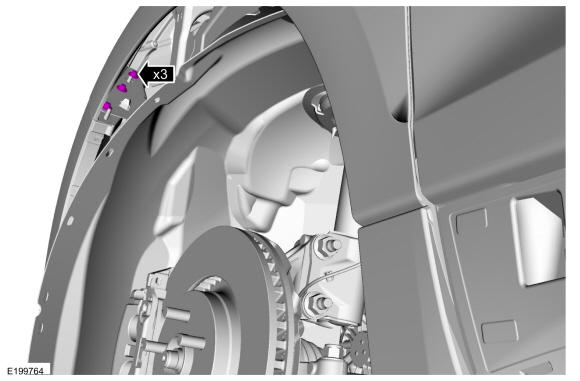

On both sides. Remove the screws and nuts from the front of the fender liner.
Torque

: Fender liner screws: 13 lb.in (1.5 Nm) Fender liner nuts: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

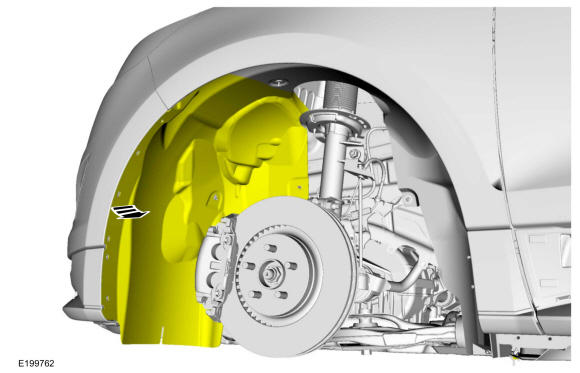

On both sides. Position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

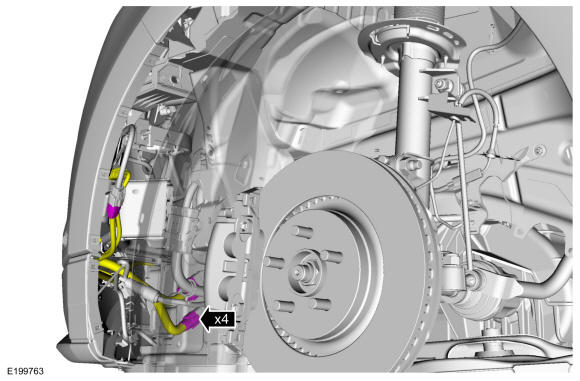

Disconnect the front bumper cover wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY

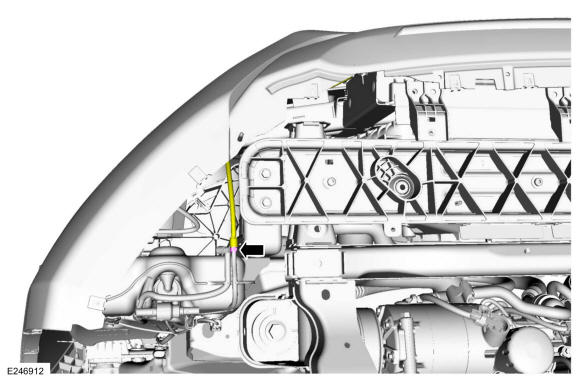

If equipped. Disconnect the front camera washer hose.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the front bumper cover bracket bolts.
Torque

: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers and the radiator sight shield.

Courtesy of FORD MOTOR COMPANY

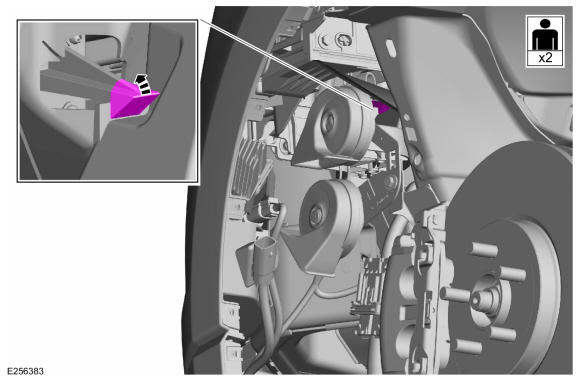

With the help of an assistant, on both sides. Release the tab.

Courtesy of FORD MOTOR COMPANY

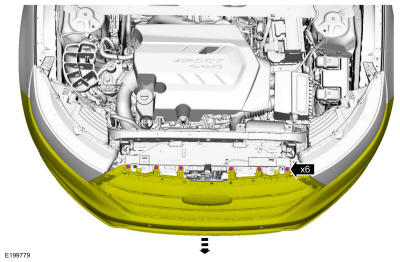

Remove the bolts and position the front bumper cover forward.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

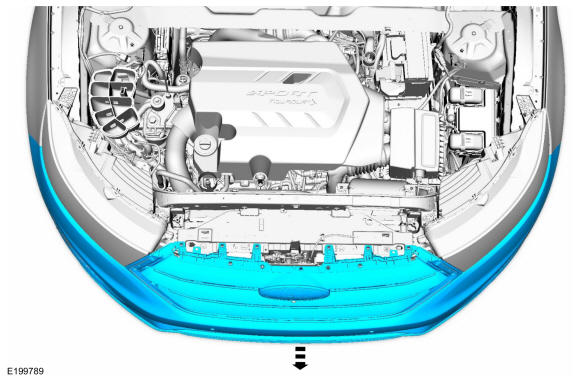

Remove the front bumper cover.

Courtesy of FORD MOTOR COMPANY
