Rear Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the rear bumper cover. Refer to: Rear Bumper Cover .
Vehicles equipped with foot operated liftgate

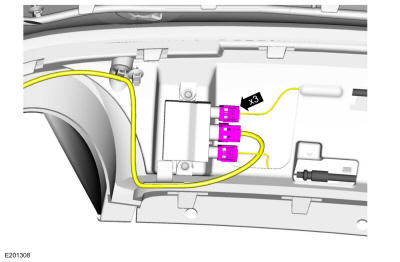

Disconnect the liftgate module electrical connectors.

Courtesy of FORD MOTOR COMPANY

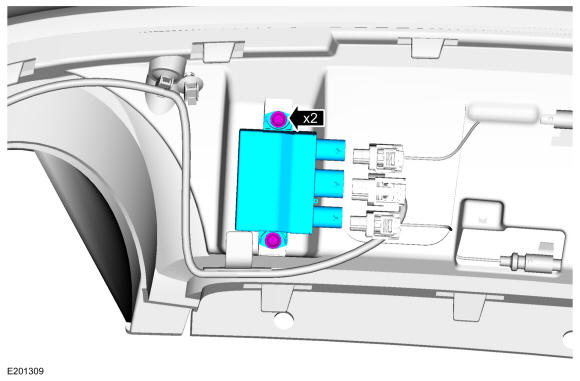

Remove the screws and the liftgate module.

Courtesy of FORD MOTOR COMPANY

All vehicles

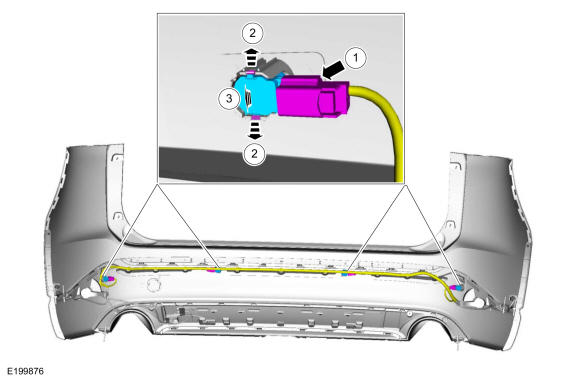

Remove the rear park aid sensor.
1. Disconnect the rear park aid sensor electrical connector.
2. Release the tabs.
3. Remove the park aid sensor from the bracket.
Courtesy of FORD MOTOR COMPANY

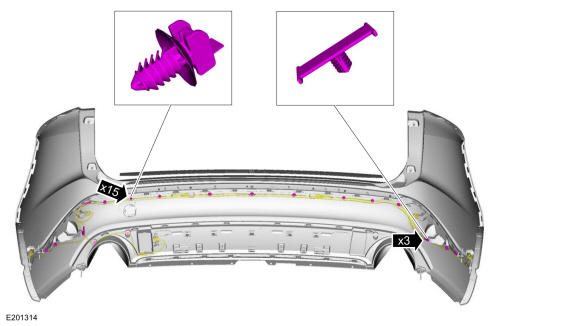

Separate the harness guides and remove the rear bumper cover harness.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with sport package

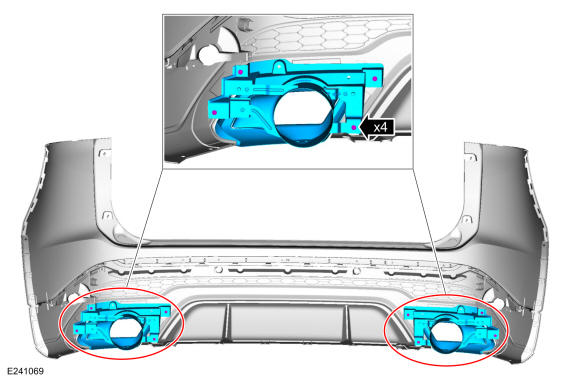

Remove the screws and the exhaust bezels.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with foot operated liftgate

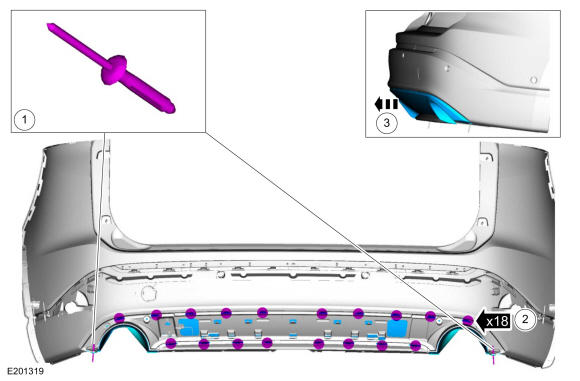

Remove the lower rear bumper cover.
1. Remove the rivets.
2. Release the tabs.
3. Separate the lower rear bumper cover from the center rear bumper cover.
Courtesy of FORD MOTOR COMPANY

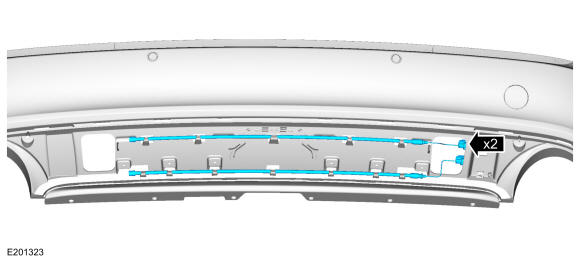

Remove the foot operated liftgate antennas.

Courtesy of FORD MOTOR COMPANY

All vehicles

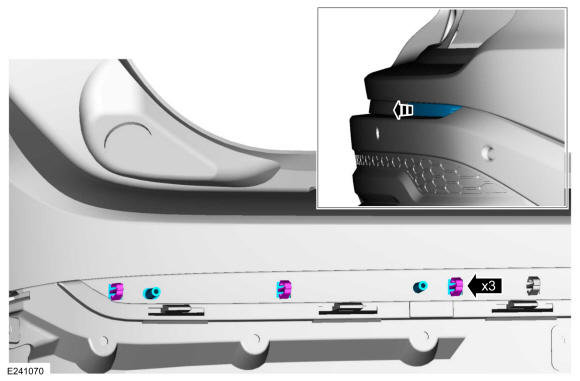

On both sides. Release the tabs and remove the outer reflector.

Courtesy of FORD MOTOR COMPANY

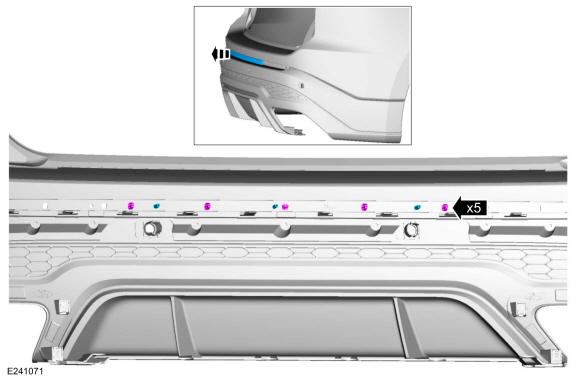

Release the tabs and remove the center reflector.

Courtesy of FORD MOTOR COMPANY

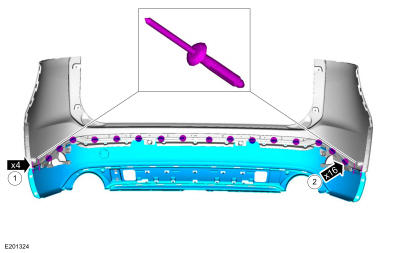

Remove the center rear bumper cover.
1. Remove the rivets.
2. Release the tabs.

Courtesy of FORD MOTOR COMPANY
