Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

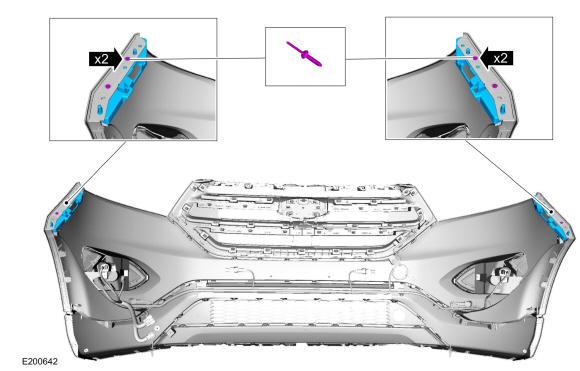

  2. Remove the rivets and the front bumper brackets.
    GFD283779Courtesy of FORD MOTOR COMPANY

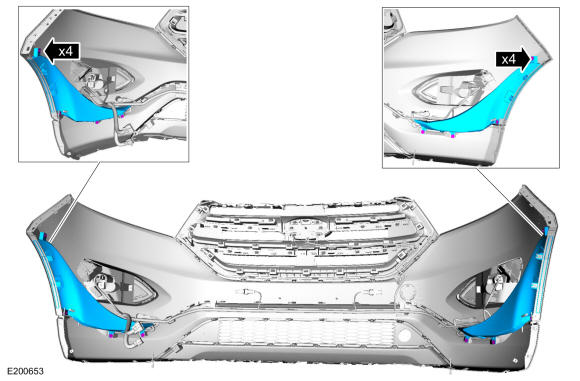

  3. Remove the screws and the air deflectors.
    GFD283780Courtesy of FORD MOTOR COMPANY

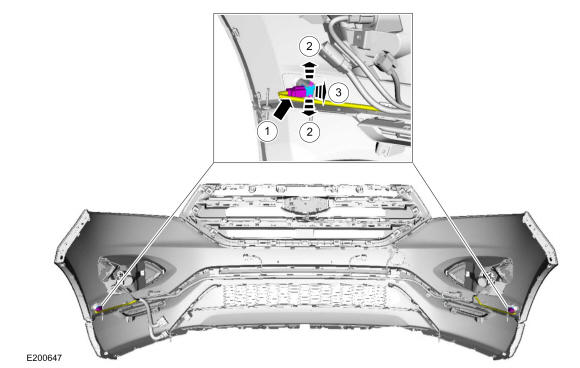

  4. Remove the front active park assist sensors.

    1. Disconnect the active park assist sensor electrical connectors.
    2. Release the tabs.
    3. Remove the front active park assist sensors.

    GFD283781Courtesy of FORD MOTOR COMPANY

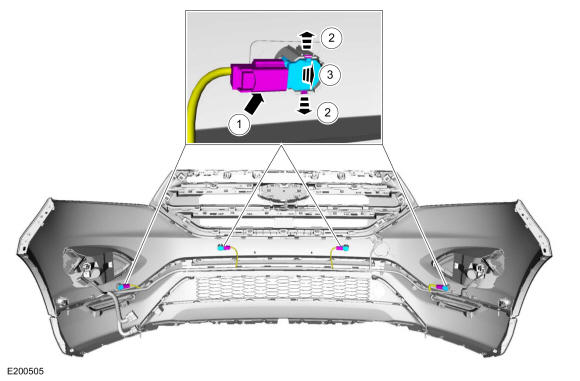

  5. Remove the front parking aid sensors.

    1. Disconnect the front parking aid sensor electrical connectors.
    2. Release the tabs.
    3. Remove the front parking aid sensors.

    GFD283782Courtesy of FORD MOTOR COMPANY

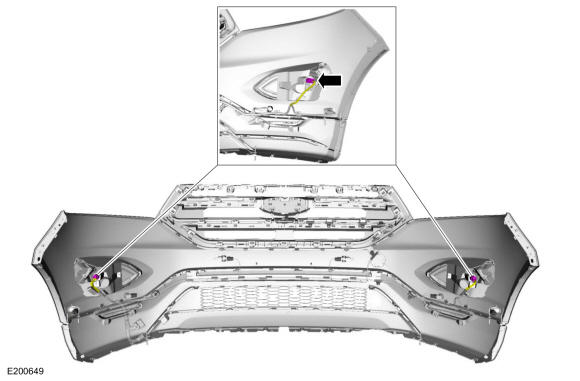

  6. Disconnect the fog lamp assembly electrical connectors.
    GFD283783Courtesy of FORD MOTOR COMPANY

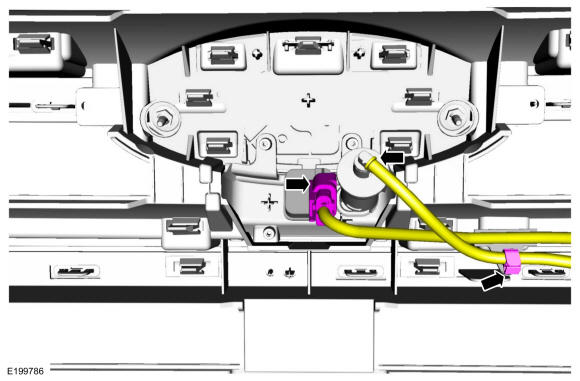

  7. If equipped. Disconnect the front camera electrical connector and the washer hose.
    GFD283784Courtesy of FORD MOTOR COMPANY

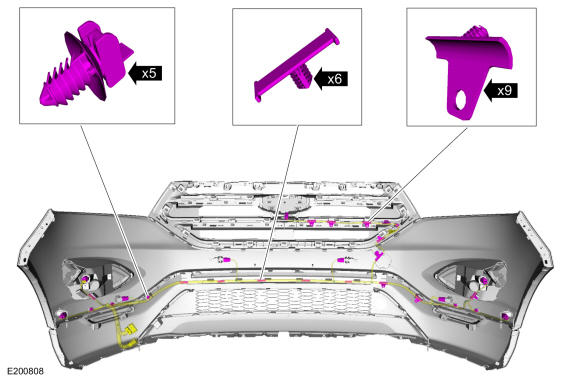

  8. Separate the harness guides and remove the front bumper cover harness.
    GFD283785Courtesy of FORD MOTOR COMPANY

    Vehicles with base trim package

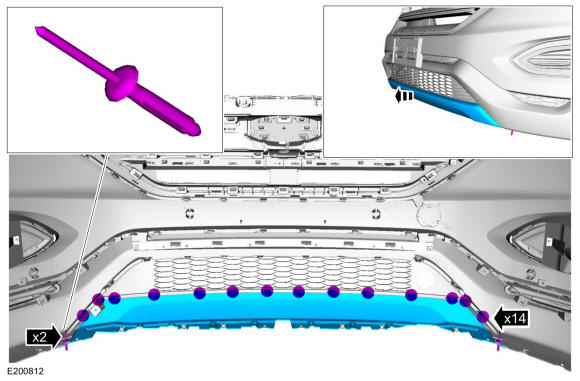

  9. Remove the rivets, separate the tabs and remove the lower front bumper cover panel.
    GFD283786Courtesy of FORD MOTOR COMPANY

    Vehicles with premium trim package

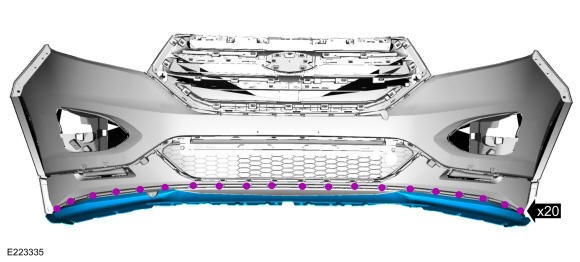

  10. Separate the tabs and remove the lower front bumper cover panel.
    GFD283787Courtesy of FORD MOTOR COMPANY

    All vehicles

  11. NOTE: On both sides.

    Remove the fog lamp bezel.

    1. Remove the screws.
    2. Release the tabs.
    3. Separate the fog lamp bezel from the upper front bumper cover.

    GFD282825Courtesy of FORD MOTOR COMPANY

    Vehicles with base trim package

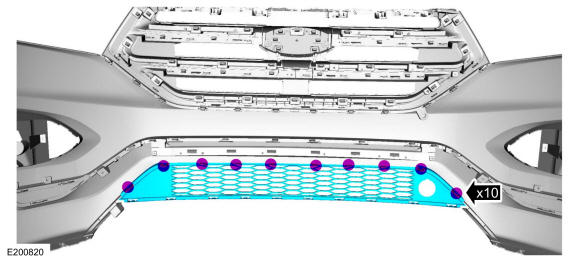

  12. Release the tabs and remove the lower radiator grille.
    GFD283788Courtesy of FORD MOTOR COMPANY

    Vehicles with premium trim package

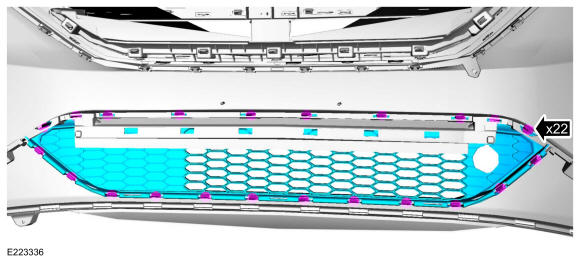

  13. Release the tabs and remove the lower radiator grille.
    GFD283789Courtesy of FORD MOTOR COMPANY

    All vehicles

  14. NOTE: On both sides.

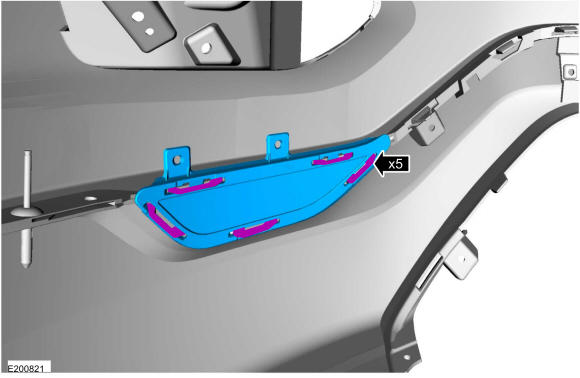

    Release the tabs and remove the front bumper insert.

    GFD283790Courtesy of FORD MOTOR COMPANY
  15. NOTE: Base trim package shown, premium trim package is similar.

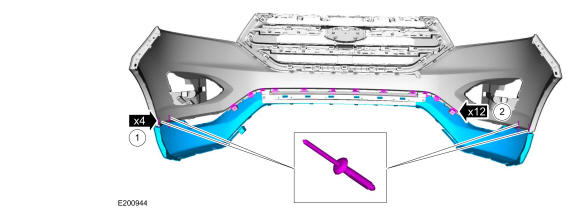

    Remove the center bumper cover panel.

    • Remove the rivets.

    • Release the tabs.

    GFD283791Courtesy of FORD MOTOR COMPANY
  16. NOTE: On both sides.

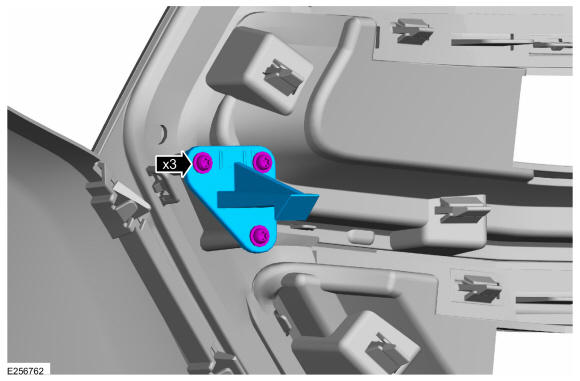

    Remove the screws and the radiator grill assembly to grill reinforcement fixing.

    GFD283792Courtesy of FORD MOTOR COMPANY

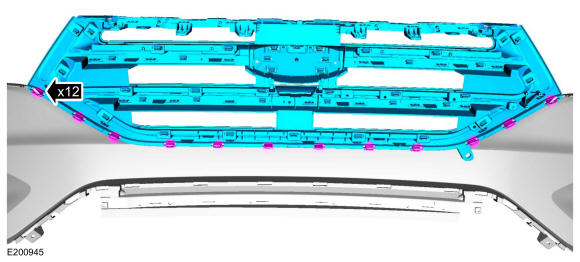

  17. Release the tabs and remove the upper radiator grille.
GFD283793Courtesy of FORD MOTOR COMPANY
