Roof Opening Panel Shield: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE: Make sure the roof opening panel shield guide strip is routed into the guide clip correctly or damage to the roof opening panel components may occur.NOTE: RH side shown, LH side similar.

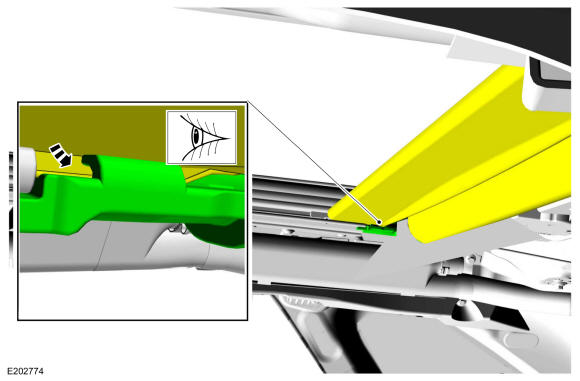

On both sides. When attaching the roof opening shield crossbar to the shield drive cable mechanisms, route the roof opening panel shield guide strip under the guide clip.
