Roof Opening Panel Motor Block and Drive Tube Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

On both sides, remove the main track assemblies. Refer to: Main Track Assembly .

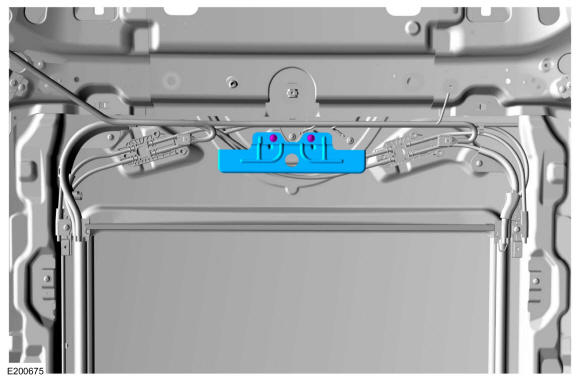

Remove the 2 retainers and the headliner support bracket.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

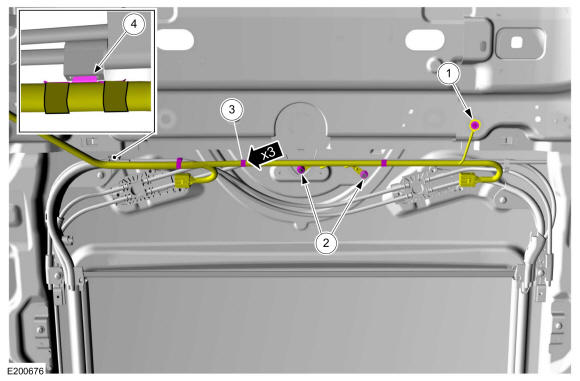

Reposition the wiring harness for access.
1. Remove the ground wire retaining bolt.
  Torque: 44 lb.in (5 Nm)
2. Remove the 2 ground wire retainers.
  Torque: 44 lb.in (5 Nm)
3. Disconnect the 3 wiring harness retaining clips.
4. Disconnect the wiring harness to motor drive block biter type clip.
Courtesy of FORD MOTOR COMPANY

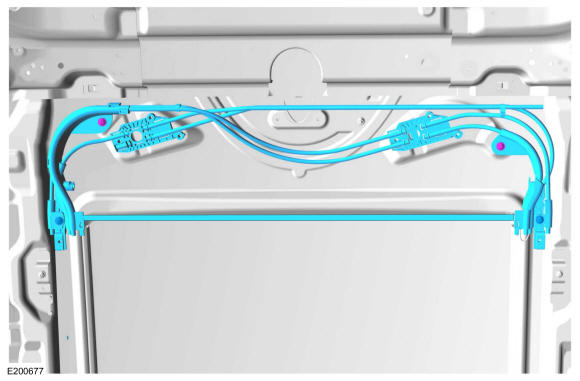

Remove the 2 roof opening panel motor block and drive tube assembly retainers and remove the assembly.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
