Roof Opening Panel Glass: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

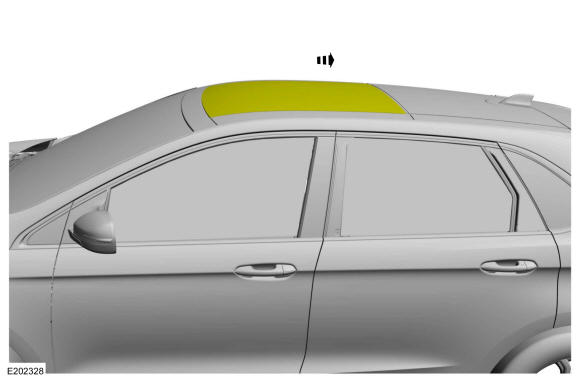

Open the roof opening panel.

Courtesy of FORD MOTOR COMPANY

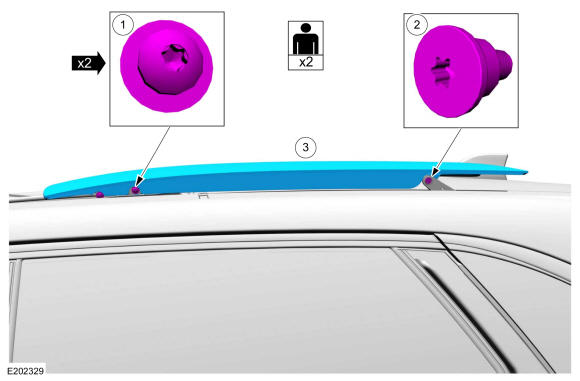

On both sides, with the help of an assistant Remove the roof opening panel glass.
1. Remove the roof opening panel glass front retainers.
  Torque: 66 lb.in (7.5 Nm)
2. Remove the roof opening panel glass rear retainers.
  Torque: 66 lb.in (7.5 Nm)
3. Remove the roof opening panel glass from the vehicle.

Courtesy of FORD MOTOR COMPANY
