Roof Opening Panel Frame: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional material guidelines, refer to the manufacturer's installation information.

Install the rear spoiler. Refer to: Rear Spoiler .
NOTE: Avoid scratching the painted surfaces. Repair all minor scratches or exposed metal following manufacturer's instructions. Use the same brand pinch weld primer, glass primer and urethane adhesive.

Prepare the urethane path on the vehicle for primer application.
1. NOTE: Maximum 2 mm (0.08 in) bead thickness.

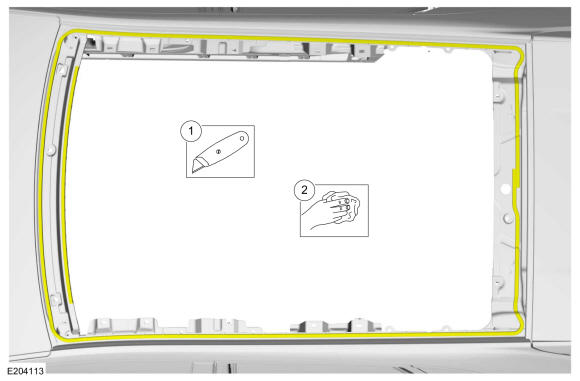

  Using a knife, trim the urethane path on the vehicle. Use the General Equipment: Knife
2. NOTE: Touching the adhesive surface will impair rebonding.

  NOTE: Make sure that the mating faces are clean and free of foreign material

  Using the specified cleaner, clean the urethane path on the vehicle.

  Material: Bare Metal Etch Primer / BETAPRIME 5201
Courtesy of FORD MOTOR COMPANY
NOTE: Be sure to use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and primer. For additional information, refer to the Material Chart in this procedure.

Prepare the urethane path on the vehicle for priming.

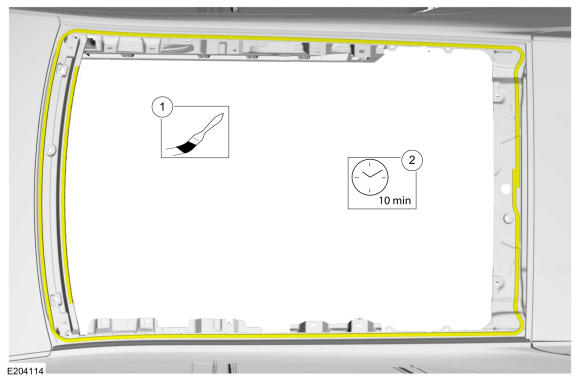

1. Using a clean soft brush, apply the specified material to the urethane path.
  Material: Sika Urethane Metal and Glass Primer / Sika 206 G+P
2. Allow 10 minutes drying time for the primer.
Courtesy of FORD MOTOR COMPANY
NOTE: Be sure to use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and primer. For additional information, refer to the Material Chart in this procedure.

Prepare the urethane path on the new roof opening panel frame.

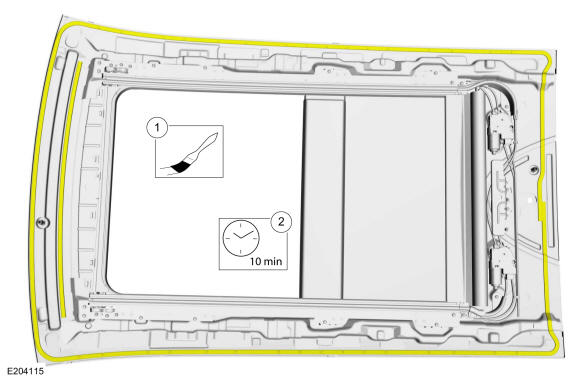

1. Using a clean soft brush, apply the specified material to the urethane path.
  Material: Sika Urethane Metal and Glass Primer / Sika 206 G+P
2. Allow 10 minutes drying time for the primer.
Courtesy of FORD MOTOR COMPANY

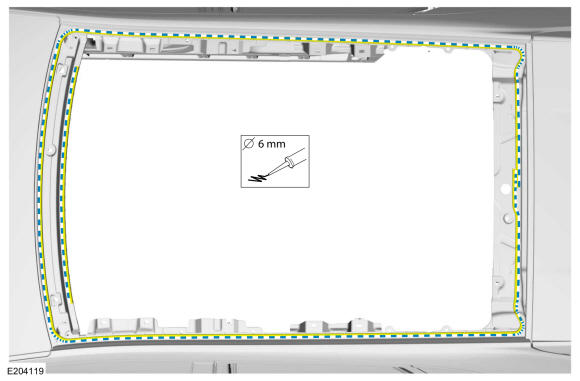

Cut the urethane adhesive applicator tip as specified.
Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
The new urethane adhesive bead must be 8 mm (0.31 in) high and 6 mm (0.24 in) wide.
Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
NOTE: Use either a high-ratio, electric or battery-operated caulk gun that will apply the urethane adhesive with less effort and continuous bead using the existing trimmed urethane adhesive as a guide.

Material: Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express

Material: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY

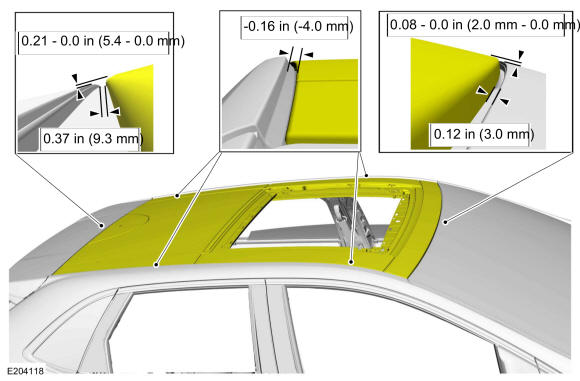

Familiarize with the clearance specifications as shown before installing the roof opening panel frame.

Courtesy of FORD MOTOR COMPANY
WARNING: Improper curing of the urethane adhesive may adversely affect glass retention, which is important for restraint system performance during a crash. Carefully follow the urethane adhesive manufacturer's curing instructions. Do not drive the vehicle until the urethane adhesive seal has cured. Failure to follow these instructions may result in serious injury to vehicle occupant(s) during a crash.

NOTE: The door windows must be left open during the adhesive curing time.

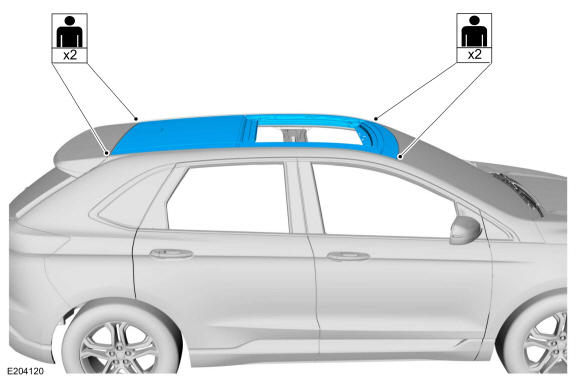

With the help of 3 assistants, install the roof opening panel frame, centering and setting height as noted in the previous step.

Courtesy of FORD MOTOR COMPANY
Reposition the necessary wiring harness's as when removed.

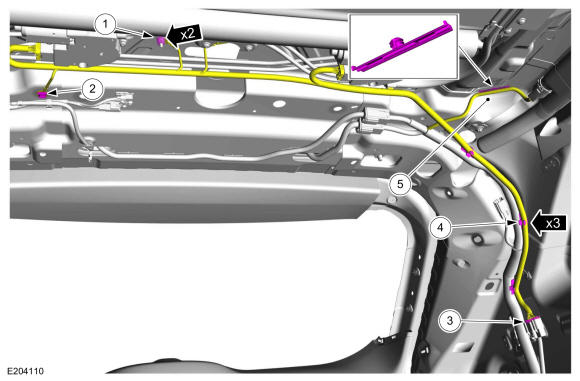

1. Position the roof opening panel harness and install the 2 roof opening panel jumper harness ground wire nuts.
  Torque: 44 lb.in (5 Nm)
2. Install the roof opening panel jumper harness ground wire bolt.
  Torque: 177 lb.in (20 Nm)
3. Connect the roof opening panel jumper harness connector to the vehicle harness.
4. Attach the jumper harness to the retaining clips.
5. On both sides. Position and attach the side curtain air bag wiring harness routing clip to the vehicle body.
Courtesy of FORD MOTOR COMPANY
Install all 5 roof opening panel exterior trim panels. Refer to: Roof Opening Panel Side Trim . Refer to: Roof Opening Panel Front Trim .
Install the antenna. Without touchscreen, refer to: Satellite Radio Antenna . With touchscreen, refer to: Satellite Radio Antenna . With Sony, Refer to: Satellite Radio Antenna .
Install the headliner. Refer to: Headliner .

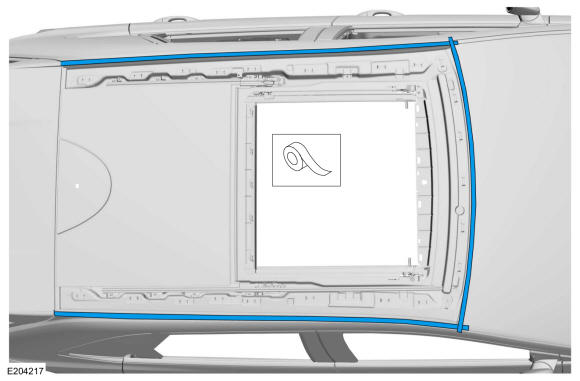

Remove the masking tape.

Courtesy of FORD MOTOR COMPANY
Install the roof opening panel sliding glass. Refer to: Roof Opening Panel Glass .
