Roof Opening Panel Center Beam Trim: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

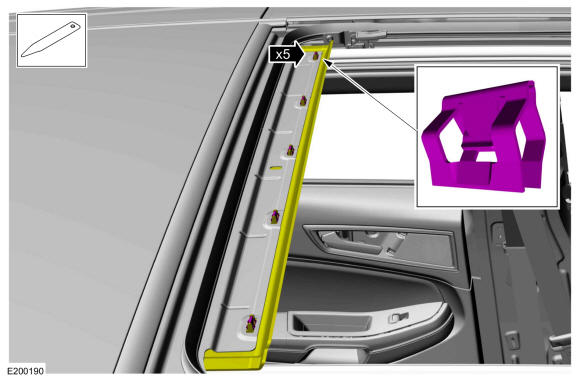

  2. Pry at each clip area to release the roof opening panel center beam trim front retainers.
    GFD283695Courtesy of FORD MOTOR COMPANY

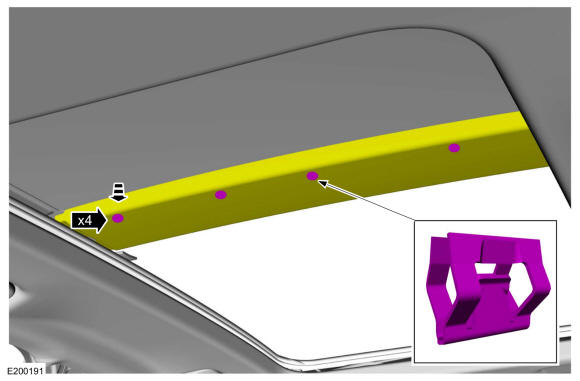

  3. Pull down on the roof opening panel center beam trim at the clip areas to release the roof opening panel center beam trim rear retainers.
    GFD283696Courtesy of FORD MOTOR COMPANY

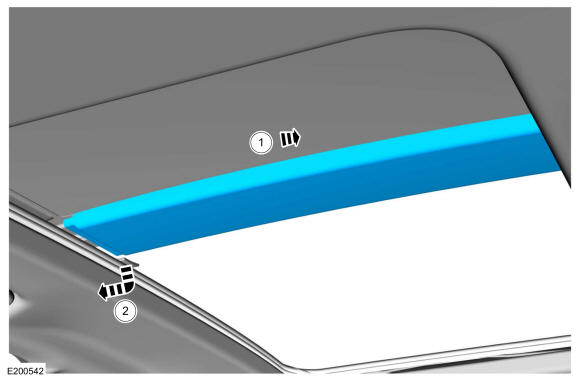

    1. Move the roof opening panel center beam trim to the RH side of the vehicle.
    2. Pull down and outward on the LH side to remove the roof opening panel center beam trim.
GFD283697Courtesy of FORD MOTOR COMPANY
