Rear Lifter Arm: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
Remove the rear side trim on the side of the repair. Refer to: Roof Opening Panel Side Trim .
NOTE: A new rear lifter arm comes fully assembled.

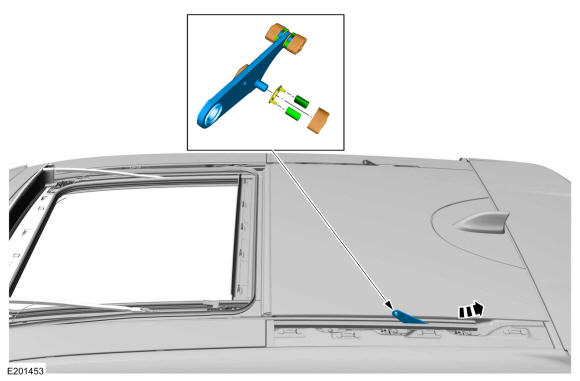

Slide the rear lifter arm out the back of the idler track assembly.

Courtesy of FORD MOTOR COMPANY
