Air Deflector: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY

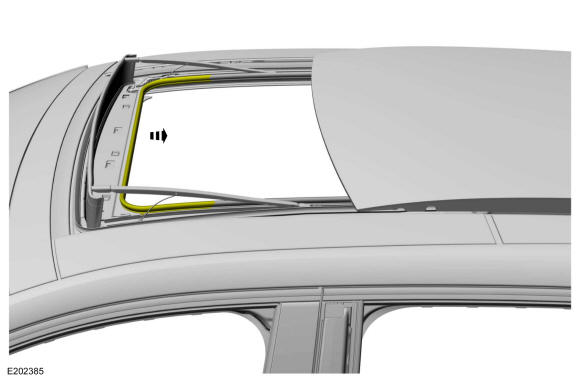

Disconnect the front of the acoustic seal and position aside for access.

Courtesy of FORD MOTOR COMPANY

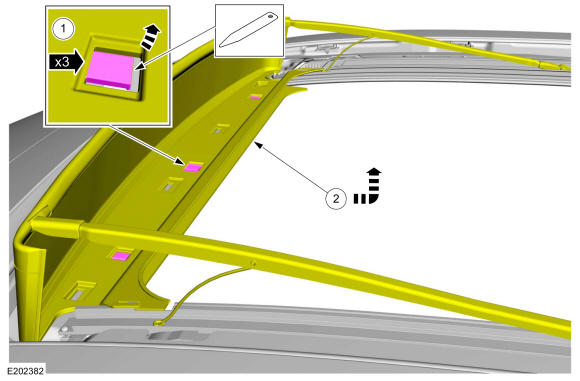

Disconnect the air deflector body from the roof opening panel frame.
1. Release the locking tabs. Use the General Equipment: Interior Trim Remover
2. Slide the air deflector body rearward and up to disconnect the air deflector body.
Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

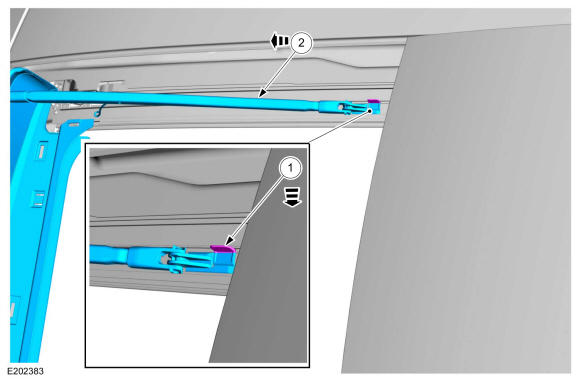

On both sides. Remove the air deflector.
1. Press the locking tab inward to release the air deflector arm.
2. Slide the air deflector arm forward out of the frame rail to remove the air deflector.

Courtesy of FORD MOTOR COMPANY
