Air Deflector: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH side shown, LH side similar.

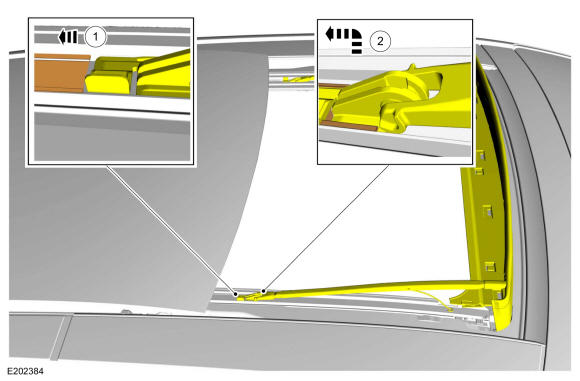

On both sides. Connect the air deflector arms.
1. Position the air deflector in the main track and slide rearward.
2. Lift on the air deflector arm and slide rearward to lock into position.
Courtesy of FORD MOTOR COMPANY

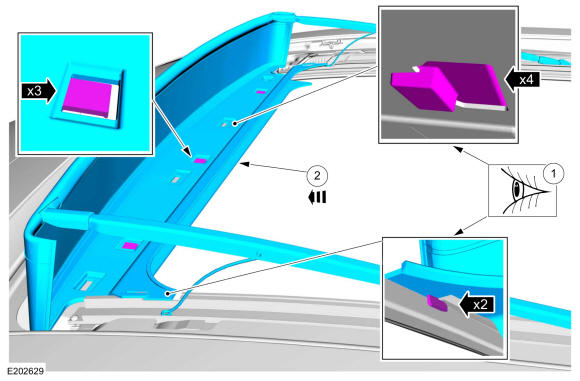

Install the air deflector body.
1. From inside the vehicle. Position the air deflector alignment tabs.
2. NOTE: Make sure all alignment tabs are properly located and clips are snapped in place.

  Slide the air deflector body onto the frame.
Courtesy of FORD MOTOR COMPANY

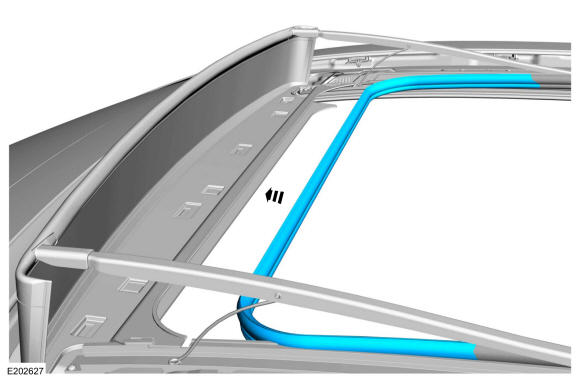

Attach the acoustic seal.

Courtesy of FORD MOTOR COMPANY
Carry out the roof opening panel initialization. Refer to: Power Roof Opening Panel Initialization .
