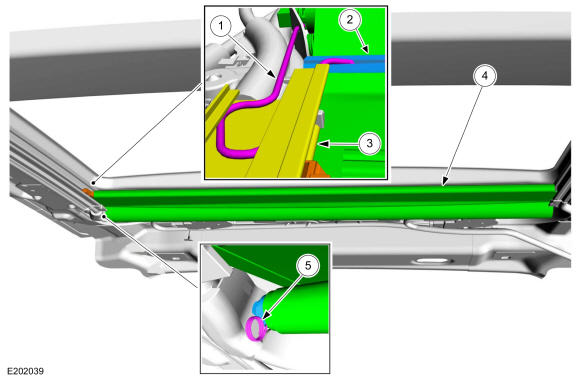

Roof Opening Panel Shield
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Electrostatic Discharge (ESD) wire |
| 2 |
Shield tension bar (PIA to roof opening panel motor block and drive tube assembly) |
| 3 |
Main track assembly |
| 4 |
Roof opening panel shield |
| 5 |
Shield tension retaining pin (Shield is pre-loaded on service assembly) |
