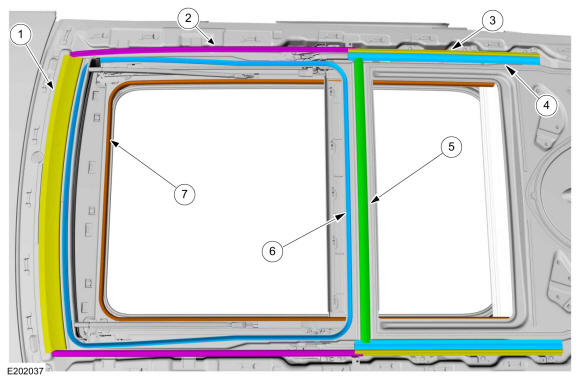

Roof Opening Panel Seals
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front seal |
| 2 |
Front side trim seal |
| 3 |
Rear side trim outer seal |
| 4 |
Rear side trim inner seal |
| 5 |
Fixed glass front seal |
| 6 |
Primary seal |
| 7 |
Acoustic seal |
