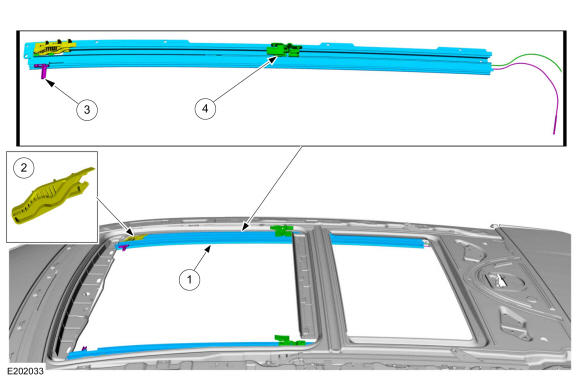

Main Track Assembly
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Main track assembly |
| 2 |
Main track front cam (Part In Assembly (PIA) to main track assembly) |
| 3 |
Shield cable and guide assembly (PIA to main track assembly) |
| 4 |
Roof opening panel cable and guide assembly (PIA to main track assembly) |
